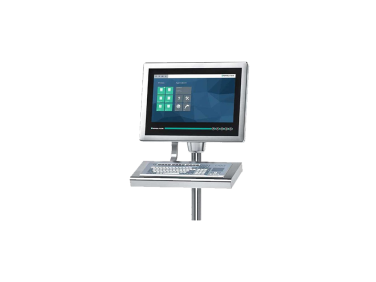

Pepperl+Fuchs VisuNet GXP PC Zone 1/21 (2020 Generation) PC-GXP1100-19S*
-
NG # 003402-HW-Pepperl-OO2
Manufactured by:

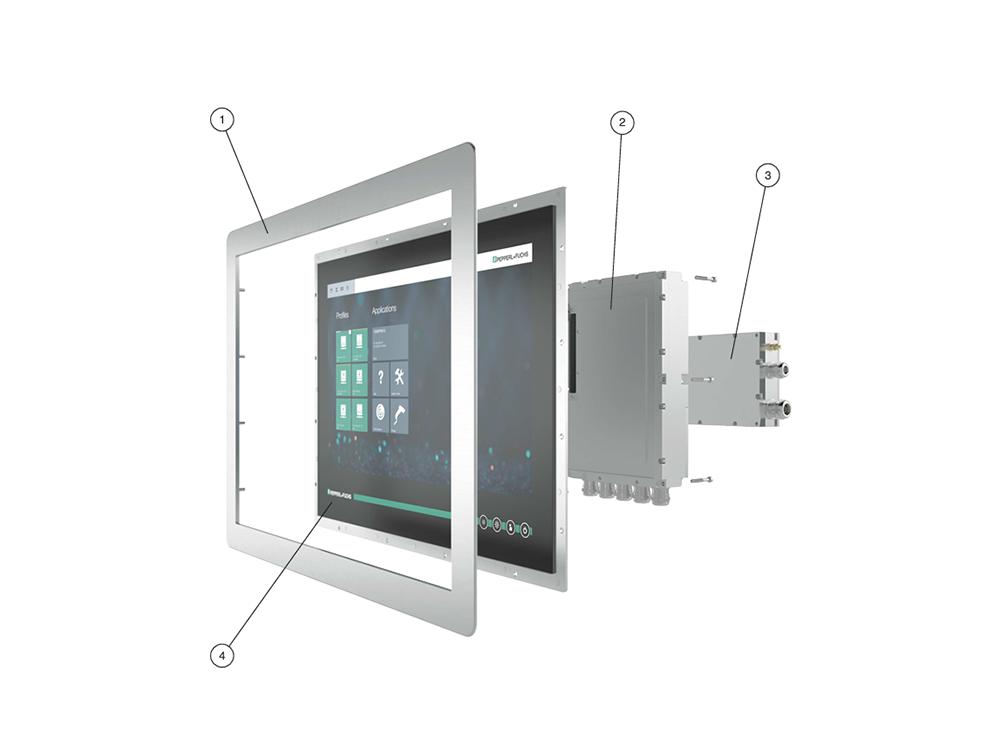

9 in (48 cm) display PC solution with pre-installed Windows® operating system Lightweight design Completely modular system for easy field maintainability Flush or bezel mounting options IP66 rating for each individual component and entire system with housing Certified for ATEX and IECEx Zone 1/21 UL listed for USA and Canada
Specification
Type Personal Computer Processor Intel® Atom Apollo Lake E3940 RAM 8 GB Mass storage 240 GByte industrial grade SSD optional: 480 GByte SSD
Power consumption
| AC | 115/230 V AC, 0.4 ... 0.7 A, 50/60 Hz |
| DC | 18 ... 36 V DC , 1.5 ... 3 A |
Display
| Type | Liquid Crystal Display (LCD) with LED backlight |
| Screen diagonal | 48.26 cm (19 inch) |
| Resolution | 1280 x 1024 (SXGA) , Aspect ratio 5:4 |
| Color depth | 24 bit (16.7 M) color |
| Contrast | 1000:1 |
| Brightness | 450 cd/m2 (nit) |
| Reading angle | 170° horizontal 160° vertical |
| Life span | back lamp life: 50.000 hrs typical half life , at 25 °C (77 °F) |
| Touchscreen | optional: projective capacitive; 10 finger multi-touch, glove friendly |
| Keyboard | Foil keyboard with different pointing device options available (see EXTA4 datasheet) |
Interface
| Interface type | Standard: 1 x Ethernet 100/1000BASE-TX (Ex e) or1 x fiber optic 1000BASE-SX (Multimode) or 1 x fiber optic 1000BASE-LX (Singlemode), 1 x USB 2.0 (Ex e), 2 x USB 1.1 (Ex i; intended for Pepperl+Fuchs keyboard and mouse), 1 x DC or AC power in (via power supply unit) Optional: "interface 3": 1 x barcode reader interface for wired 1-D scanners IDM-160-D*, IDM-Z1-160-D-* and base station IDMx61-B-* and IDM-Z1-x61-B-* (Ex i) "interface 4": 1 x barcode reader interface for wired 2-D Scanner IDM-Z1-260-D-* (Ex i) "interface 5": 1 x RS-232 interface with Power Supply for miscellaneous devices and peripherals (Ex i) 1 x RS-232 (Ex e) 1 x RS-485 (Ex e) 1 x Ethernet 100/1000Base-TX (Ex e) Bluetooth v4.0, communication distance up to 30 m in open terrain, transmission power +8 dBm, transmission frequency 2.402 ... 2.48 GHz |
Ambient conditions
| Operating temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Storage temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Relative humidity | 93% at 40°C, non-condensating, according to EN60068-2-78 |
| Altitude | Operating altitude max. 2000 m |
| Shock resistance | 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27 |
| Vibration resistance | 10 ... 150 Hz, +/- 0.075 mm , 1g, 10 cycles per axis according to EN60068-2-6 |
Mechanical specifications
| Degree of protection | IP66 (individual components and entire system with housing) |
| Material | Internal: Panel: anodized aluminum (TCU, PSU), powder coated aluminum (DPU) External: Bezel: stainless steel AISI 304 (1.4301) System housing: stainless steel AISI 304 (1.4301), bead blasted, typical surface roughness Ra = 1.6 µm |
| Installation | Flush-mount installation (requires customized mounting kit) Panel-mount installation into system housing with bezel Panel-mount installation into cabinet with Bezel and standard mounting kit |
| Mass | panel with DC: 22 kg , panel with AC: 23 kg , system housing AG1: 19 kg |
| Dimensions | panel with DC: 524 mm x 453 mm x 120 mm panel with AC: 524 mm x 453 mm x 137 mm panel with AG1 housing: 582 mm x 490 mm x 224 mm |
Description
The PC unit (PCU1100-*/PCU1200-*) is a hazardous-location rated computing unit that that runs a pre-installed Microsoft Windows operating system. The PC unit allows users to install individual software packages such as SCADA applications tovisualize and control their automation application.
