Analog-digital oscilloscope DS8000-R series
-
NG # 001005-HW-Regol-005
Manufactured by:

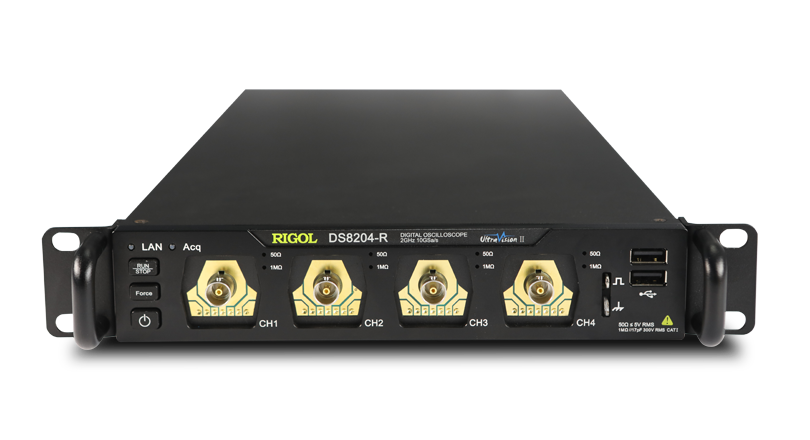

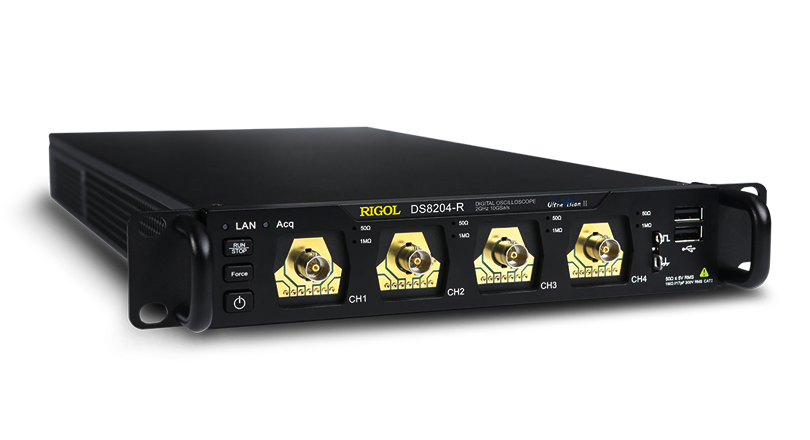

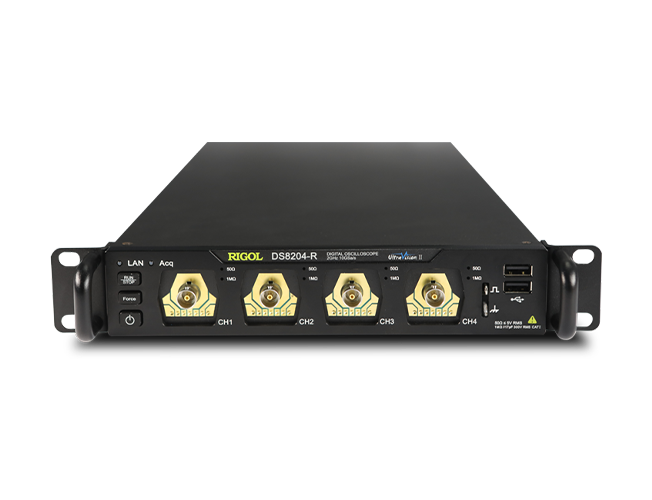

DS8000-R series digital oscilloscope is a compact mid-to-high-end digital oscilloscope based on RIGOL's UltraVision II platform. With a compact design, DS8000-R supports multi-machine system integration, suitable for rack installation. It also allows remote control, and meet the standards of industrial automation test systems.
Specification
Input signal analog-digital Portability bench-top Number of channels 4-channel, multi-channel Options and accessories USB, compact Bandwidth 1 GHz, 2 GHz, 350 GHz
Description
Compact design

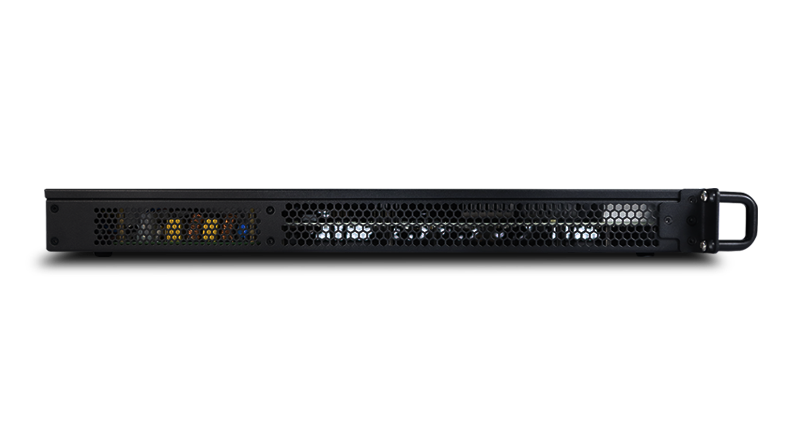

Space-saving compact design, small size, 214 mm (width) × 43 mm (height) × 478 mm (depth), which can be placed in a narrow space.
Convenient stand-alone working mode

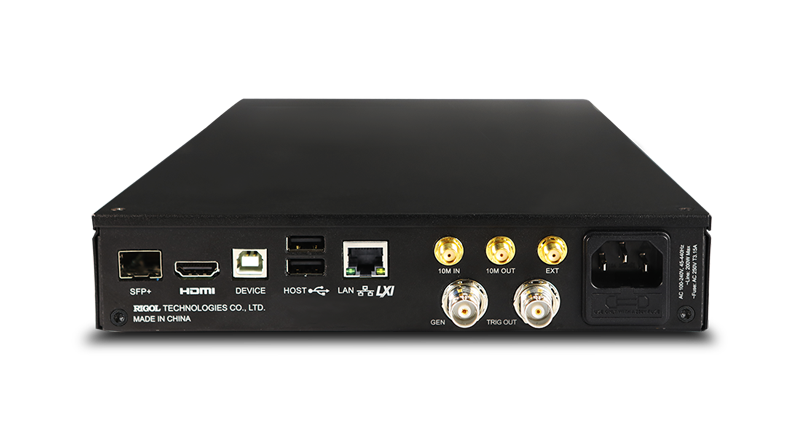

A single device with peripherals can meet traditional oscilloscope applications: connect the display device through the HDMI interface to view the user interface, connect the mouse through the USB Host interface to click and drag, and connect the keyboard to set numbers or strings.
Suitable for low temperature working environment
Without a LCD screen, the minimum working temperature for DS8000R is -40℃, and it can be applied to signal monitoring in special environments.
Save the rack space
Half U design helps to save the rack space. 2 units can be installed side by side in a 1U standard rack with a total of 8 channels, which efficiently utilizes valuable rack space
Scalable to 512 channels of synchronous trigger capability
Using the matching synchronous machine, it can provide a multi-machine synchronous trigger scheme, and can realize on-site calibration to ensure the requirements of multi-channel synchronous observation
