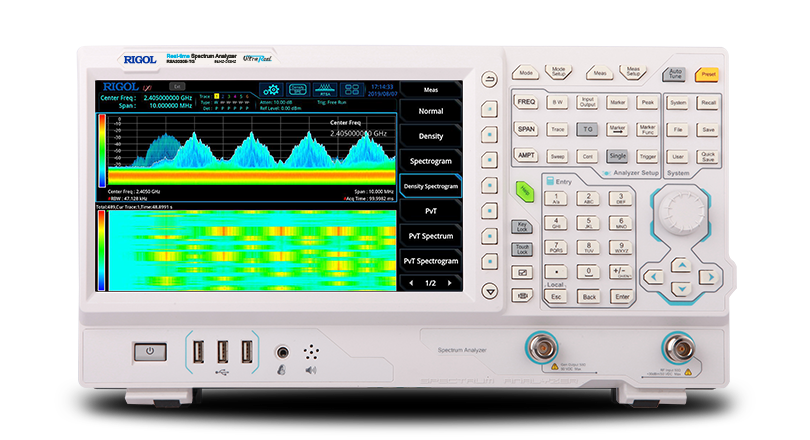

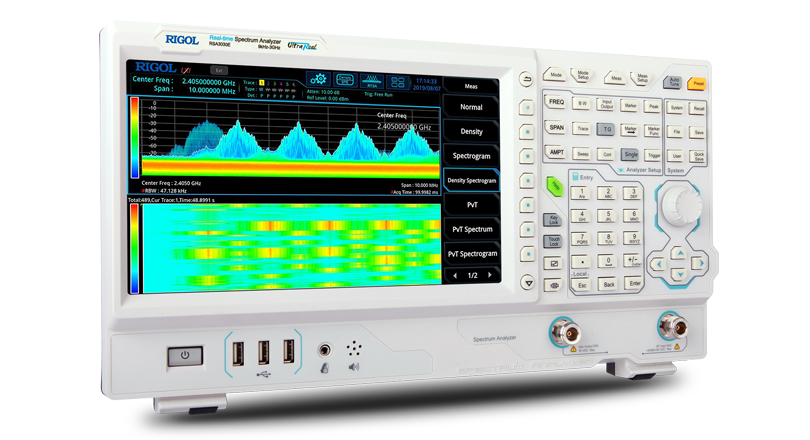

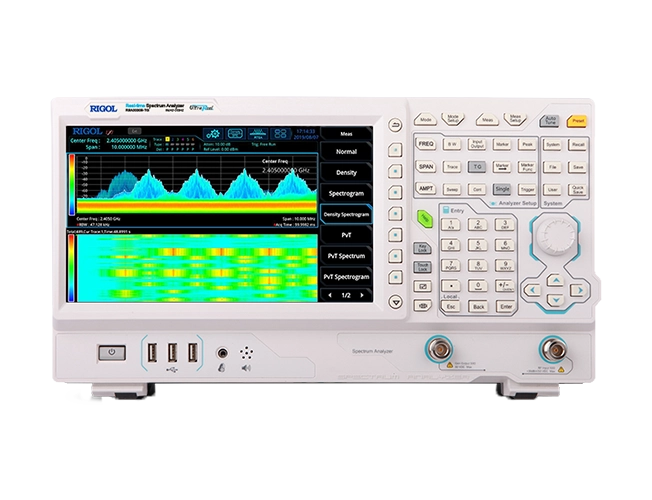

Real-Time Spectrum Analyzers RSA 3000E Series
-
NG # 001024-HW-Rigol-024
Manufactured by:
The RSA3000E is a 5-in-1 spectrum analyzer with sweep spectrum, real-time spectrum, scalar network analyzer (-TG model), EMI receiver and digital demodulation. Its frequency range is 9kHz to 1.5/3GHz, and it is available with the tracking source "-TG" model, which can be widely used in enterprise R&D, factory production, education and teaching.
Specification
FREQUENCY RANGE 9kHz~3GHz MAX. REAL-TIME BANDWIDTH 10MHz RBW 1Hz~10MHz PHASE NOISE 1Hz~3MHz DANL -102dBc/Hz@10kHz TRACKING SOURCE Yes
Description
The RSA3000E's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.
Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000E, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.
View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.
