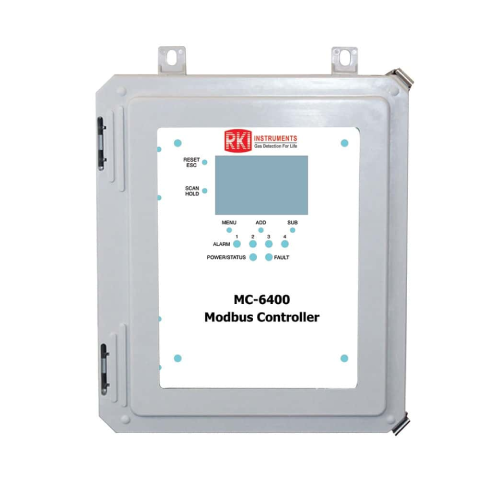

RKI MC-6400 Modbus Controller
002755-HW-RKI-055
Overview
The MC-6400 controller is a 64-channel gas monitoring controller that can communicate with up to 64 gas sensors or transmitters through an RS-485 Modbus communication. Four relays can be individually set up to the full scale gas reading and may be latching or non-latching. Used in conjunction with RKI’s transmitters to create a safer working environment.
| Product Specifications | |
| Product Type | 64 Channel wired Modbus gas monitoring controller |
| Operating Voltage | 12V to 35V DC (standard) |
| Power Type | Wired power |
| Power Supply | 6.25A (150W), 85/264V AC to 24V DC (optional) |
| Current Draw | 275 mA maximum (at 24V DC) |
| Display Screen | 160 x 104 Resolution graphical LCD screen transflective (sunlight readable)
with LED back light |
| Interface | 3 Push-buttons (MENU, ADD, SUB, SCAN/HOLD and RESET/ESC) |
| Product Mounting | 4 Mounting feet, 6 in. W x 12-1/4 in. T (included)
maximum mounting bolt/screw size of 5/16 in. (8mm) diameter |
| Temperature Range | -20°C to +70°C (-4°F to +158°F) |
| Product Compatibility | M2A, T3A, VOC Pro transmitters |
| Digital Input | Up to 64 individual RKI gas detectors using RS-485 Modbus |
| Relays | • 4 Dry-contact relays with 4 amp replaceable fuses
• Fault terminal • Optional to disable alarm relay • Latching and non-latching relay settings |
| Enclosure Materials | NEMA-4X enclosure, waterproof, chemical, and weather resistant |
| Wiring Hubs | Supplied with two 3/4” conduit hubs on bottom of housing. Can be located on sides or top if specified when ordering. |
| Accessories | Optional horn and/or strobe on housing (uses 1 or 2 of available relays) |
| Product Dimensions | 10 in, L x 8 in. W x 6 in. H (Max. dimensions with attachments) |
| Total Weight | 8.5 lbs |
| Hardware Warranty | 1-Year Limited |
The MC-6400 controller represents the latest leading edge technology in fixed gas detection today.
