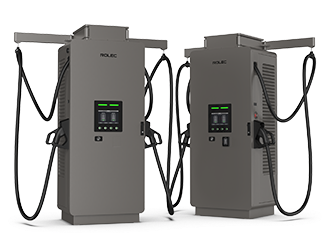

Rolec ULTRACHARGE 400 Intelligent ultra-rapid EV charging station
-
NG # 006312-HW-ATEN-012
Manufactured by:
This
seller generally responds in under 48 hours
An intelligent, high powered and scalable DC ultra-rapid charging station is available in six standard power configurations; choose from 200kW, 240kW, 280kW, 320kW, 360kW models with the ability to be upgraded in modules of 40kW, all the way up to 400kW.
Specification
- Plug & go, mobile app, or RFID controlled charging
- Offers 2x DC charging outputs
- Up to 400kW charging speeds
- Upgradeable power modules
- OCPP 1.6 compliant, OCPP 2.0.1 (future) – integrates with any CPMS
- Over-the-air firmware and software updates
- Built-in 30mA Type A RCD protection
- Intelligent dynamic power sharing
- Supports static and dynamic load management
- 10.1" HD user interface screen
- 4G / Wi-Fi / Ethernet connectivity
- 95% Peak efficiency
- Ultrawide power output voltage range 150V – 1000V
- Under/overvoltage, DC overcurrent, over-temp & surge protection
- 5m 500A Peak and 375A Nominal charging cables, capable of delivering 200kW charge rate to a standard 400V vehicle
- Cable management system as standard
- Optional 7m cables also available
- Optional RFID / NFC / contactless card payment terminal
- Conforms with PAS 1899 accessible charging standard
- Strong and durable IP54 / IK10 rated
Description
The ULTRACHARGE 400 is a futureproof and cost-effective solution for public, fleet, marina and highway infrastructure deployment. Designed with installers and chargepoint owner / operators in mind, these chargers are easy to install, maintain and service.
