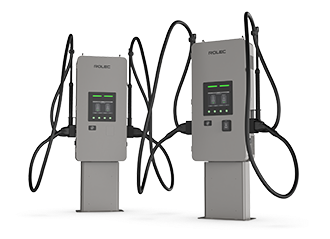

Rolec ULTRACHARGE 80 Intelligent rapid EV charging station
-
NG # 006310-HW-ATEN-010
Manufactured by:
This
seller generally responds in under 48 hours
With up to 80kW charging speeds, the ULTRACHARGE 80 is a powerful, yet low investment DC charging station for businesses offering rapid EV charging for their customers and/or fleet.
Specification
- Plug & go, mobile app, or RFID controlled charging
- Offers 2x DC charging outputs
- Up to 80kW charging speeds
- OCPP 1.6 compliant, OCPP 2.0.1 (future) – integrates with any CPMS
- Over-the-air firmware and software
- Built-in 30mA Type A RCD protection
- Intelligent dynamic power sharing
- Supports static and dynamic load management
- 10.1" HD user interface screen
- 4G / Wi-Fi / Ethernet connectivity
- ≥ 96% Peak efficiency
- Ultrawide power output voltage range 150V – 1000V
- Under/overvoltage, DC overcurrent, over-temp & surge protection
- 5m 250A Peak and 150A Nominal charging cables capable of delivering 80kW charge rate to a standard 400V vehicle
- Cable management system as standard
- Optional 7m cables also available
- Optional RFID / NFC / contactless card payment terminal
- Conforms with PAS 1899 accessible charging standard
- Strong and durable IP54 / IK10 rated
Description
The compact and robust design maximises space limitations, whilst offering convenient charging for all EVs with the ability to charge two vehicles simultaneously. The UltraCharge 80 is easy to use, install, maintain and service. Meets PAS 1899 accessible standards.
