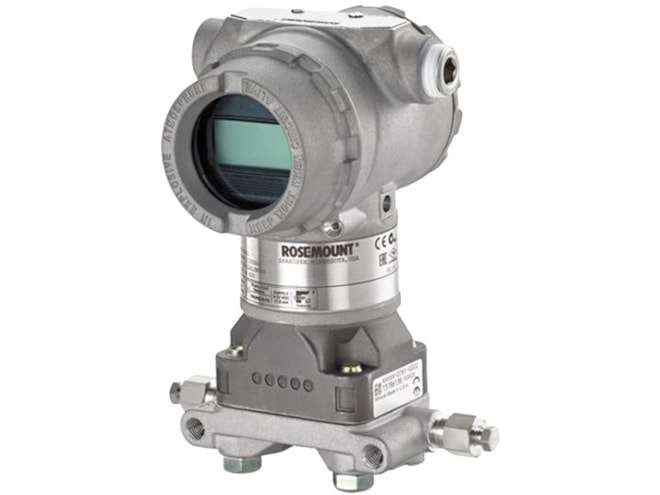

Rosemount 3051C Smart Pressure Transmitter
002803-HW-ROSE-003
Overview
The Rosemount 3051C smart pressure transmitter combines advanced technology with the versatile Coplanar process connection to create a new standard in pressure measurement technology. Even under the most demanding conditions, the performance specifications of the 3051C provide unmatched long-term stability and reliability.
- 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
- Complete pressure, level, or flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
- Application-specific configuration allows you to transform your pressure transmitter into a flow meter with a totalizer or a level transmitter with volume calculations
- Graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
The industry-proven Rosemount 3051 with patented Coplanar technology allows for direct mounting in multiple measurement applications. Ten-year stability and 150:1 rangedown produce reliable measurements and wide application flexibility. Available with a graphical, back-lit display, optional Bluetooth connectivity, Flow and Level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.
The 3051C can utilize either traditional flanges or Rosemount's versatile Coplanar platform designed to enable the best process connection for pressure, flow, and level applications. Right out of the box, the solution arrives factory calibrated, pressure-tested, and ready to install. The Rosemount 3051C smart pressure transmitter is also available in a number of materials and a wide range of hazardous area certifications are available.
