Salicru SPS 1100 ADV RT2 B1 Uninterruptible Power Systems (UPS)
-
NG # 00271-HW-SAL-071
Manufactured by:
The Salicru SPS 1100 ADV RT2 B1 is a high-efficiency Uninterruptible Power System (UPS) featuring 1100 VA line-interactive sine-wave technology, designed to provide reliable power backup for entry-level servers, essential IT equipment, and network devices. Its tower/rack convertible format offers versatile installation options, making it suitable for a variety of professional environments.
Specification

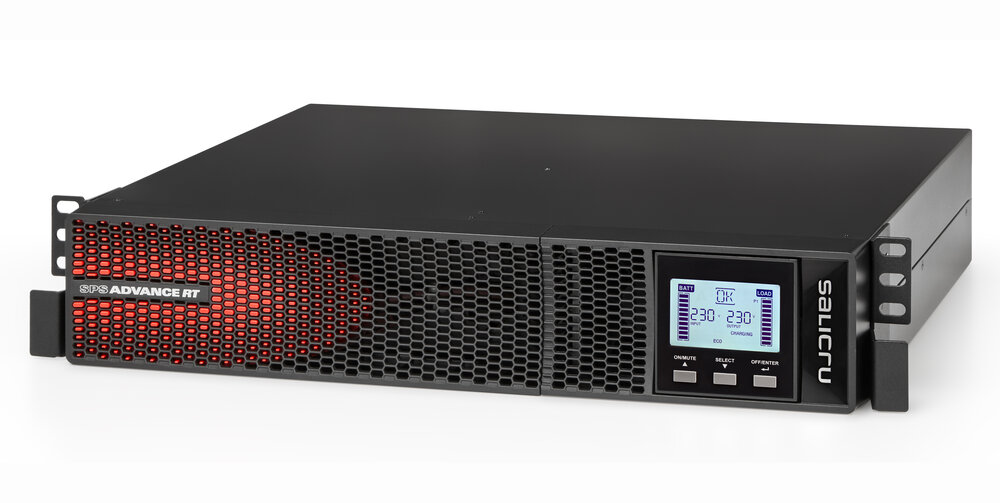

TECHNOLOGY Line-interactive FORMAT Convertible tower/rack (2U) Rated voltage 208 / 220 / 230 / 240 V Voltage range 100% load 170 ÷ 280 V Stabiliser AVR (Buck & Boost) Rated frequency 50 / 60 Hz (auto-detection) Frequency range ±5 Hz Auto~detection of frequency Yes Protection Fuse (800/1100) or resettable thermal cutoff (1500/2000/3000) Power factor 0.9 Rated voltage 208 / 220 / 230 / 240 V Voltage accuracy (battery mode) ±1.5% Power (VA/W) 1100 / 990 Total harmonic distortion (THDv) < 2% linear load / < 5% non-linear load Waveform (battery mode) Pure sine wave Frequency 50/60 Hz (same as input) Frequency accuracy (battery mode) ±0.1Hz Admissible overloads in battery mode < 120% off at 1 min / < 150% off at 10 s Admissible overloads in-line mode < 120% off at 5 min / < 150% off at 10 s / >150 %: 1 s Socket type IEC No. Of sockets 8 Programmable sockets Yes, for critical / non-critical loads (4/4) Battery type Not included, Pb-Ca sealed, AGM, maintenance-free Charge type I/U (constant current/constant voltage) Recharge time 4 hours to 90% Battery test Automatic on every start + one x week Temperature voltage compensation Yes Ports RS-232/USB-HID Intelligent slot Slot for SNMP/potential-free contacts/ MODBUS Monitoring software For Windows, Linux and Mac Type LCD + keypad Values Voltage, power and input and output frequency / Battery voltage / % battery charge / % load / Operating mode / Fault / Discharge time / Mute Operating modes Normal / Stabilisation (AVR) / Battery / Fault Alarm Output battery mode, polarity, low battery (back up time), charger failure and overload Audible Every 10 s for battery operation. Every 2 s for low battery / Polarity. Every 1 s for overcharge. Continuous for fault. Failure Display LCD Cold start (start-up from batteries) Yes Emergency stop (EPO) Yes ADSL/fax/modem transient protector
YesGreen-function Yes, automatic stop in battery mode with load <5% Smart fan speed Yes, smart control of fan speed Site wiring fault Yes, error detection of phase-neutral rotation and/or absence of earth Operating temperature 0º C ÷ 40º C Relative humidity Up to 95%, non-condensing Maximum operating altitude 2,400 masl (power degradation up to 5,000 m) Acoustic noise at 1 meter < 45dB Safety EN IEC 62040-1 Electromagnetic compatibility (EMC) EN IEC 62040-2 (C2) Operation EN IEC 62040-3 Corporate certification ISO 9001, ISO 14001, ISO 45001 Depth (mm) 410 Width (mm) 438 Height (mm) 88 Weight (kg) 9
Description
This UPS delivers effective protection against power disturbances, voltage fluctuations, and outages, ensuring continuous operation and data security. Equipped with line-interactive technology, it improves voltage regulation and energy performance, while its pure sine-wave output guarantees stable power delivery for sensitive electronics. The Salicru SPS 1100 ADV RT2 B1 is an ideal solution for small-scale IT infrastructures, office workstations, and business-critical systems requiring consistent and dependable backup power.
