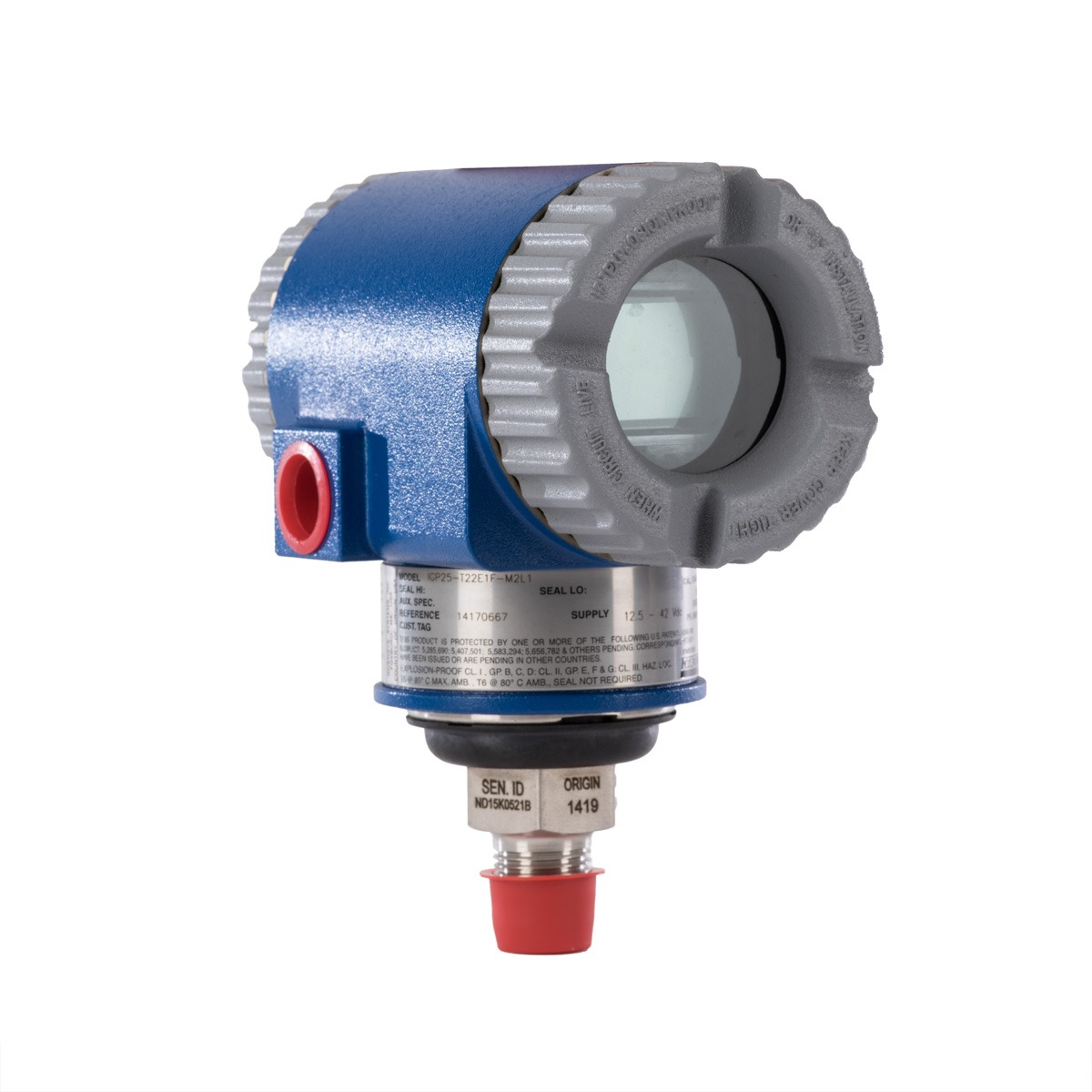

Absolute pressure transmitter IAP10S
-
NG # 00300-HW-SCHNEIDER-001
Manufactured by:
range of product - Pressure Product or component type - Pressure transmitter Type of measurement - Absolute turndown - 400:1 Response time - 100 ms mounting type - Direct connect Low profile Biplanar Kit composition - Mounting bracket display type - LCD display drift - +/- 0.03 % of measuring range per year, for 10 years communication protocol NEMA degree of protection - NEMA 4X Product certifications - FM CSA ATEX IEC-Ex EAC INMETRO TÜV Rheinland (SIL3) NEPSI Standards - NACE MR01-03 Unit Type of Package 1 - PCE Number of Units in Package 1 - 1
Specification
Pressure type
absolute
Technology
silicon, strain gauge
Output
analog, digital
Protection level
ATEX, corrosion-resistant, IP67, NEMA 4X
Other characteristics
compact, two-wire, smart, with LCD display, remote
Pressure range
Max.: 414 bar
(6,004.56 psi)
Min.: 0 bar
(0 psi)
Precision
0.05 %
Process temperature
Max.: 85 °C
(185 °F)
Min.: -40 °C
(-40 °F)
