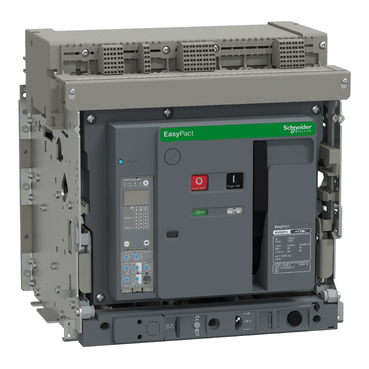

Circuit breaker, EasyPact MVS, 4000A, 3 Poles, 1140V, EDO, Trip System 6.0A
TF:
00313-HW-SCHNEIDER-013
| Range | EasyPact |
|---|---|
| product name | MVS40T3 |
| Device short name | MVS40T3 |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3P 3d |
| [In] rated current | 4000 A at 40 °C |
| Network type | AC |
| [Ue] rated operational voltage | 800/1140 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity code | T3 |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category B |
| Trip unit name | Trip System 6.0A |
| Trip unit technology | Electronic |
| Trip unit rating | 4000 A |
| Network frequency | 50/60 Hz |
|---|---|
| control type | Electrically operated |
| Mounting mode | Fixed |
| Mounting support | Rail Base plate |
| Connection position | Horizontal |
| Location of connection | Rear |
| [Ui] rated insulation voltage | 1250 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 12 kV conforming to IEC 60947-2 |
| Circuit breaker CT rating | 4000 A |
| Breaking capacity | 66 kA Icu at 800/1140 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity | 66 kA (Ics) at 800/1140 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles (with maintenance) conforming to IEC 60947-2 10000 cycles (without maintenance) conforming to IEC 60947-2 |
| Electrical durability | Category B: 500 cycles 800/1140 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
| Connection pitch | 115 mm without spreader |
| Contact position indicator | Yes |
| [Icm] rated short-circuit making capacity | 143 kA (Icm) at 800/1140 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Icw] rated short-time withstand current | 66 kA at 800/1140 V AC 50/60 Hz conforming to IEC 60947-2 |
| Trip unit protection functions | LI |
| Protection type | Overload protection (long time) Instantaneous short-circuit protection |
| Fault indication | Short-circuit Overload |
| Long time pick-up adjustment type Ir | Adjustable 9 settings |
| Long time pick-up adjustment range | 0.4...1 x In |
| Long time delay adjustment type | Adjustable 9 settings |
| [tr] long-time delay adjustment range | 0.5…24 s at 6 x Ir |
| Thermal memory | 20 minutes before and after tripping |
| Short-time pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] short-time pick-up adjustment range | 1.5...10 x Ir |
| Short-time delay adjustment type | Adjustable 5 settings |
| [tsd] short-time delay adjustment range | 100…400 ms |
| Instantaneous pick-up adjustment type Ii | Adjustable 9 settings |
| Instantaneous pick-up adjustment range | Off |
| Ground-fault pick-up adjustment type | Adjustable 9 settings |
| Ground-fault time delay adjustment type -tg | Adjustable 5 settings |
| [tg] ground-fault time delay adjustment range | 100…400 ms |
| [Ig] ground-fault pick-up adjustment range | 0.2...1 x In |
| Zone selective interlocking ZSI | With |
| Display type | Digital display |
| Type of measurement | Current |
| Maximum breaking time | 25 ms |
| Maximum closing response time | 70 ms |
| Height | 439 mm |
| Width | 441 mm |
| Depth | 395 mm |
| Product weight | 90 kg |
| Standards | IEC 60947-2 |
|---|---|
| Product certifications | IEC EAC |
| Pollution degree | 4 conforming to IEC 60664-1 |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -5…70 °C |
| Ambient air temperature for storage | -40…85 °C without control unit -25…85 °C with control unit |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 43.9 cm |
| Package 1 Width | 44.1 cm |
| Package 1 Length | 39.5 cm |
| Package 1 Weight | 90 kg |
