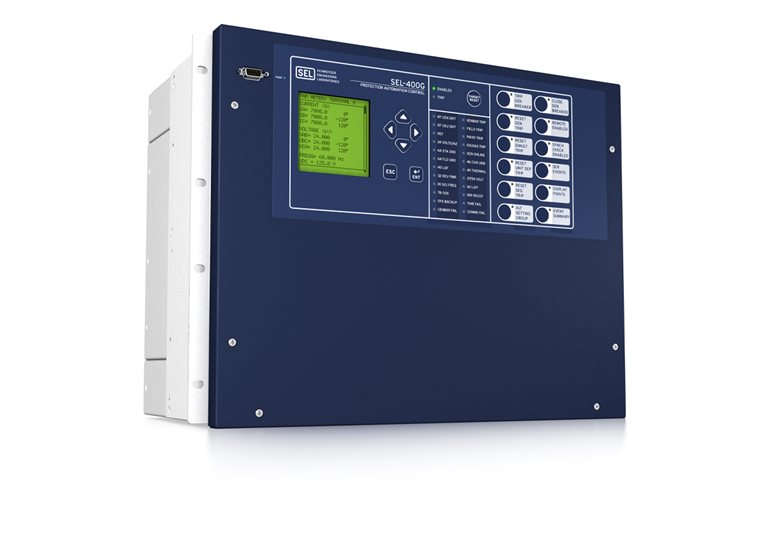

SEL-400G Advanced Generator Protection System
-
NG # 001401-HW-SEL-001
Manufactured by:
The SEL-400G offers primary and backup protection for generators of all sizes and types, including hydro, pumped-storage hydro, steam turbine, and combustion gas turbine generators. It combines generator, bus, and step-up transformer protection in one package, making the relay an economical solution for an entire generation unit.
Specification
- Advanced Generator and Unit Protection
- Wide-range Frequency Tracking
- Autosynchronizer
- RTD-Based Thermal Protection
- Metering and Reporting
- Synchrophasor Data
- Flexible Ethernet Communications
- Serial Communications
- Multiple Configuration Platforms
Description
Advanced protection functions, like transverse differential protection, provide turn-to-turn fault detection, which allows for earlier fault detection, limits damage to your generator, and helps you return to service faster. Adaptive differential protection and a wide frequency tracking range (5–120 Hz) improve protection security. Dual frequency zones and autosynchronization offer smooth synchronization to the grid.
