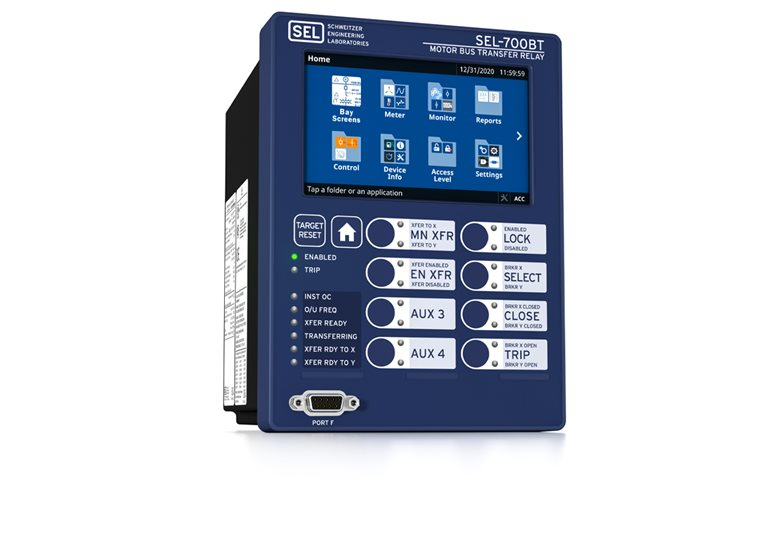

SEL-700BT Motor Bus Transfer Relay
-
NG # 001407-HW-SEL-007
Manufactured by:
This
seller generally responds in under 48 hours
The SEL-700BT is an effective solution for an industrial motor bus transfer system, with multiple source transfer algorithms, flexible I/O, and advanced communications. It ensures process continuity by transferring critical loads from a primary source to an auxiliary feeder during faults in the primary feeder line.
Specification
- Motor Bus Transfer Solution
- Protection Functions
- Web Server Access
- Accelerate Firmware Downloads
- RTD-Based Thermal Protection
- Metering and Reporting
- Touchscreen Display
- Vector Shift Protection
- Flexible Design and Easy Installation
Description
The relay allows automatic motor bus transfers using fast, in-phase, residual, and fixed-time methods to keep processes running without requiring a cold start. It is also possible to manually transfer load locally or remotely via communications.
