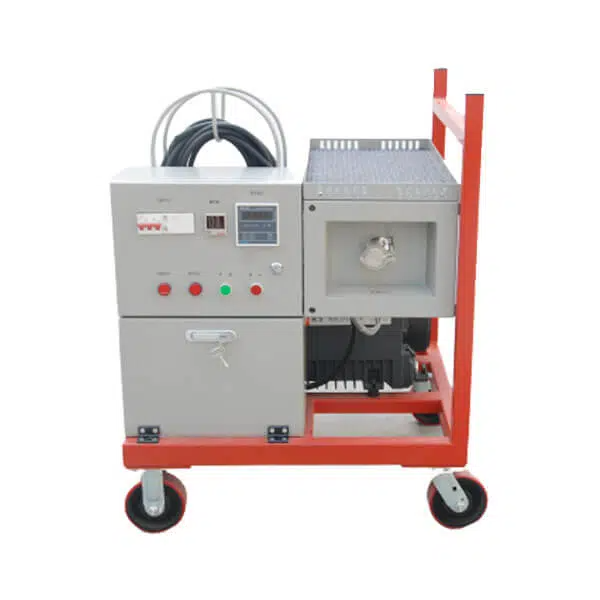

Mobile SF6 Vacuum Pump Unit
-
NG # 00186-HW-SF6-086
Manufactured by:
For evacuation of air or nitrogen
SF6 gas is essential for the safe and efficient operation of SF6-insulated electrical equipment. To maintain the purity of SF6 gas and prevent equipment failure, removing any air or moisture that may have entered the equipment is essential. The SF6 vacuum pump can evacuate any air or moisture from the gas compartment, ensuring the SF6 gas remains pure and free from contaminants.
Specification
- Steerable and fixing rollers easy transportation
- Self-closing couplings
- Digital vacuum indication in mbar
- 16-1000m3/h speed optional
- 1-3 DN20/DN40/DN80 vacuum ports are optional
- Tool tray
Description
The mobile SF6 vacuum pump unit serves for evacuation of air or nitrogen from the switchgear. The vacuum pump enables a final vacuum of < 1 mbar. To guarantee that no air/gas mixture is generated and the insulation properties of SF6 are retained.
