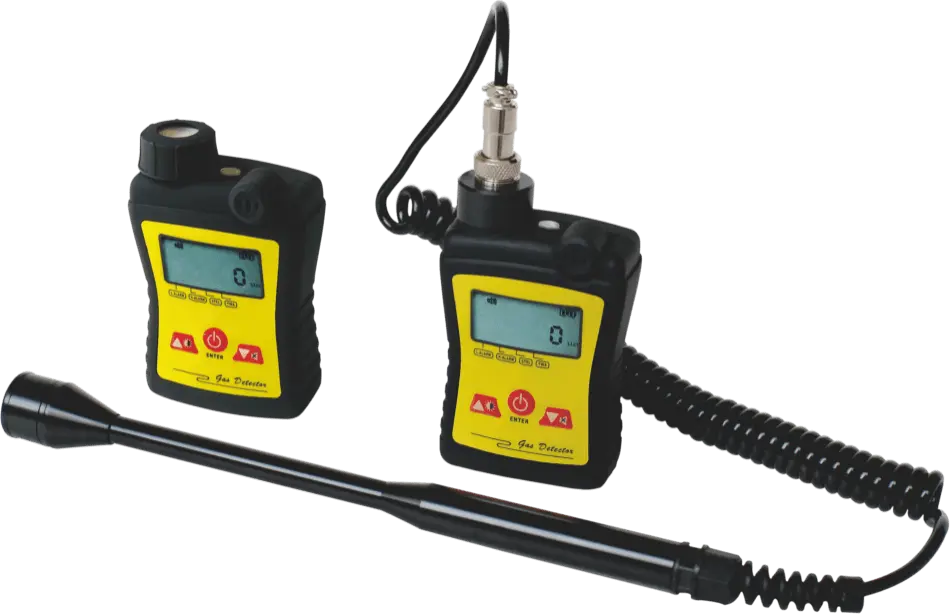

NA1 portable hydrogen leak Detector
-
NG # 00170-HW-SF6-070
Manufactured by:
The NA1 portable hydrogen leak Detector can detect the concentration of hydrogen in different environments, and timely alarm when it reaches or exceeds the preset alarm limit.
Specification
Gas Detected H2 Detection Method Diffusion Measurement Principle Catalytic Combustion Measurement Range 0% LEL – 100% LEL Response Time ≤30 s Detection Error ≤±5% F.S. Operation Method Touch Buttons Display Five-digit Eight-segment LCD Display Operating Temperature -20°C to 55°C Operating Humidity 0% RH to 95% RH (non-condensing) Storage Temperature 0°C to 40°C Power Source Rechargeable Lithium Battery, Continuous operation for over 8 hours Battery 3.7V Lithium Battery, 1700 mA/h Capacity Dimensions 125mm x 66mm x 42mm Weight 105g (NA-1) / 331g (NA-2) Explosion-proof Level Exia ⅡCT 3 Ga
Description
Users can set low or high limit alarms according to different needs. The detector adopts an intelligent signal processing system, which can achieve functions such as calibration, data measurement, and display.
