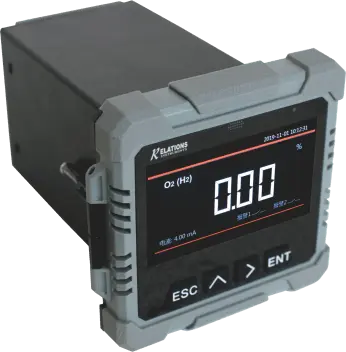

RA1630 online hydrogen oxygen analyzer
-
NG # 00176-HW-SF6-076
Manufactured by:
The RA1630 online hydrogen oxygen analyzer represents the latest technology in oxygen measurement, using imported high sensitivity electrochemical sensors.
Specification
Technical Specifications Values Measurement Range 0% to 2% VOL O2 Precision ± 0.03% Repeatability ± 0.01% Response Time 20 seconds Analog Output 4 mA to 20 mA (Max load 800Ω) Alarm Output DC 24V 1A (Two alarm outputs, independently programmable) Operating Temperature -10°C to 40°C Protection Level NEMA 4X, IP 66 Explosion-proof Level Ex ia ⅡC T 6 Ga Installation Method Control Unit: Panel mounted on control cabinet, Cutout size: 92mm×92mm
Description
The intrinsically safe probe has high accuracy, resistance to weak acid and alkali corrosion, and can be used for oxygen content measurement in many fields. It is widely used in hydrogen production stations in power plants and industrial oxygen content measurement.
