RF051 MID Series SF6 Gas Recovery

  • NG # 00189-HW-SF6-089

Manufactured by:

This seller generally responds in under 48 hours

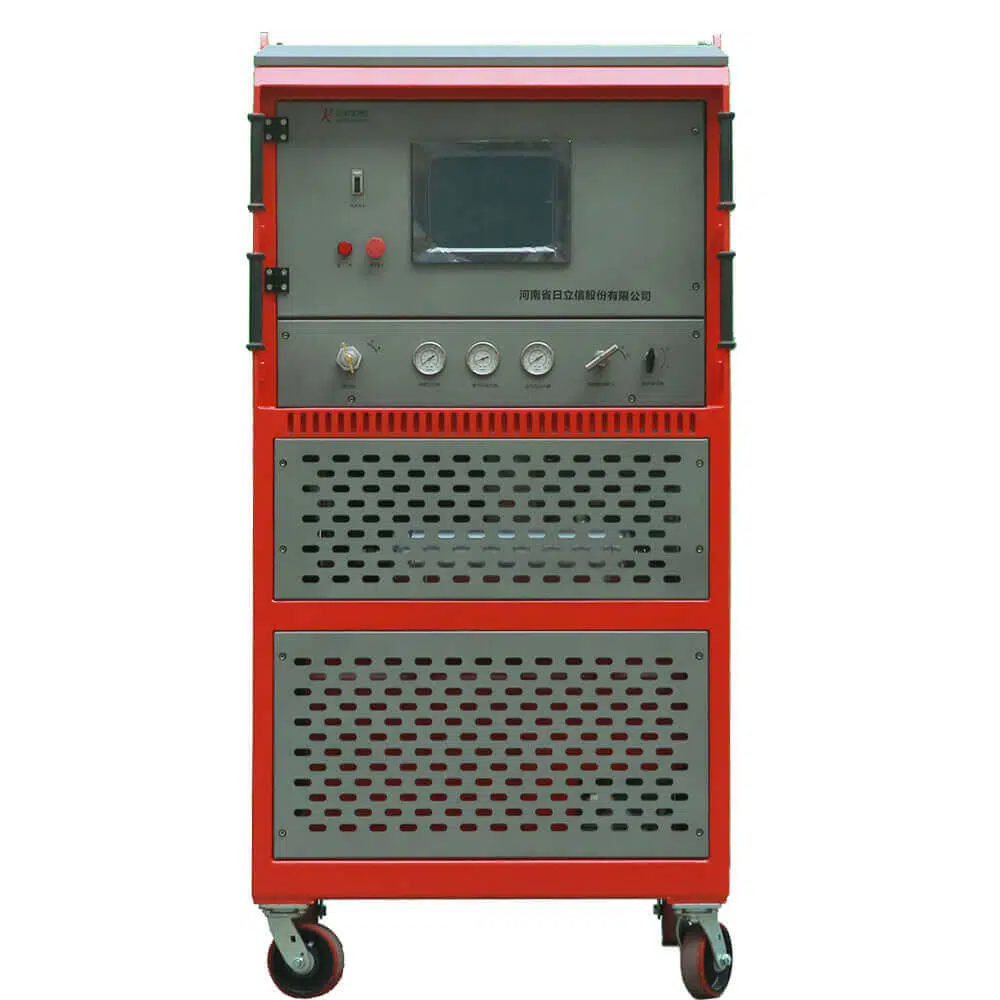

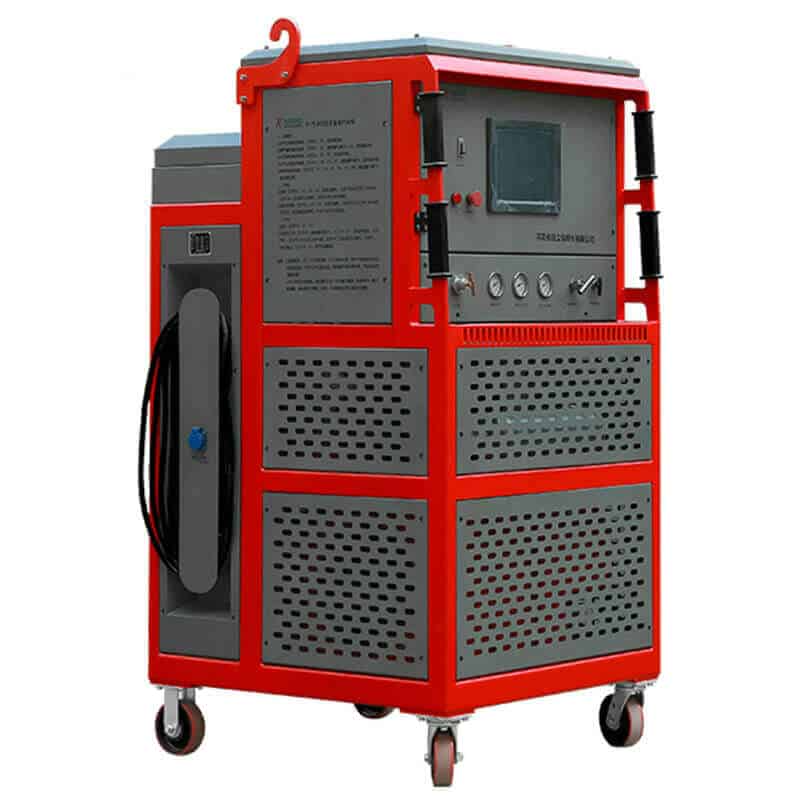

RF051 MID Series SF6 Gas Recovery For 10-120KG SF6 Gas Recovery and Filter

Add to favorites | Compare this product

Specification

  • Oil-less compressor and vacuum compressor
  • Recovery SF6 Gas down to 1 mbar
  • Independent vacuum port, recovery and vacuum can start at the same time.
  • 70L built-in storage tank with Weighing function
  • Built-in filter for SF6 dehydrate and impurity removal
  • Touch screen one-click operation
  • SF6 Gas Cooling system optional

Description

RF051 MID Series SF6 Gas Recovery design for gas-insulated equipment with a gas volume of 10-120KG.

The RF051 is equipped with our independently developed oil-free compressor, along with an oil-free vacuum compressor, allowing for the recovery of SF6 gas from gas insulated switchgear chambers down to 133 Pa. This enables the chambers to be safely opened and exposed to air for maintenance. After maintenance is completed, the unit’s standard high-speed vacuum pump can evacuate the air, meeting the maintenance requirements of gas insulated switchgear.
