RS301ON online Hydrogen Thermal Conductivity Analyzer
-
NG # 00178-HW-SF6-078
Manufactured by:

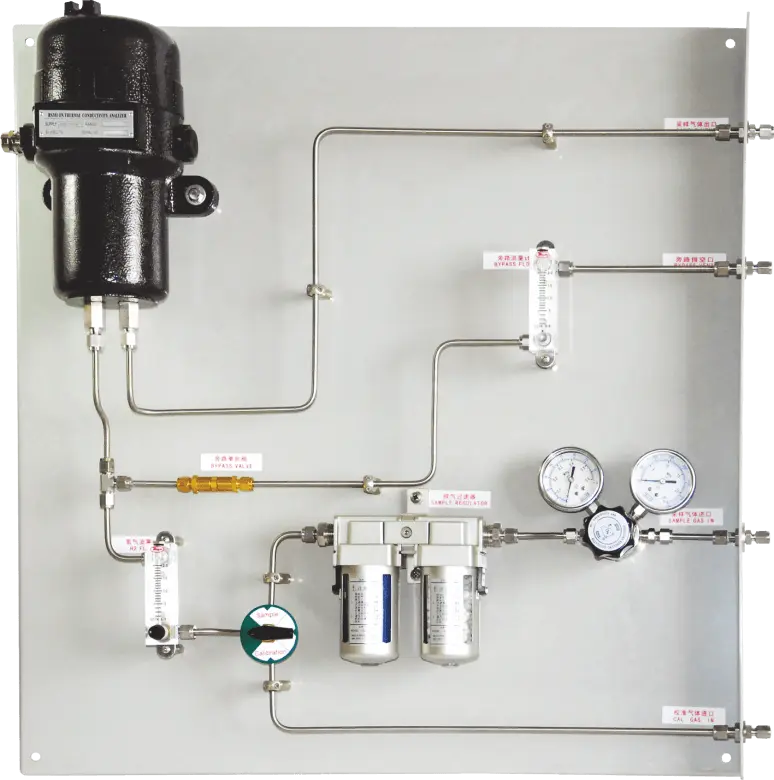

RS301ON online hydrogen purity analyzer
Specification
Technical Specifications Measurement Range 90% to 100% H2 (Air) Typical Accuracy ±2%F.S. Output Range 4 mA to 20 mA (Corresponding to H2 in air: 90% to 100%)
Max Load: 800 OhmsAlarm Relay Contact Current: 3 A Sample Gas Flow Rate 0.5 SCFH to 1.0 SCFH (1 SCFH ≈ 500 ml/min) Sampling Pressure 0 MPa to 0.8 MPa Environmental Requirements Relative Humidity: 90% RH (Max)
Temperature Range: -10°C to +60°CInput Voltage AC 220V, Power: 35W Explosion-proof Level Ex d ⅡC T 6 Gb Weight Approximately 50 kg
Description
The RS301ON online hydrogen purity analyzer adopts explosion-proof sensors, ensuring that the sensors can work reliably even in harsh environments. The sensing component consists of two parts: the sensor component and the circuit component.
