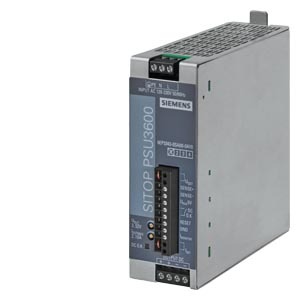

Siemens SITOP 6EP33430SA000AY0 PSU3600 Flexible Stabilized Power Supply Module, 120/230 VAC Input, 3/52 VDC Output, 1.3/2.6 A Input, 10 A Output
-
NG # 00100-HW-SIME-044
-
MF # 00100-HW-SIME-044
Manufactured by:
Siemens SITOP Stabilized Power Supply Module, Flexible, Series: PSU3600, 120/230 VAC Input, 3/52 VDC Output, 1.3/2.6 A Input Current, 10 A Output, 16 W Power Dissipation, 47 to 63 Hz Line Frequency, 120 W Active Power, 1 ph, Screw Terminal, Snaps onto DIN Rail Mount, IP20, -25 to 70 deg C, 125 mm H x 42 mm W x 135 mm D
Specification
Temperature Rating
-25 to 70
Output Current
10
Type
Flexible
Input Voltage
120/230
Input Current
1.3/2.6
Output Voltage
3/52
Specifications
47 to 63 Hz Line Frequency, 120 W Active Power, 1 ph, Screw Terminal, Snaps onto DIN Rail Mount, IP20
Series
PSU3600
Dimensions
125 mm H x 42 mm W x 135 mm D
Description
Siemens 6EP33430SA000AY0 SITOP Stabilized Power Supply Module. Siemens SITOP Stabilized Power Supply Module, Flexible, Series: PSU3600, 120/230 VAC Input, 3/52 VDC Output, 1.3/2.6 A Input Current, 10 A Output, 16 W Power Dissipation, 47 to 63 Hz Line Frequency, 120 W Active Power, 1 ph, Screw Terminal, Snaps onto DIN Rail Mount, IP20, -25 to 70 deg C, 125 mm H x 42 mm W x 135 mm D. Additional Description: SIEM-6EP33430SA000AY0 SITOP PSU3600 FLEXI. Catalog Description: SITOP PSU3600 flexi Stabilized power supply Input 120-230 V AC Output 3-52 V DC/10 A. 120 W.
Siemens SITOP PSU3600 6EP33430SA000AY0 flexi Stabilized power supply (1-phase) Input: 120-230 V AC Output: 3-52 V DC/10 A, 120 W. Siemens presents the new SITOP PSU3600 6EP3343 0SA00 0AY0 dual power supplies with a wide input voltage range, with two regulated (12 to 28 V DC) independent (galvanically isolated) outputs, for applications where a simultaneous positive and negative supply voltage is required.
