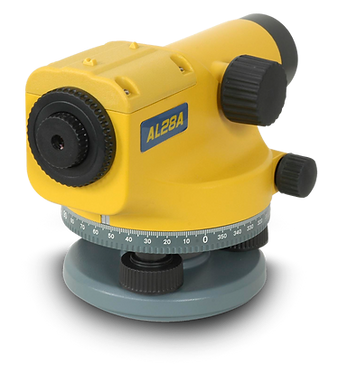

Spectra Precision AL series automatic levels
TF:
006120-HW-SPECTRA-020
Overview
Spectra AL auto levels. How to be totally level at work.
| Magnification | 32 X |
| Color | Yellow |
| Objective Diameter | 36 mm |
| Field of View Angle | 1º 20' |
| Shorest Focusing Distance | 0.6 m |
| Stadia Constant | 100 |
| Additive Costant | 0 |
| Compensator Dampening | Air |
| Compensator Range | ±15' |
| Compensator Setting Accuracy | <0.3" |
| Double Run Leveling per 1 km | 1 mm |
| Circular Vial Accuracy | 8/2 mm |
| Horizontal Circle | 1º |
| Weight | 3.50 lb (1.60 kg) |
| Base Plate | 5/8 x 11 |
The Spectra AL series automatic levels are designed for a variety of elevation control and alignment tasks including general building construction, cut and fill measurements, area leveling, and landscaping.
