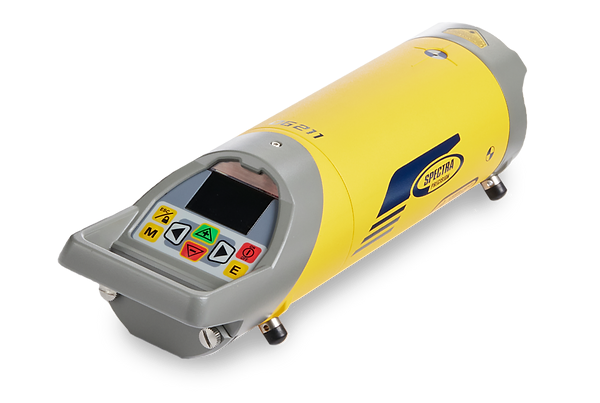

Spectra Precision DG211 self-leveling pipe laser
TF:
006112-HW-SPECTRA-012
Overview
The thing pipe dreams are made of, this automatic self leveling pipe laser.
| Accuracy, Level 1 | ± 1.5 mm / 30 m (1/16” @ 100 ft.) |
| Accuracy, Grade 1 | ± 9 mm / 30 m (1/4” @ 70 ft.) |
| Accuracy, Grade, Temperature | ± 0.6 mm / 30 m per °Celsius |
| Operational Area | Up to 150 m (500 feet) |
| Laser Type | 600 – 680 nm |
| Laser Class | 3A/3R OR 2 |
| Grade Range | -20% to +30% |
| Self-Leveling Range | -10% to +25% |
| Battery Life Li-Ion Pack | 36 hrs |
| Li-Ion Pack Charging Time | < 6 hrs |
| Alkaline Batteries Back Up | 4 x C-Cells |
| Operating Temperature | -10°C to 50°C (14°F to122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dust and Waterproof | IP68 |
| Weight | 2868 g (6.3 lbs) (inlcl. Li-Ion pack) |
| Product Length | 372 mm (14.65 in) |
| Diameter | 96 mm (3.78 in) |
The DG211 is a compact, automatic self-leveling pipe laser used for installing gravity-flow sanitary pipe. With a grade range of -20% to +30%, it can handle a wide variety of jobsite requirements. The compact design is specifically designed to fit in 100 mm (4 in) pipe diameters.
