Spectra Precision GL722 Grade Laser
TF:
006109-HW-SPECTRA-009
Overview

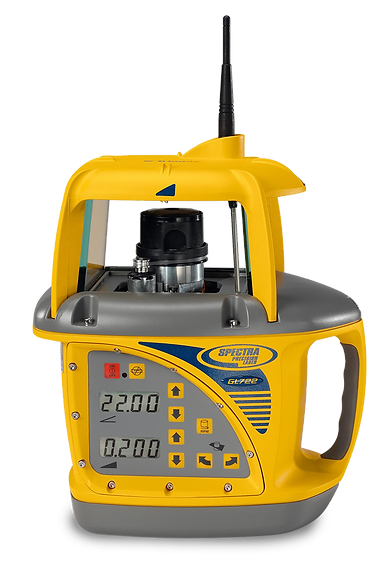

The Spectra GL722 Grade Laser
| Grade Range | Axis Grade Range X -10 to +10% (GL710, GL720, GL722) |
| Axis Grade Range Y | -0.500 to +25% (GL720, GL722) |
| Self-Leveling | GL710 self levels to 10%, GL720, GL722, self-level to 25% |
| Grade Resolution | 0.001% Servo Deadband Accuracy 4.6 arc seconds (GL710, GL720, GL722) |
| Laser Classification | CDRH II (IECI) |
| Range/Radius | Laser – 450 m (1500 ft) with Spectra Precision Lasers machine-mounted receivers |
| Mounting Threads | 5/8” x 11” on all models 3 1/2” X 8” Mounting Adapter optiona |
| Waterproof Housing | Waterproof Aluminum Housing |
| Dimensions | Weight 8.5 kg (18.8 lbs.) Height 29.8 cm (11.75 in) Width 25.4 cm (10.0 in) Depth 19.7 cm (7.75 in) |
| Available Options | GL720 comes with HL700 Receiver GL722 comes with CR600 Receiver |
The GL722 dual grade laser is one of the most advanced grade lasers on the market. The long range operation, advanced radio remote, grade matching, Planelok and Automatic Axis Alignment features mean that you can do quick but highly accurate set-ups for any grade application.
