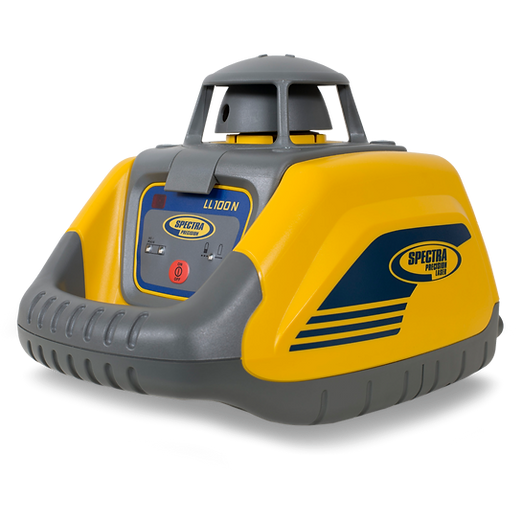

Spectra Precision ll100n laser level
006101-HW-SPECTRA-001
Overview
The LL100N Laser Level provides a convenient, one-person leveling solution packaged for maximum efficiency. You can choose the full system, which includes a tripod and rod, or opt for the compact case version without accessories. Whichever option you select, the LL100N delivers reliable performance and exceptional ease of use.
| Laser Source | 650 nm visible, Class 2 |
| Laser Accuracy | ±1/8 in at 100 ft (±3 mm at 30 m) |
| Compensation Method | Electronic self-leveling / ±5 degrees |
| Operating Range | 1,150 ft (350 m) diameter with receiver HR320 |
| Out of Level Warning | Rotor stops, laser shuts off, red out-of-level LED flashes |
| Rotation Speed | 600 RPM |
| Operating Temperature | 23 °F to 113 °F (-5 °C to 45 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Battery Life | 80 Hours Akaline |
| Size | 8.5L × 6.7W × 6.0H in (21.6L × 17.1W × 15.2H cm) |
| Water Resistant | IP Rating IP54 |
| Weight | 1.5 kg (3.3 lbs) |
| Battery Status | LED battery indicator |
| Warranty | 2 Years |
The Spectra LL100N is designed for small contractors or one-person survey teams who need a durable and efficient leveling tool. Its rugged, automatic self-leveling system boosts productivity and withstands drops of up to 1 meter. Offering an impressive 1,150-foot diameter operating range, the LL100N delivers accuracy of ±1/8 inch at 100 feet and self-leveling compensation of ±5 degrees for quick, precise setups with minimal training required. It features an 80-hour battery life, while the HR320 receiver provides dual accuracy options and keeps the full setup lightweight at just 3.3 lbs. The LL100N also comes with a 2-year instant over-the-counter exchange warranty, ensuring dependable performance and peace of mind.
