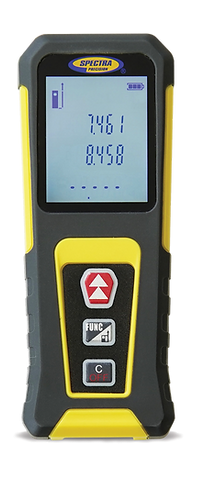

Spectra Precision QM10 Laser Distance Meter
TF:
006118-HW-SPECTRA-018
Overview
The QM10 Laser Distance Meter is compact, fitting comfortably in your hands and in your pocket or tool belt. Simply press a button to take a measurement – simple to operate and easy to use. Designed for everyday use on the jobsite.
| Measuring Range | 0.1 m to 30 m (0.3 to 100 ft) |
| Accuracy | ± 2.0 mm typical (± 1/12 in) |
| Functions | Measure, Area, Volume, memory 10 measures |
| Measure Reference | Front, Rear |
| Automatic Shut-Off | Laser - 1 minute Product - 10 minutes |
| Battery Life | 8000+ measures |
| Power Supply | 2 x AAA x 1.5V |
| Dimensions | 43 x 24 x 110 mm (1.7 x 0.9 x 4.3 in) |
| Power Indication | LCD 3 segments |
| Operating Temperature | -10⁰C to +40⁰C (14⁰F to 104⁰F) |
| Storage Temperature | -20⁰C to +65⁰C (-4⁰F to 149⁰F) |
| Laser Safety | Class II as per EN 60825-1:2007; IEC 60825-1:2007 CFR 21 § 1040 (FDA) |
| Laser Type | 620-690 nm visible red / <1 mW max |
| Weight | 74 g (2.6 oz) without batteries |
The QM10 measuring range is 100 feet (30 m). It's handy for difficult vertical measurements, cluttered environments, over water and other measurements for which tape measures are not convenient.
