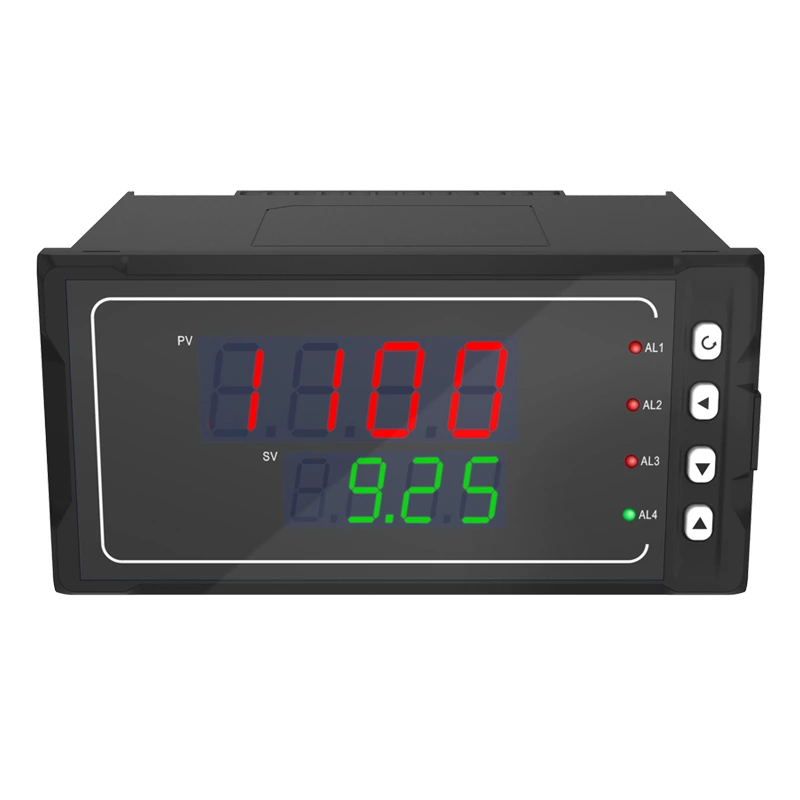

SUP-1100 LED Display multi panel meter

  • NG # 00359-HW-SUPMEA-059

Manufactured by:

This seller generally responds in under 48 hours

Add to favorites | Compare this product

Specification

 Product Digital meter/ digital display controller
 ModelSUP-1100
 DisplayDual-screen LED display
 DimensionA. 160*80*110mm
B. 80*160*110mm
C. 96*96*110mm
D. 96*48*110mm
E. 48*96*110mm
F. 72*72*110mm
G. 48*48*110mm
InputThermocouple B, S, K, E, T, J, R, N, Wre3-25, Wre5-26; RTD: Cu50, Cu53, Cu100, Pt100, BA1, BA2 Analog signal: -100～100mV, 4-20mA, 0-5V, 0-10V, 1-5V
 Output4-20mA (RL≤600Ω) RS485 Modbus-RTU Relay output
 Power supplyAC/DC100~240V (AC/50-60Hz)
DC 20~29V

Description

SUP-1100 is single-circuit digital panel meter with easy operation; double four-digit LED display, supporting input signals like thermocouple, thermal resistance, voltage, current , and transducer input; applicable to measurement of industrial process quantifiers including temperature, pressure, flow, liquid level, and humidity etc.
