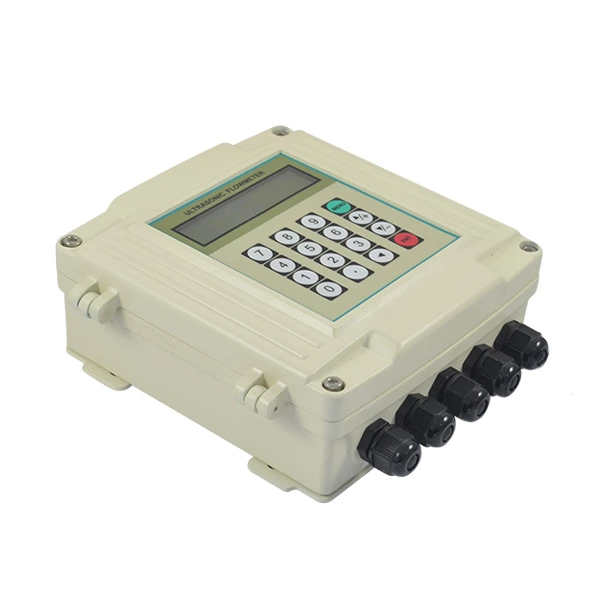

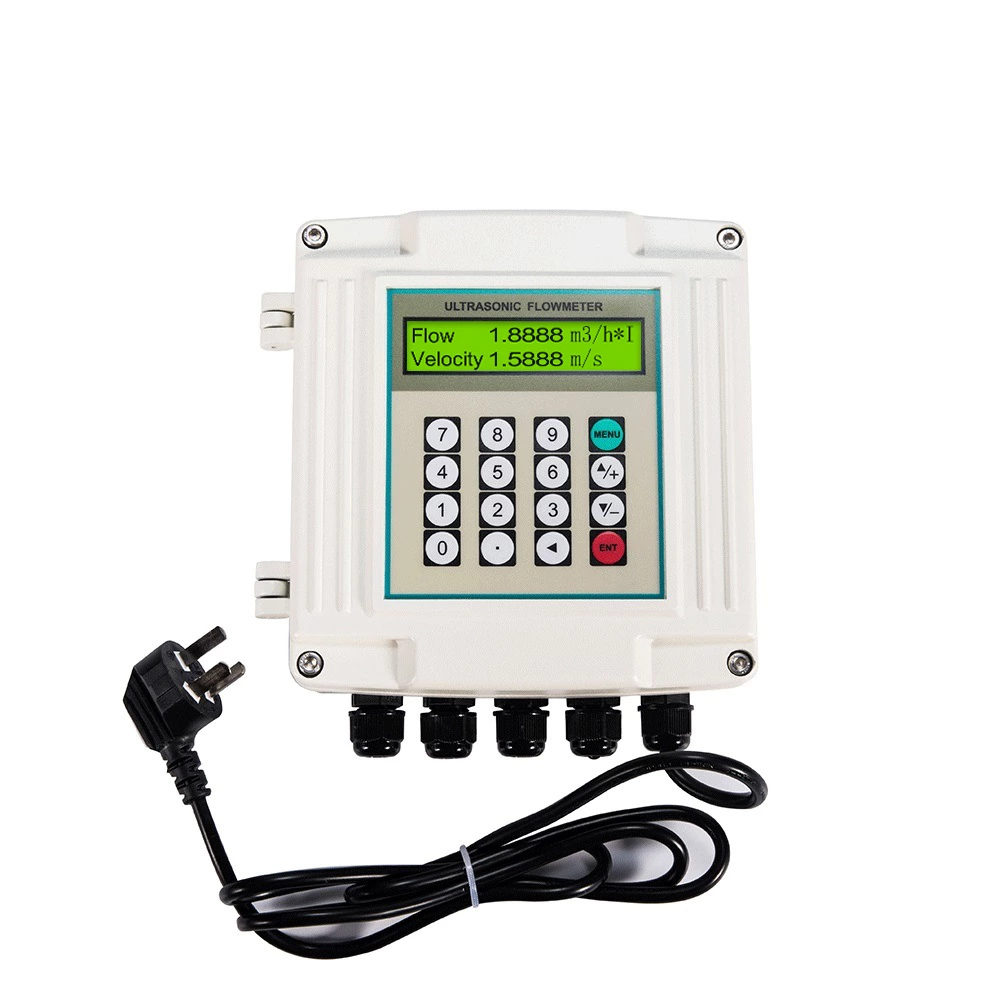

SUP-1158S Wall mounted ultrasonic flowmeter
-
NG # 00316-HW-SUPMEA-016
Manufactured by:
Specification
Product Wall-mounted (clamp on) ultrasonic flowmeter Model SUP-1158S Pipe Size DN32-DN6000 Accuracy ±1% Signal output 1 way 4-20mA output 1 way OCT pulse output 1 way replays output Interface RS485, support MODBUS Liquid Types Virtually all liquids Working Temperature Convertor: -20~60℃; Flow Transducer: -30~160℃ Working humidity Convertor: 85%RH Power Supply DC8~36V or AC85~264V(optional) Date Logger Built-in data logger can store over 2000 lines of data Case Material ABS Dimension 170*180*56mm(Convertor)
Description

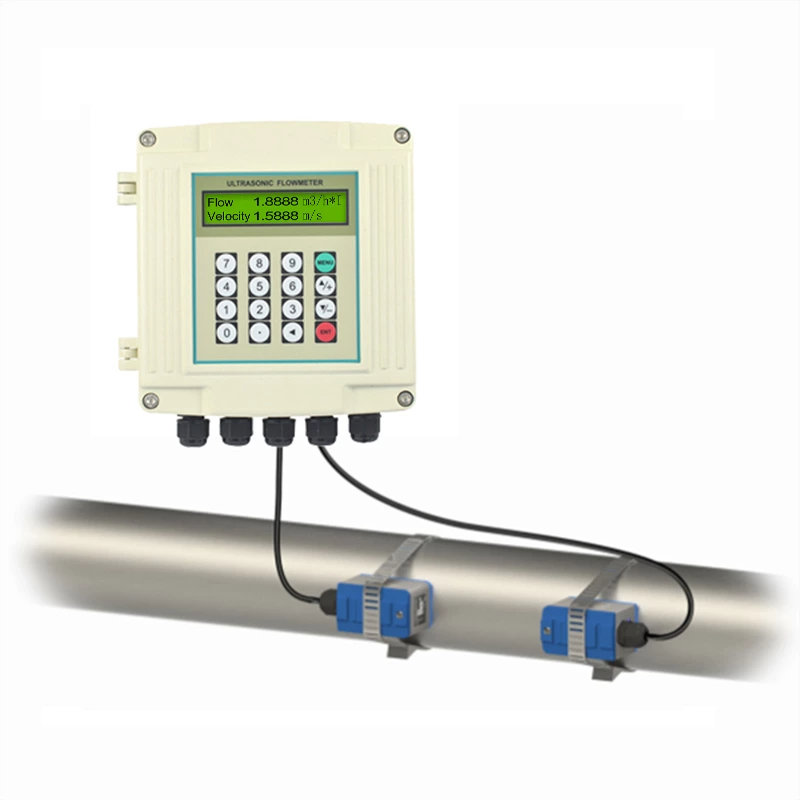

SUP-1158S Wall mounted clamp on ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance.
