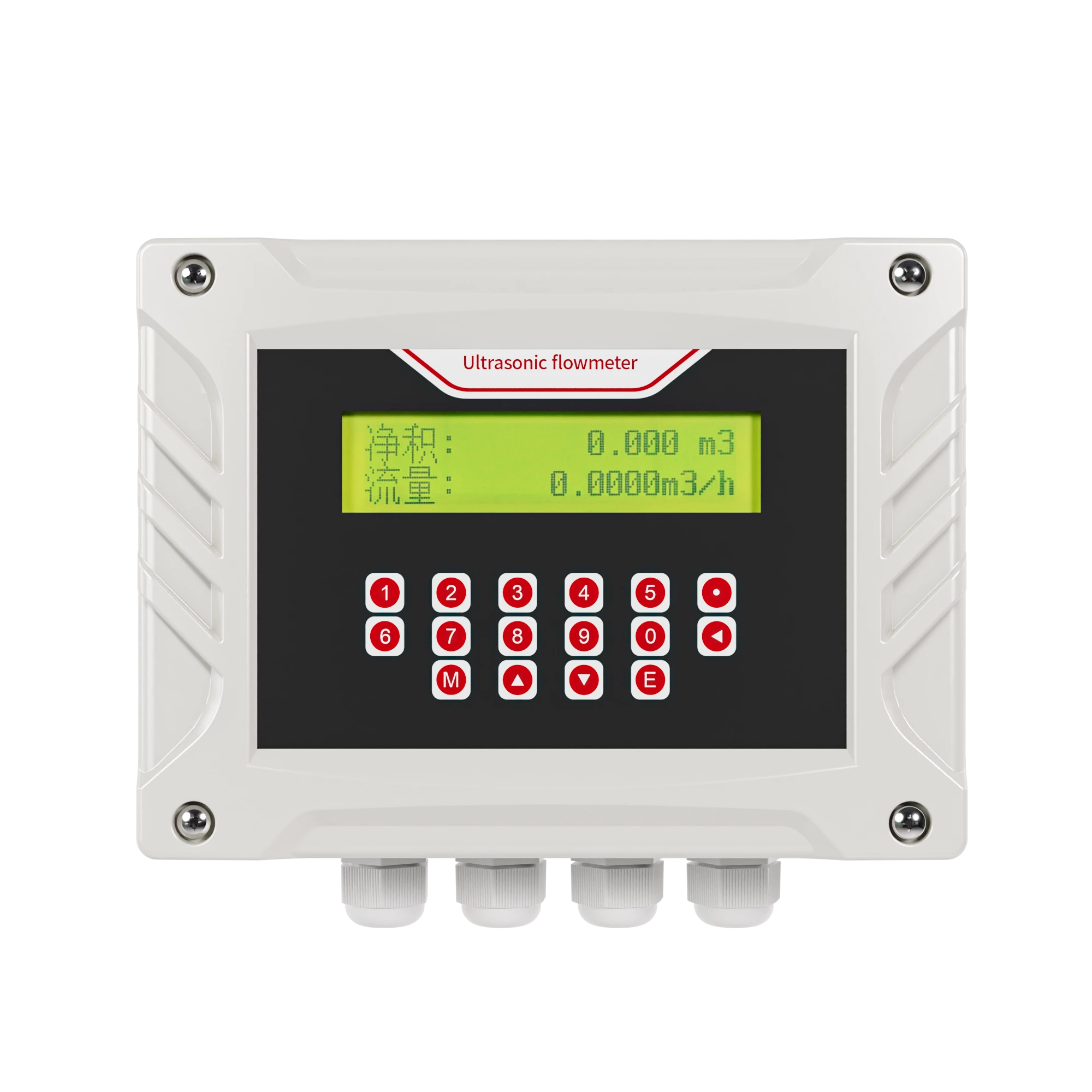

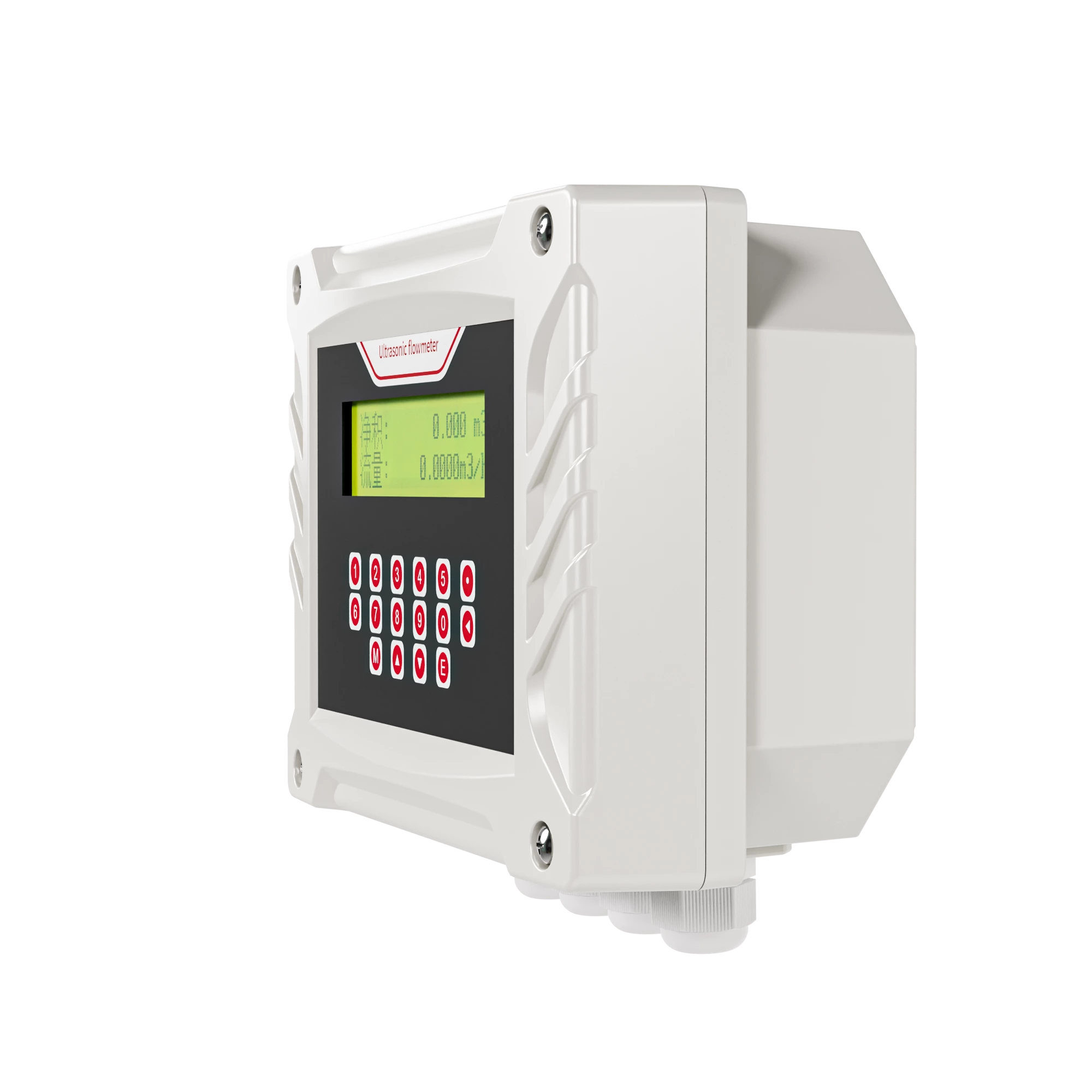

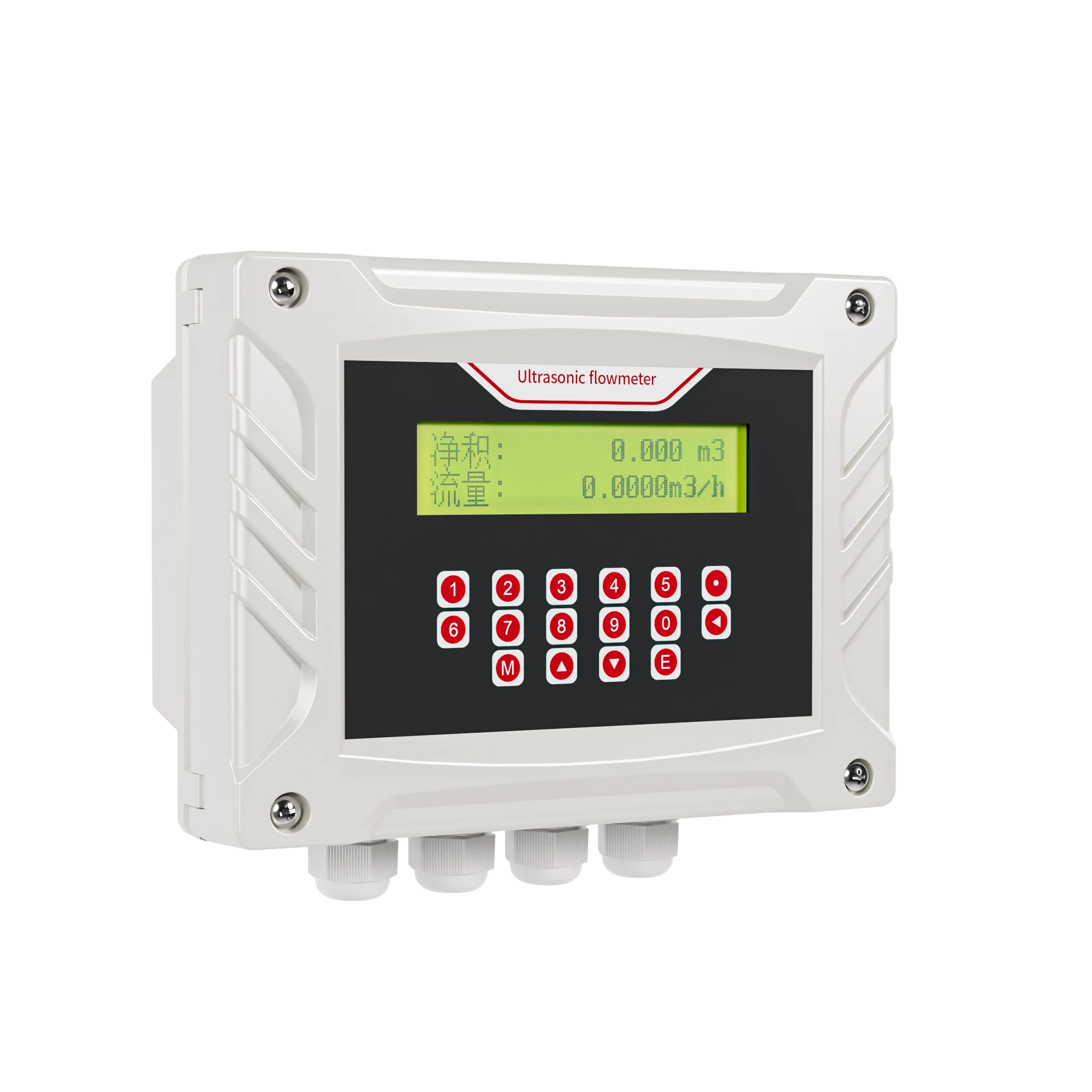

SUP-FSC400 Wall-Mounted Ultrasonic Flow Meter
-
NG # 00318-HW-SUPMEA-018
Manufactured by:
The SUP-FSC400 Ultrasonic Flow Meter is designed for continuous measurement of most homogeneous liquids in industrial environments. It supports heat measurement through integrated temperature sensors and offers both clamp-on and insertion types for versatile installation options. These meters are ideal for industries such as petroleum, chemical, power generation, and food processing.
Specification
Model Type Medium-sized clamp-on (DN50–DN700) | Standard insertion (DN80–DN6000) | Extended insertion (DN80–DN6000) Temperature Range -30°C to 90°C Accuracy 1.0 grade Output & Power Supply Pulse + 4-20mA + RS485 + SPST, 24VDC/220VAC dual power supply Electrical Interface & Housing Material M20*1.5 cable gland, plastic ABS, IP65/IP68 Cable Length Options Standard: 5m, 10m, 20m | Custom: Up to 100m
Description
The SUP-FSC400 ultrasonic flow meter offers versatile, non-intrusive installation for clean liquids in industrial settings. With clamp-on and insertion options, it ensures accurate, reliable measurements unaffected by pipe materials, while supporting heat measurement and integration.
