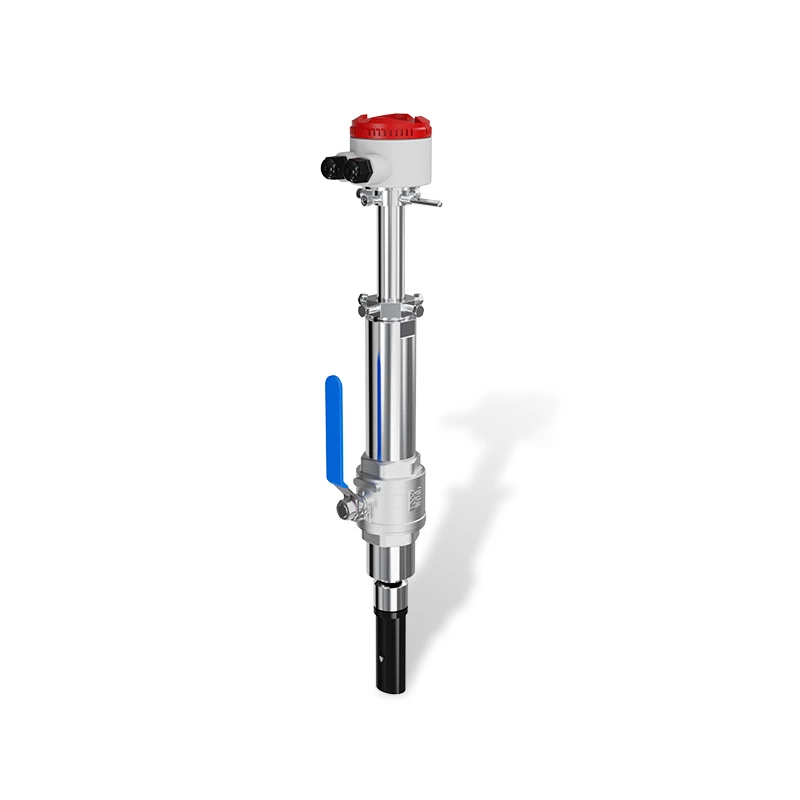

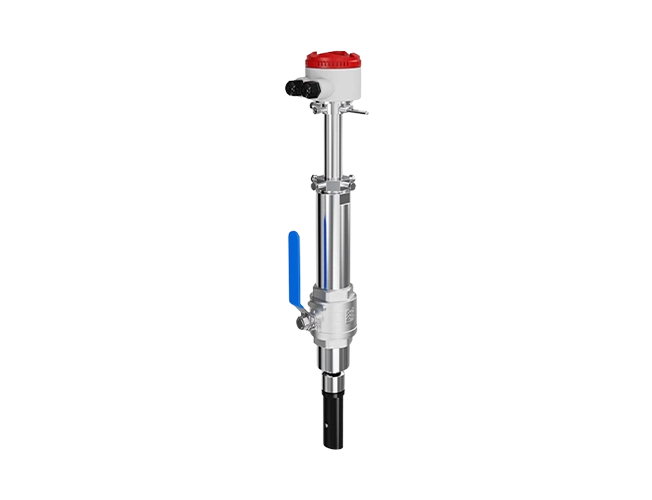

SUP-LDG Insertion type electromagnetic flowmeter
-
NG # 00320-HW-SUPMEA-020
Manufactured by:
Specification
Size DN100mm-DN2000mm Nominal Pressure 1.6 Mpa Accuracy 1.5% Probe ABS, Polyurethane Electrode SUS316L, Hastelloy B, Hastelloy C Structure Type Integral type, remote type Medium Temperature -20~+80degC Ambient Temperature -20~+60degC Ambient Humidity 5~100%RH(Relative humidity) Measuring Range Max 15m/s Conductivity >5us/cm Protection Class IP65(Standard); IP68(Optional for remote type) Process Connection 2'' Thread(Standard), 2'' Flange(Optional) Output Signal 4-20mA/Pulse Communication RS485(Standard), HART(Optional), GPRS/GSM(Optional) Power Supply AC220V(Can be used for AC85-250V)
DC24V(Can be used for DC20-36V)
DC12V(Optional), Battery powered 3.6V(Optional)Power Consumption <20W Alarm Upper Limit Alarm / Lower Limit Alarm Self-diagnosis Empty Pipe Alarm, Exciting Alarm
Description
Supmea Insertion type electromagnetic flowmeter is based on Faraday's law of electromagnetic induction. In the electromagnetic flowmeter, the conductive medium in the measuring tube is equivalent to the conductive metal rod in the Faraday test, and the two electromagnetic coils at the upper and lower ends generate a constant magnetic field.
