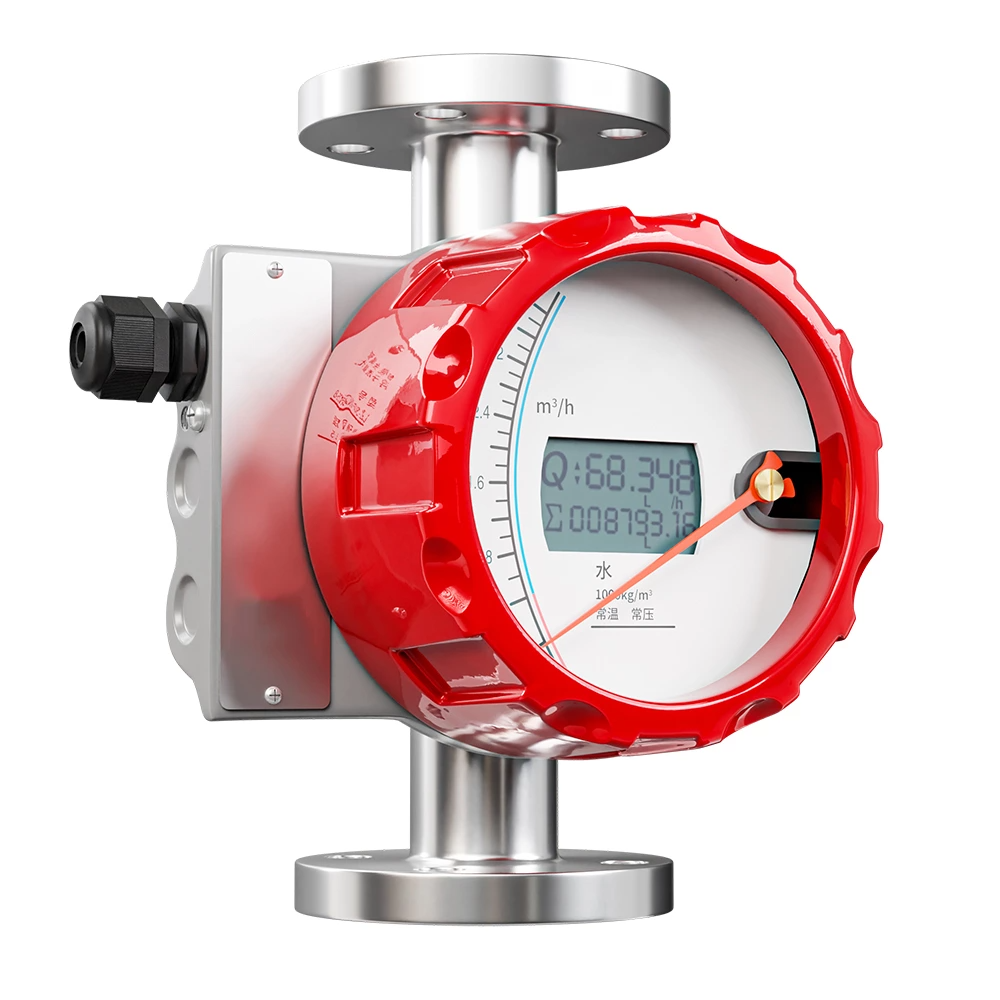

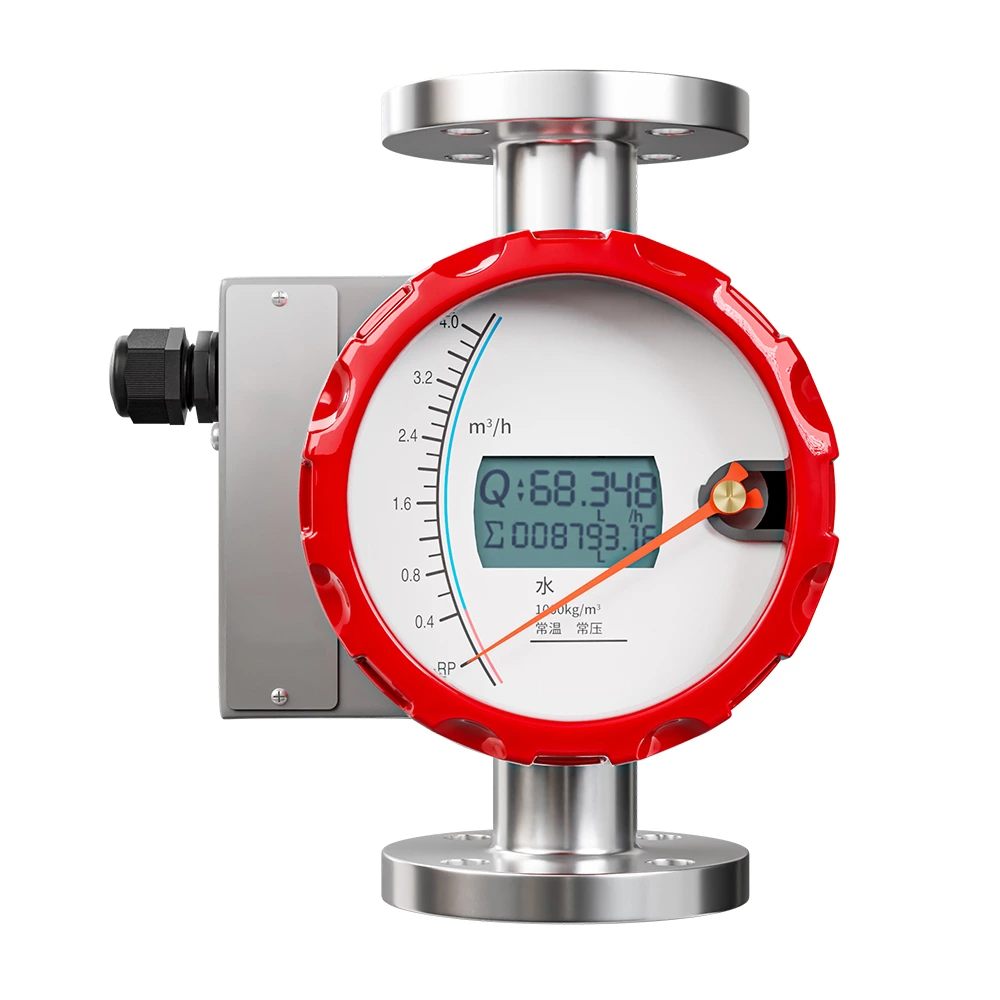

SUP-LZ Metal tube rotameter
-
NG # 00314-HW-SUPMEA-014
Manufactured by:
Specification
standard：DN15~DN50≤4.0MPa DN65~DN200≤1.6MPa high pressure type: -80 ℃ ~ 200 ℃,DN15~DN100≤10MPa ；200 ℃ ~ 350 ℃,DN80~DN200≤6.3MPaProduct Metal Tube Rotameter Model SUP-LZ Range Water (20℃) (01~200000) L/h Air (20,0.1013MPa) (0.05~2000) m³/h Range ratio Standard 10:1 Optional 20:1 Accuracy Standard type: Liquid: 1.5% Gas: 2.5% Customized type: Liquid: 1.0% Gas: 1.5% Pressure Connection Flange, Clamp, Thread, Sanity thread Medium temperature Standard: -20℃~120℃ PTFE -40℃~80℃ High temp: 120℃~450℃ low temp: -80℃~-20℃ Environment temperature Remote type: -40℃~70℃ Pointer type/local alarm type -40℃~80℃ Power supply Standard type: 24VDC two-wire system (4-20) mA (12VDC~32VDC) Alarm type: 24VDC multi-wire system (4-20) mA (12VDC~32VDC) AC type: (100~240) VAC 50Hz~60Hz Battery type: 3.6V@9AH lithium battery Load resistance RLmax: 600Ω Alarm Output Instantaneous flow alarm for upper and lower limits, optocoupler-isolated Darlington output (internal 24VDC supply, max 8mA, external supply up to 250mA@ 36VDC） Local alarm type: upper limit, lower limit, or both upper and lower limit instantaneous flow alarms, reed switch contact output (contacting rate1A @ 30VDC) Optional normally open/closed contacts. Alarm holding range: Max 60% range of the full span, Min. Interval between upper and lower limit alarm: 10% of full scale Pulse output Cumulative pulse output is output of optocoupler signal isolation Darlington tube (internal 24VDC power supply, maximum current
8mA)Ingress protection IP65
Description
SUP-LZ Metal Tube Rotameter is a device that measures the volumetric flow rate of fluid in a closed tube. It belongs to a class of meters called variable-area flowmeters, which measure flow rate by allowing the cross-sectional area the fluid travels through to vary, causing a measurable effect.
