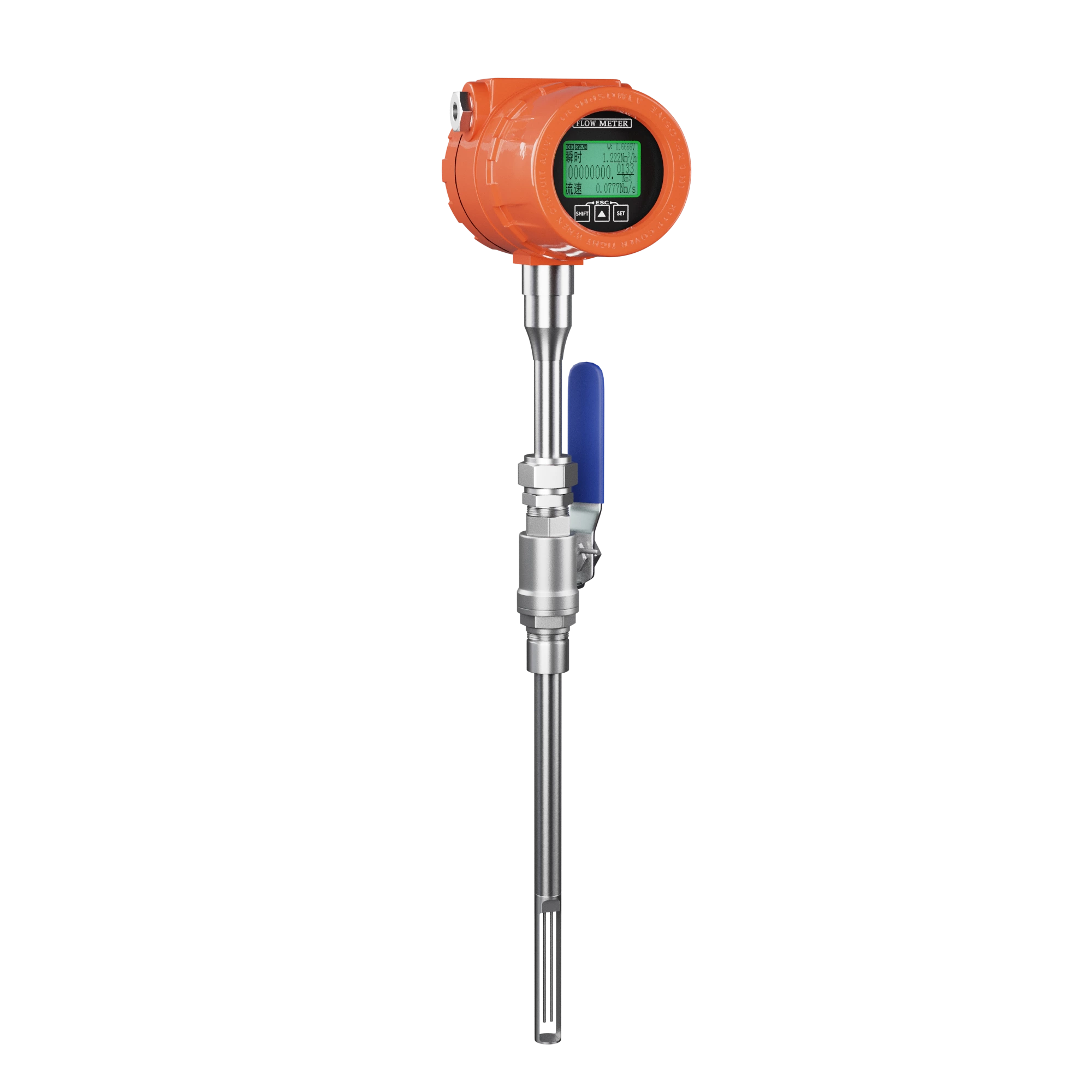

SUP-MF Thermal mass flowmeter
-
NG # 00329-HW-SUPMEA-029
Manufactured by:
Specification
Type Insertion Medium Steady-state gases (except unstable media as acetylene and boron trichloride etc.) Diameter DN65~DN1000 Flow rate 0.1~100Nm/s Accuracy ±2.5% Working Temperature Sensor: -40~+300℃ Converter: -20~45℃ Working pressure ≤2.5 MPa Power supply 220VAC ; 24VDC, 18W Signal output 4~20mA, RS485 communication (Modbus RTU) Ingress protection IP65 Body Materials Stainless steel Relay 1~2 relay optional
Description
The thermal mass flow meter is designed based on the principle of thermal diffusion. The instrument uses the constant temperature difference method to accurately measure the gas. It has the advantages of small size, high degree of digitization, convenient installation and accurate measurement. Reduce your energy costs and increase your sustainability. Monitor your consumption and analyze your leakage flows with just one measuring device.
