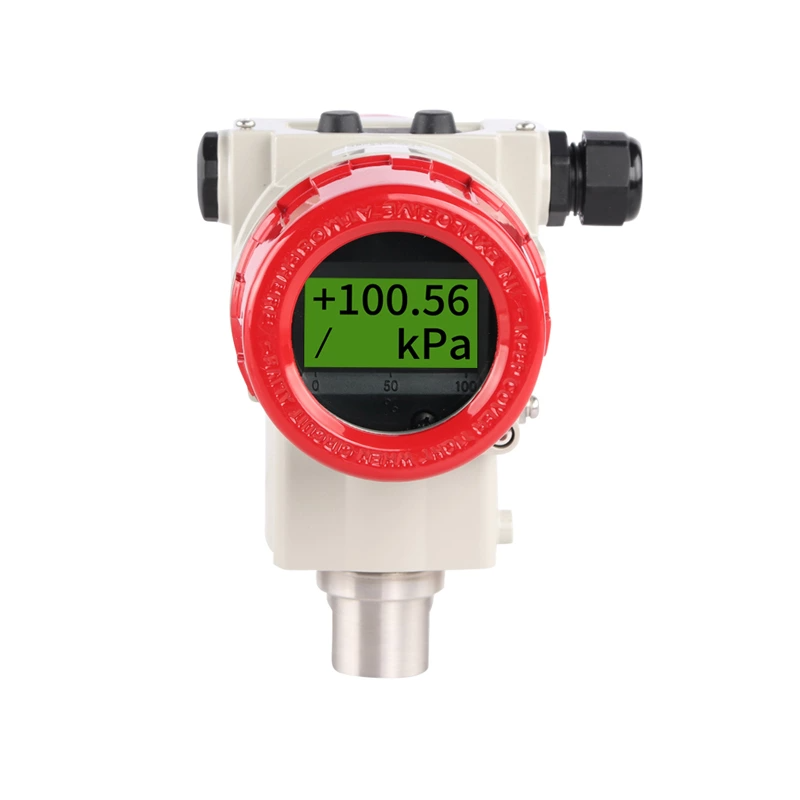

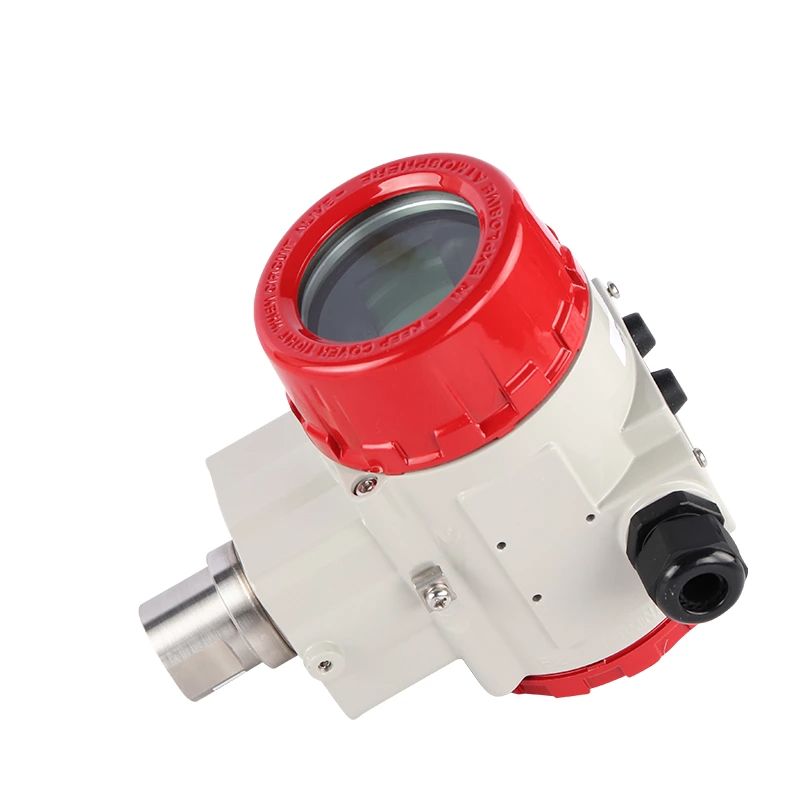

SUP-P3000 Pressure transmitter
-
NG # 00351-HW-SUPMEA-051
Manufactured by:
Specification
Product Pressure transmitter Model SUP-3000 Measure range 0～0.6kPa...60MPa (Gauge pressure); 0～2kPa... 3MPa (Adiabatic pressure) Indication resolution ±0.075%FS; ±0.1%FS Ambient temperature -40 ~ 85 ℃ Medium temperature -40~100℃ Storage temperature -50~85℃ Output signal 4-20mA analog output / with HART communication Diaphragm material 316L stainless steel Hastelloy C (custom) Process connection 316L stainless steel Fill oil Silicone oil Power supply 24VDC Long-term stability ±0.1%FS/3 years Inpress protection IP67
Description
SUP-3000 Pressure transmitter uses the unique and proven silicon sensor with state-of-the-art digital processing to provide exceptional performance in terms of accuracy, long term stability and functionalities. -0.1MPa~40MPa full detection range.
