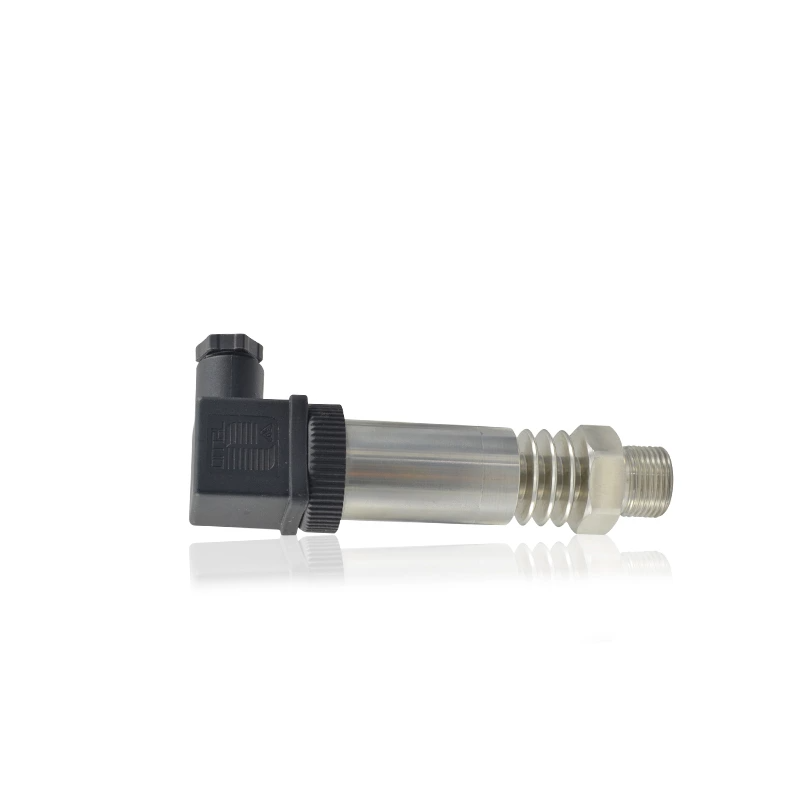

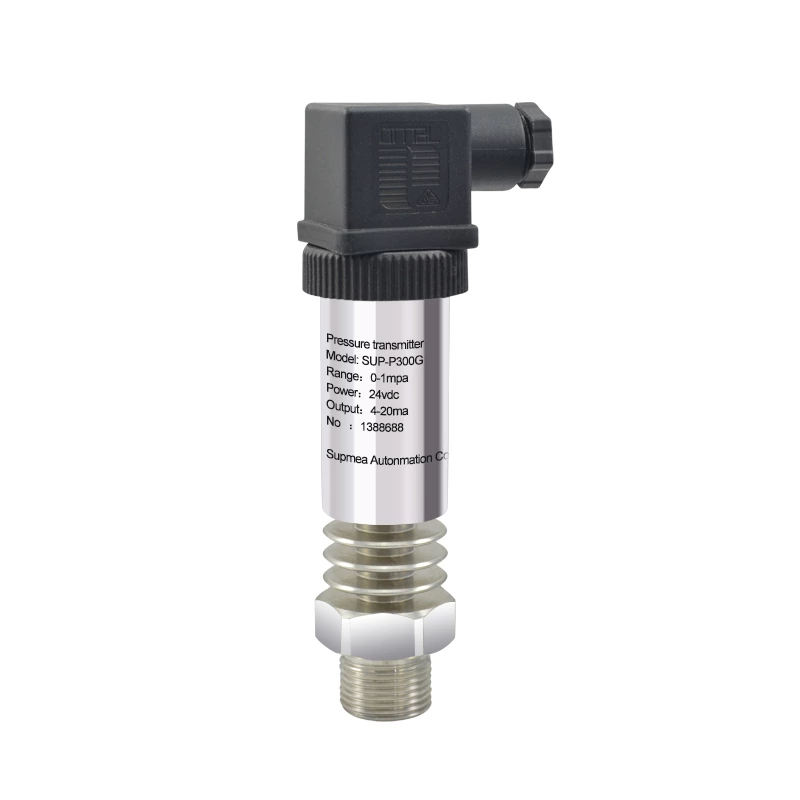

SUP-P300G High temperature pressure transmitter

  • NG # 00350-HW-SUPMEA-050

Manufactured by:

This seller generally responds in under 48 hours

Add to favorites | Compare this product

Specification

 Product High temperature Pressure transmitter
 ModelSUP-P300G
 Measuring range-0.1…0/0.01…60Mpa
 Display resolution0.5%
 Medium temperature-50-250°C
 Working temperature-20-85°C
 Output signal4-20mA Analog output
 Pressure typeGauge pressure, adiabatic pressure and sealed pressure
 Measure mediumLiquid; Gas; Oil etc.
 Pressure overload0.035...10MPa (150%FS)10...60MPa (125%FS)
 Power supply10-32V (4...20mA);12-32V (0...10V);8-32V (RS485)

Description

SUP-P300G is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output.
