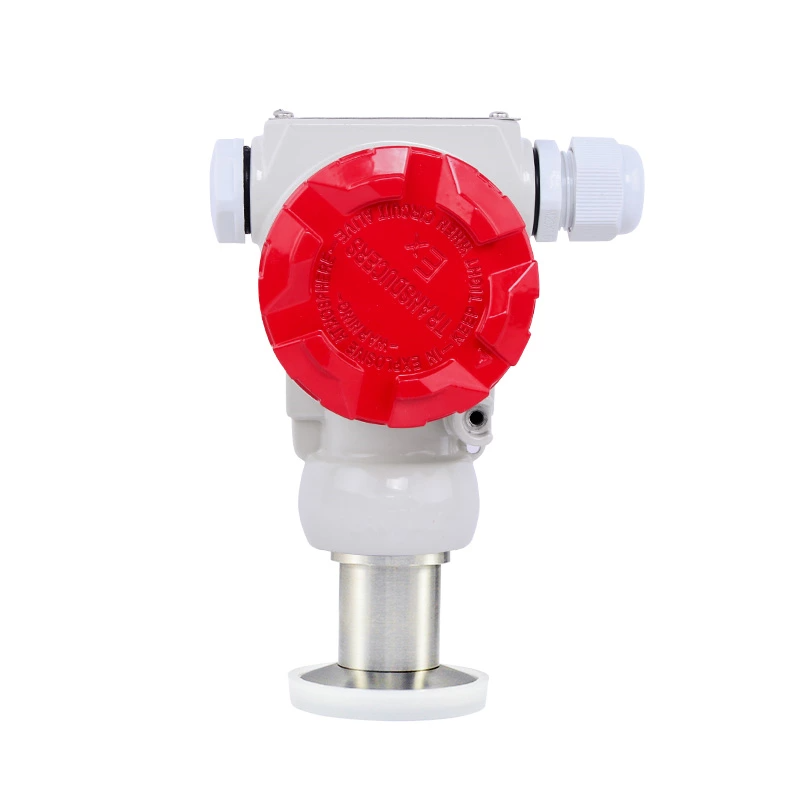

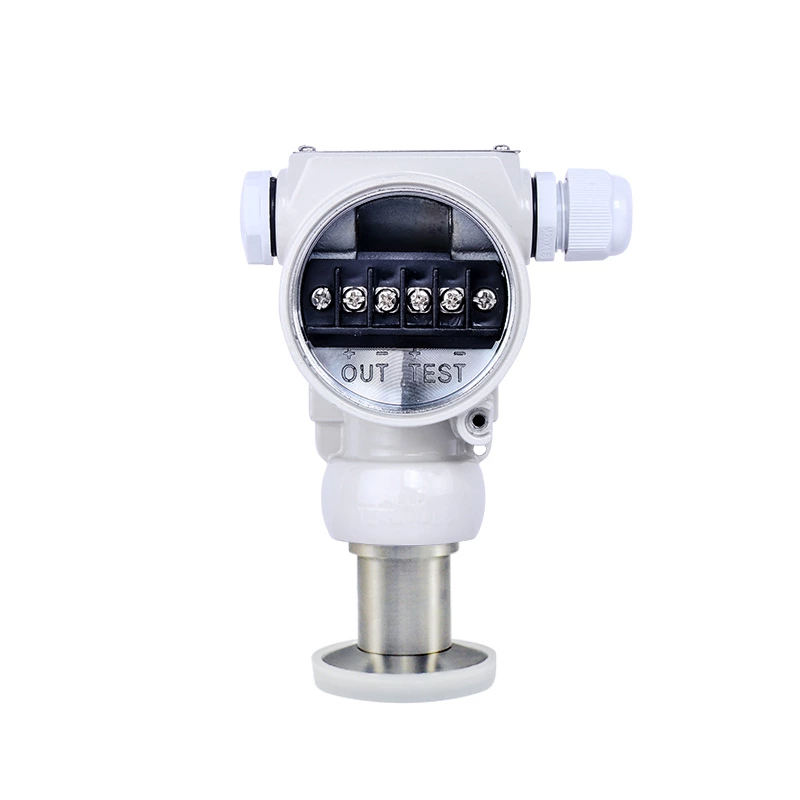

SUP-P450 2088 Membrane pressure transmitter
-
NG # 00353-HW-SUPMEA-053
Manufactured by:
Specification
Product 2088 Membrane Pressure transmitter Model SUP-P450 Measure range Thread: -0.1MPa... 0~10kPa...10MPa; Lathe dog: -0.1MPa... 0~10kPa...7MPa Indication resolution 0.5% Compensation temperature -10~70℃ Ambient temperature -10~85 ℃ Medium temperature -20~85℃ Storage temperature -40~85℃ Output signal 4-20mA analog output Pressure type Gauge pressure; Sealed pressure Measure medium Liquid; Gas; Oil etc. Pressure overload 150%FS Power 4~20mA with display: 12~30V 4~20mA no display: 9~30V 4~20mA+RS485: 12~30V 0~10V no display: 12~30V Ingress protection IP65
Description
SUP-P450 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output.
