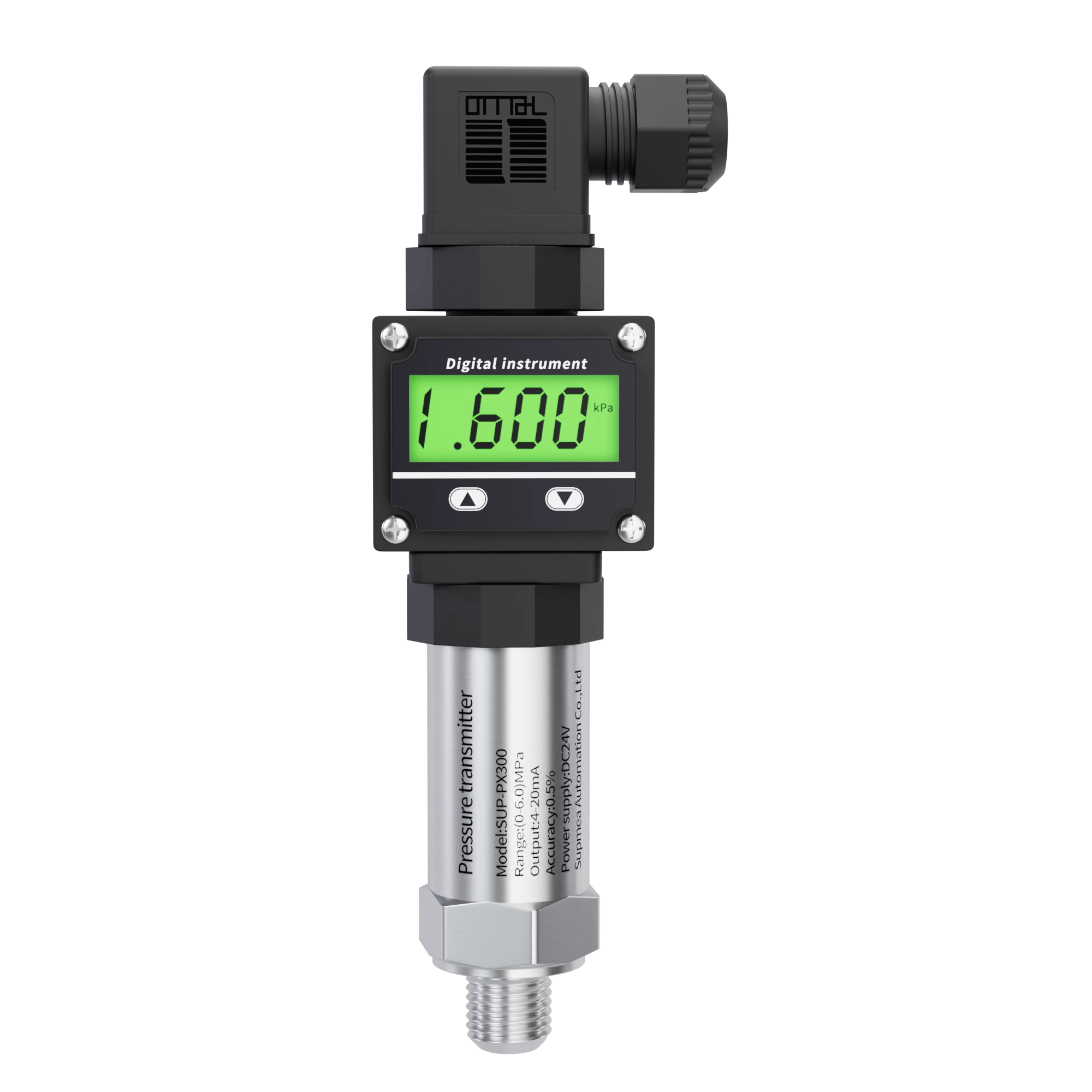

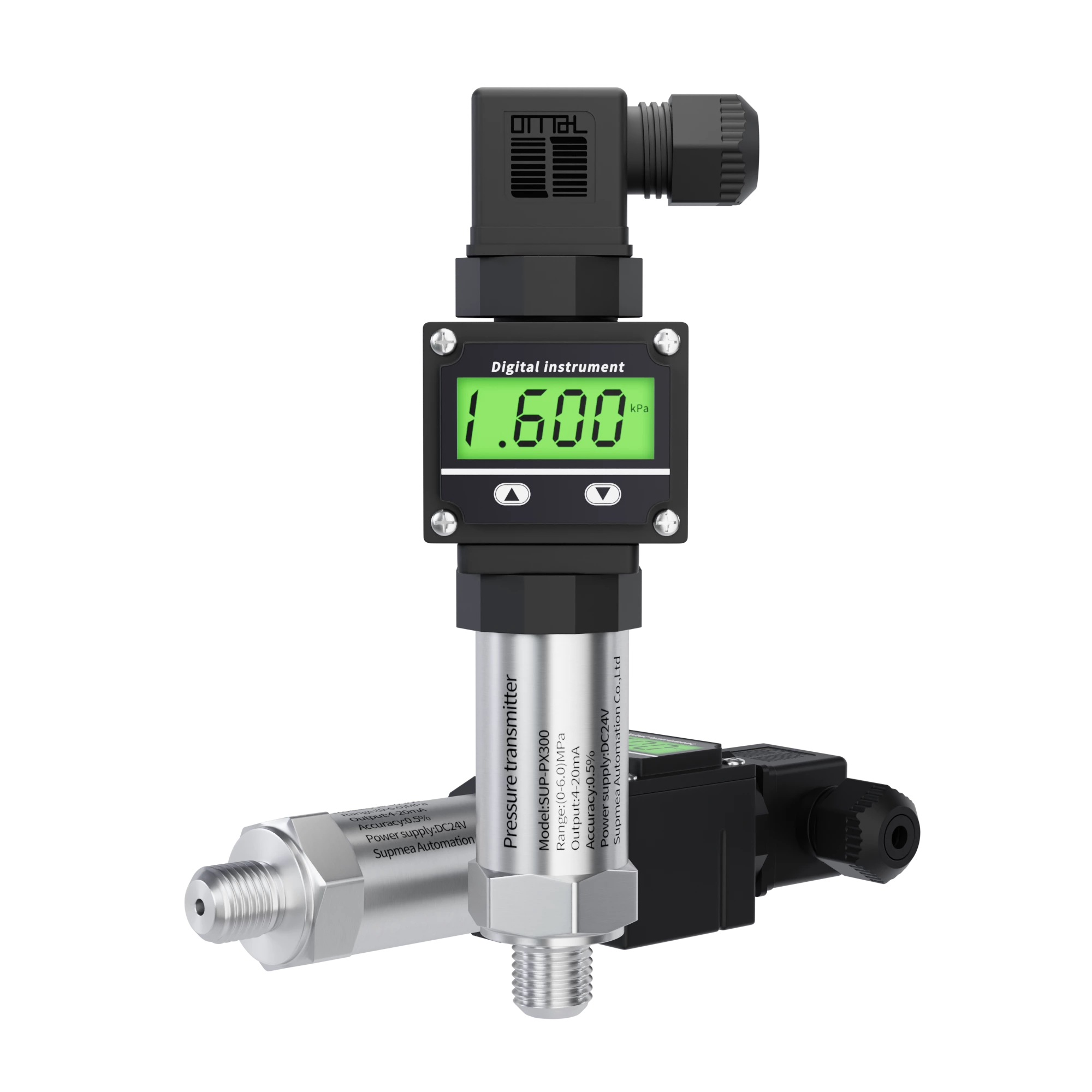

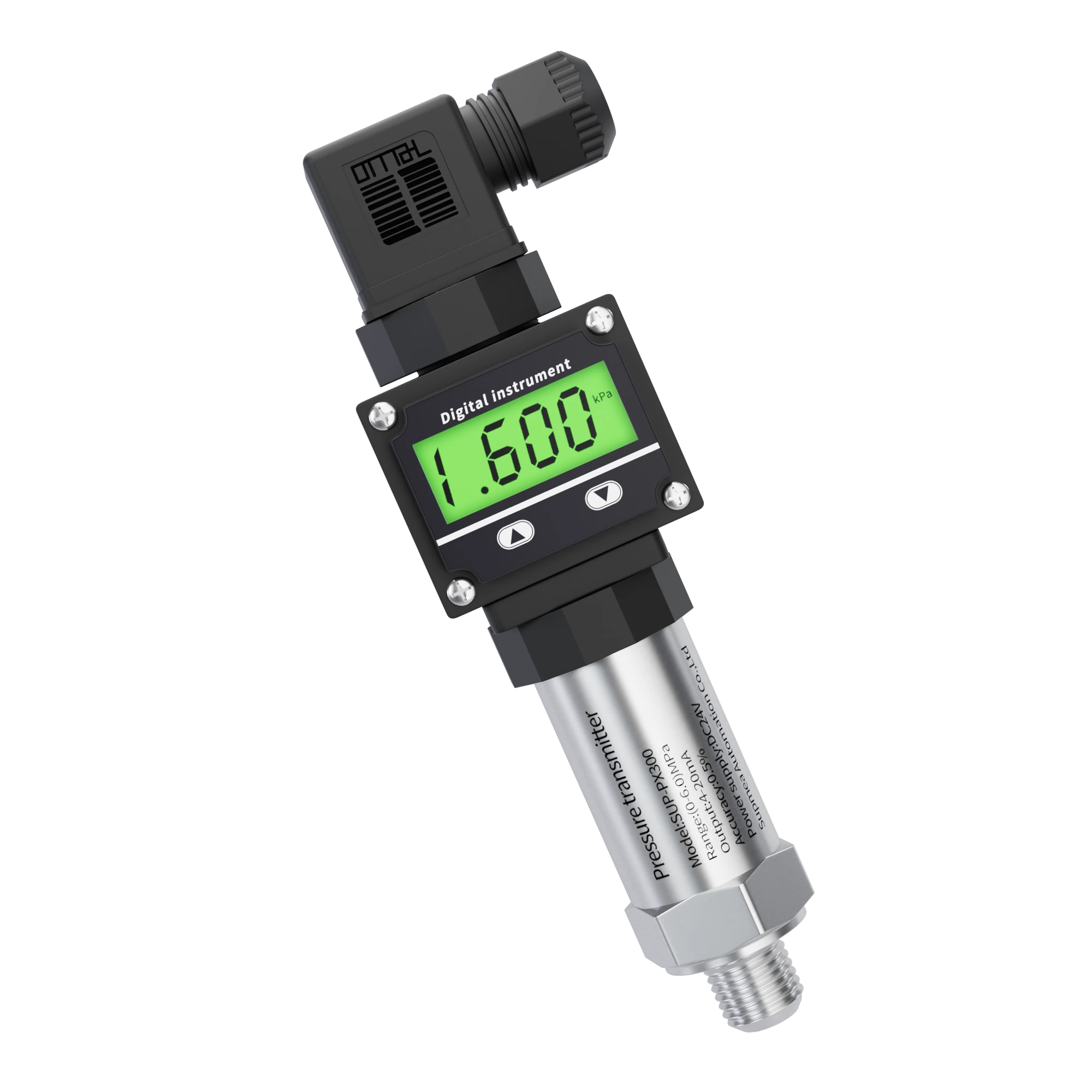

SUP-PX300 Pressure transmitter with display
-
NG # 00349-HW-SUPMEA-049
Manufactured by:
Specification
Product Pressure transmitter Model SUP-PX300 Measure range -0.1…0/0.01…60Mpa Indication resolution 0.5% Working temperature -20-85°C Output signal 4-20ma analog output Pressure type Gauge pressure, adiabatic pressure and sealed pressure Measure medium Liquid; Gas; Oil etc Pressure overload 0.035...10MPa（150%FS）10...60MPa（125%FS） Power 10-32V (4...20mA);12-32V (0...10V);8-32V (RS485)
Description
Pressure transmitter is a common sensor in industrial. Widely used in automatic control program like Water resources and hydropower, railway, building automation, aerospace, military project, petrochemical, electronic, marine etc. Pressure transmitter is used to measure the gas, steam’s level , density, and press. Then transform it into 4-20mA DC signal connecting to PC, control instrument etc.
