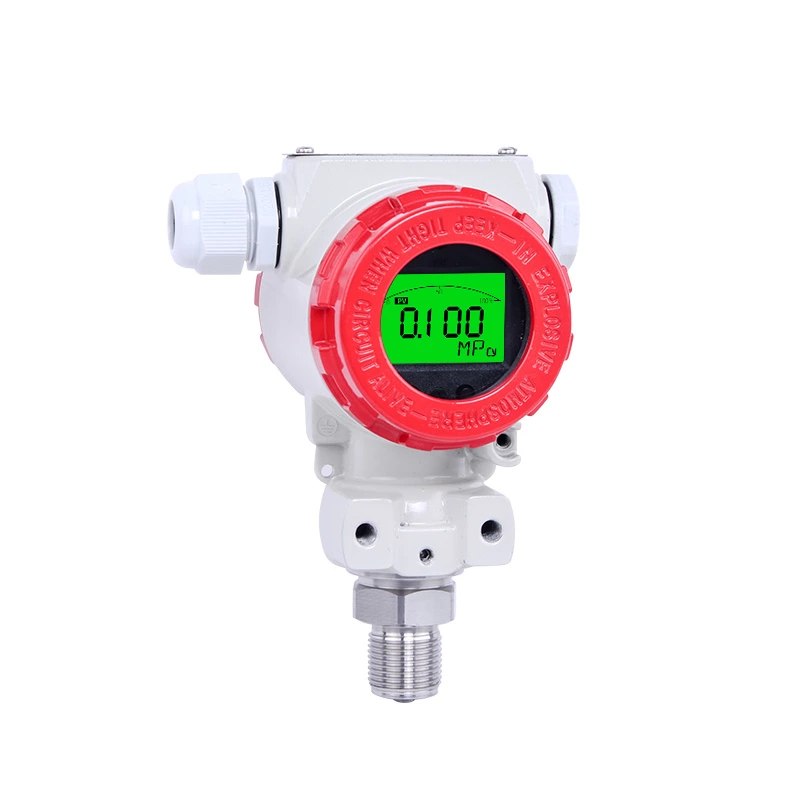

SUP-PX400 Pressure transmitter
-
NG # 00352-HW-SUPMEA-052
Manufactured by:
Specification
Product Pressure transmitter Model SUP-PX400 Measure range -0.1... 0/0.01... 60Mpa Pressure type Gauge pressure, adiabatic pressure and sealed pressure Accuracy 0.5% F.S Output signal 4~20mA; 1~5V;0~10V; 0~5V; RS485 Temperature compensation -10 ~ 70 ℃ Working temperature -20 ~ 85 ℃ Medium temperature -20 ~ 105 ℃ Storage temperature -40 ~ 125 ℃ Overload pressure (0.035~10)Mpa (150%FS); (10~60)Mpa (125%FS) Long-term stability ± 0.2%FS/year Ingress protection IP65,IP68(optional) Power supply 24VDC
Description
SUP-PX400 pressure transmitter take use of OEM all-welded pressure core body, miniature amplifier processing circuit. The products are widely used in industrial process control, petroleum, chemical, metallurgy and other industries.
