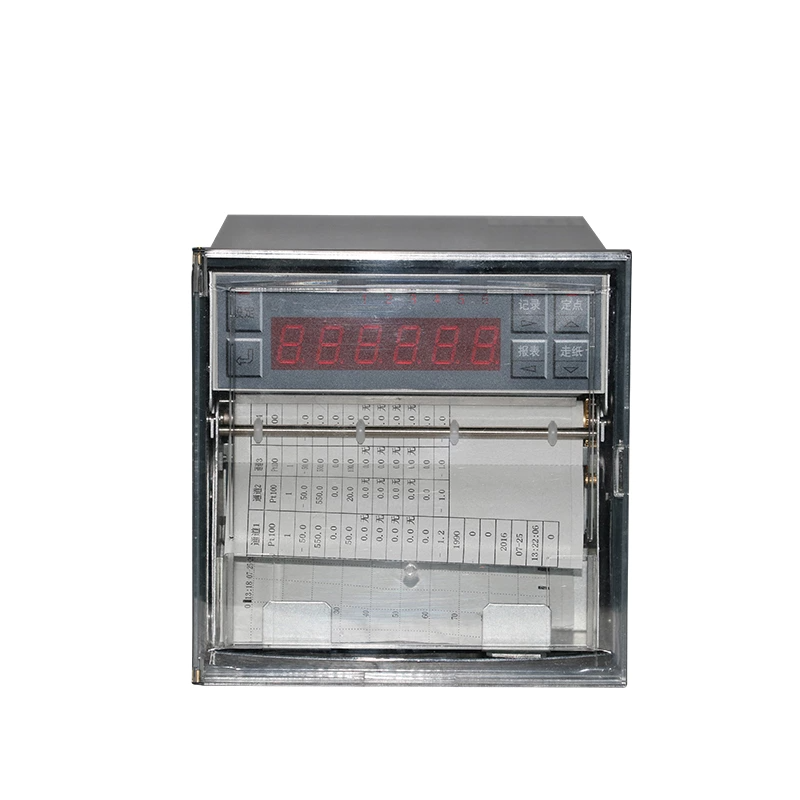

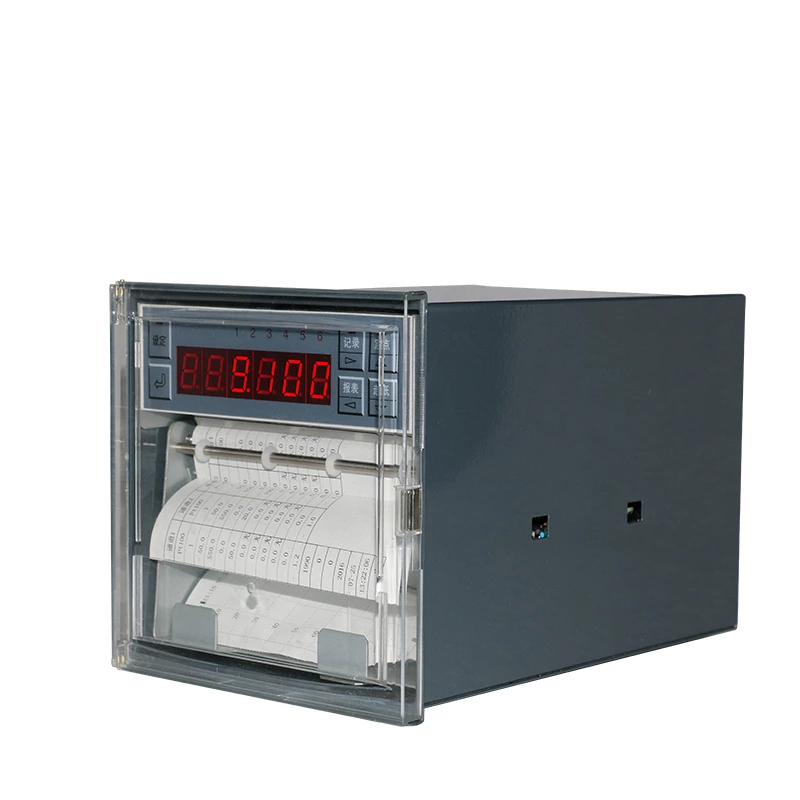

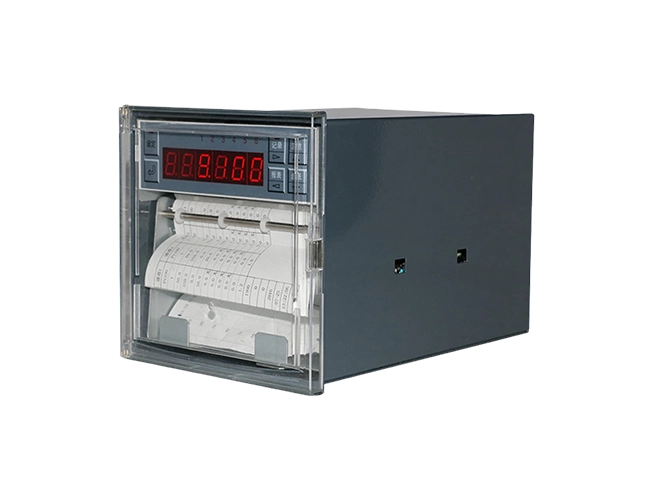

SUP-R1000 Chart recorder
-
NG # 00357-HW-SUPMEA-057
Manufactured by:
Specification
Display LED display Model SUP-R1000 Channel 1/2/3/4/5/6/7/8 Input Voltage: (0-5)V/(1-5)V/(0-20)mV/(0-100)mV Electric current: (0-10) mA/(4-20) mA Thermocouple: B ,E, K, S, T Thermal resistance: Pt100, Cu50, Cu100 Output Up to 2 current output channels(4 to 20mA) Sampling period 600ms Chart speed 10mm/h -- 1990mm/h Communication RS 232/RS485 (need Customization) Precision 0.2%FS Maximum power consumption Less than 30w Temperature range 0~50C Humidity range 0~85 % RH Power source 220VAC; 24VDC Dimensions 144*144*200mm Hole size 138+1* 138+1 mm
Description
SUP-R1000 recorder is a precision measuring instrument with perfect definition, high precision, and reliable, multi-functions, easy operated by using unique heat-printing record and advanced technology of microprocessor controlling. It can be recorded and printed uninterrupted.
