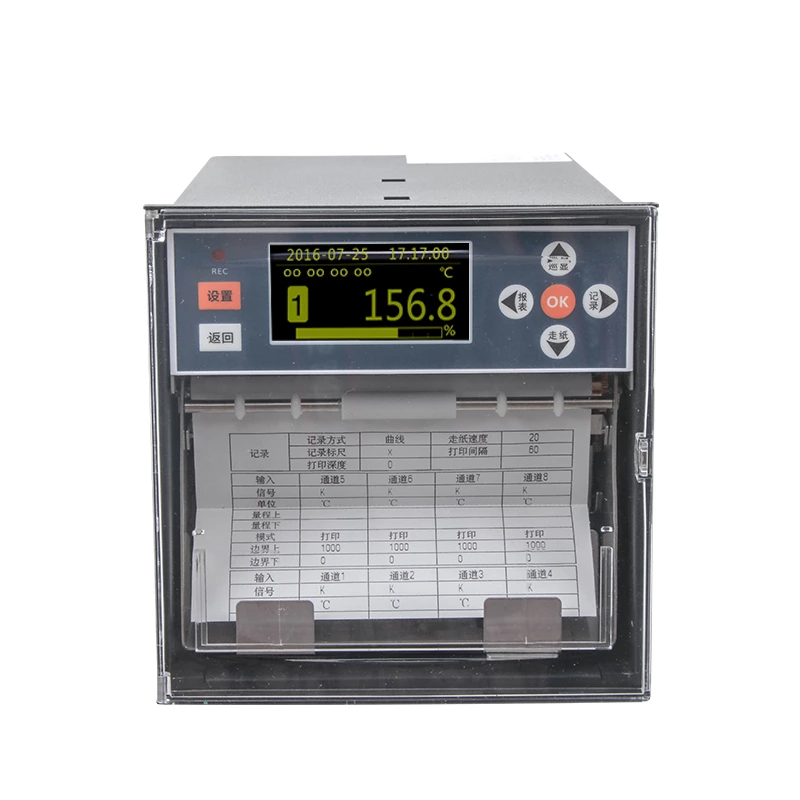

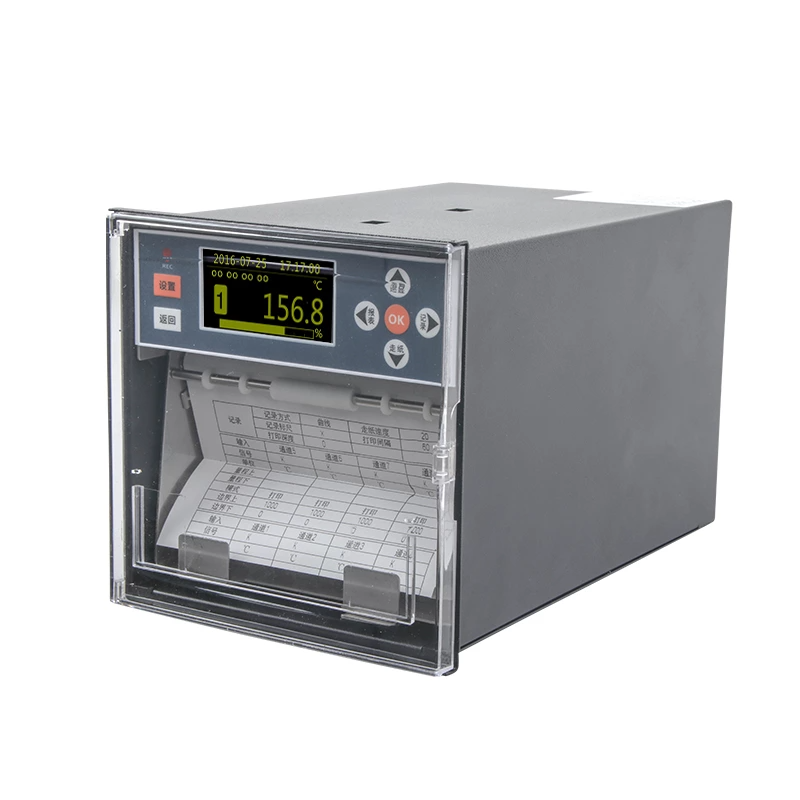

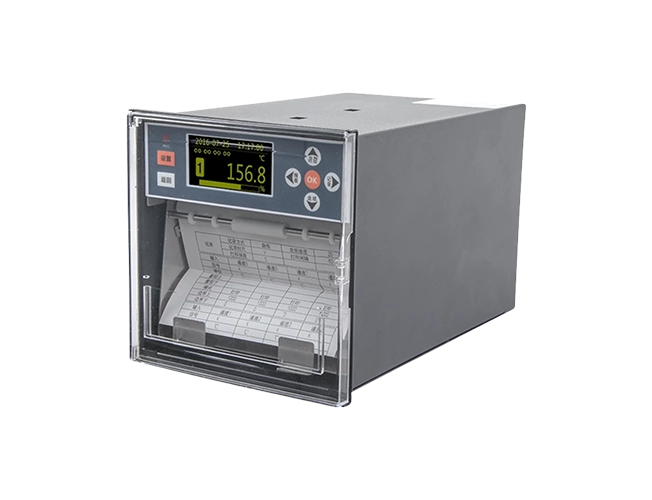

SUP-R1200 Chart recorder

  • NG # 00358-HW-SUPMEA-058

Manufactured by:

This seller generally responds in under 48 hours

Add to favorites | Compare this product

Specification

  Product  Paper recorder
  Model SUP-R1200
  Display LCD display screen
  Input Voltage: (0-5)V/(1-5)V/(0-20)mV/(0-100)mV  Electric current: (0-10)mA/(4-20)mA  Thermocouple: B, E, K, S, T  Thermal resistance: Pt100, Cu50, Cu100
  Output Up to 2 current output channels (4 to 20 mA)
  Sampling period 600ms
  Chart speed 10mm/h -- 1990mm/h
  Communication RS 232/RS485 (need Customization)
  Power supply 220VAC; 24VDC
  Precision 0.2%FS
  Shorter mounting depth  144mm
  DIN panel cutout 138*138mm

Description

SUP-R1200 chart recorder is a precision measuring instrument with perfect definition, high precision, and reliable, multi-functions, easy operated by using unique heat-printing record and advanced technology of microprocessor controlling. It can be recorded and printed uninterrupted.
