SUP-R8000D Paperless recorder
-
NG # 00356-HW-SUPMEA-056
Manufactured by:
Specification
Input signal type Ⅱ standard signal: (0 ~ 10) mA, (0 ~ 5) V Ⅲ standard signal: (4 ~ 20) mA, (1 ~ 5) V 14 thermocouples: B, E, J, K, S, T, R, N, WRe5-26, WRe3-25, BA1, BA2, F1, F2 3 kinds of thermal resistance: Pt100, Cu50, JPt100 Other signals (0-20) mv, (0-100) mv, (-10-10) v, (0-10) v, (-5-5) v, (0-1) v, ) V, resistance 0-350Ω, frequency 0-10KHZ Isolation Isolation between channels and ground Resistant to heat greater than 500VAC, isolation between channels and channels Withstanding voltage> 250VAC Powered by Voltage (100 ~ 240) VAC Frequency (47 ~ 63) Hz The maximum power consumption 30VA Fuse specifications 3A / 250VAC, slow blow type Distribution output Each loop 65ma, 24VAC, up to 8 loops Alarm output Up to 24 channels, 250VAC, 3A normally open relay contacts Simulated transmission output Up to 8 Road 4-20ma transmission output Hardware watchdog Integrated WATCHDOG chip, to ensure long-term safe and reliable host operation Real time clock Using hardware real-time clock, power-down by the lithium battery, the maximum clock error ± 1 minute / month Power-down protection All data is saved in NAND FLASH memory, ensuring that all historical data and configuration are lost due to power loss Communication Interface Provide RS-485 and RS232 two kinds of communication interface for users to choose, can be Ethernet connection, but also with the panel printer connection Protocol Using R-Bus or ModBus protocol, the communication baud rate has 5 options, 1200 bps, 9600 bps, 19200 bps, 57600 bps and 115200 bps The sampling period 1 second, that is, 1 second on each channel are sampled once Record interval 1S, 2S, 5S, 10S, 15S, 30S, 1min, 2min, 4min optional Display 10.4 inches 640 * 480, 64 color TFT true color liquid crystal display Size Overall dimensions 288mm * 288mm * 244mm, hole size 282mm * 282mm Brightness 0 ~ 100% adjustable Alarm display Up to 256 alarm displays can be displayed Alarm type Upper limit alarm, upper limit alarm, lower limit alarm, lower limit alarm Accuracy class Numerical accuracy of 0.2% FS Curve accuracy 0.5% FS Data retention period About 10 years
Description

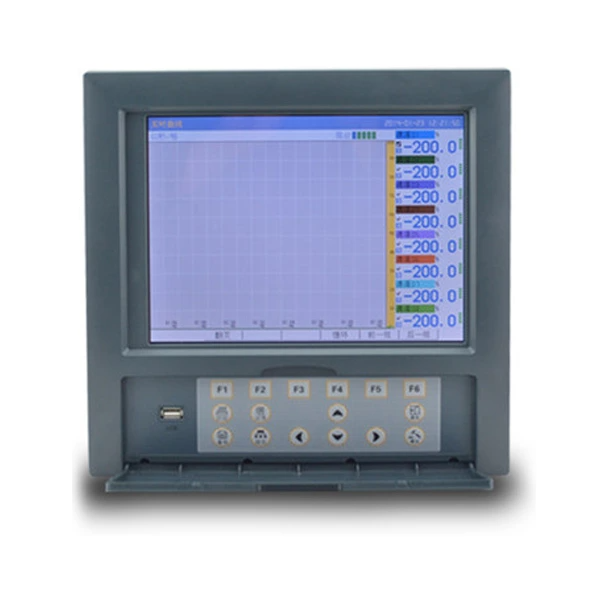

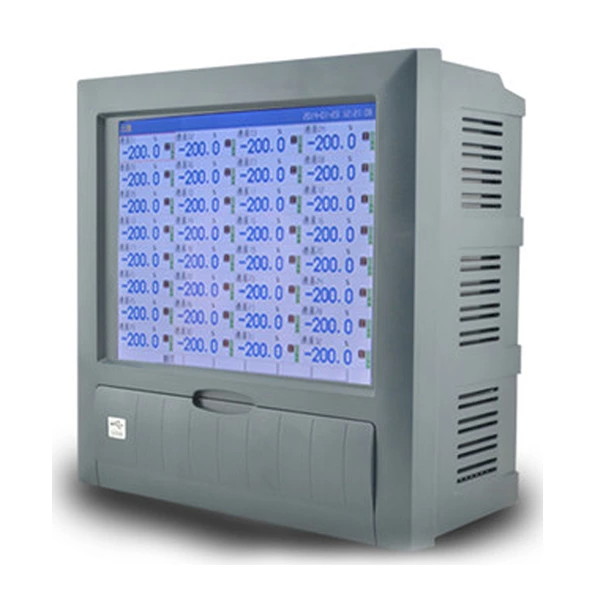

Inputs channel: Up to 40 channels of universal input Power supply: 220VAC，50Hz Display: 10.41 inches TFT display Output: alarm output, RS485 output Dimensions: 288 * 288 * 168mm
