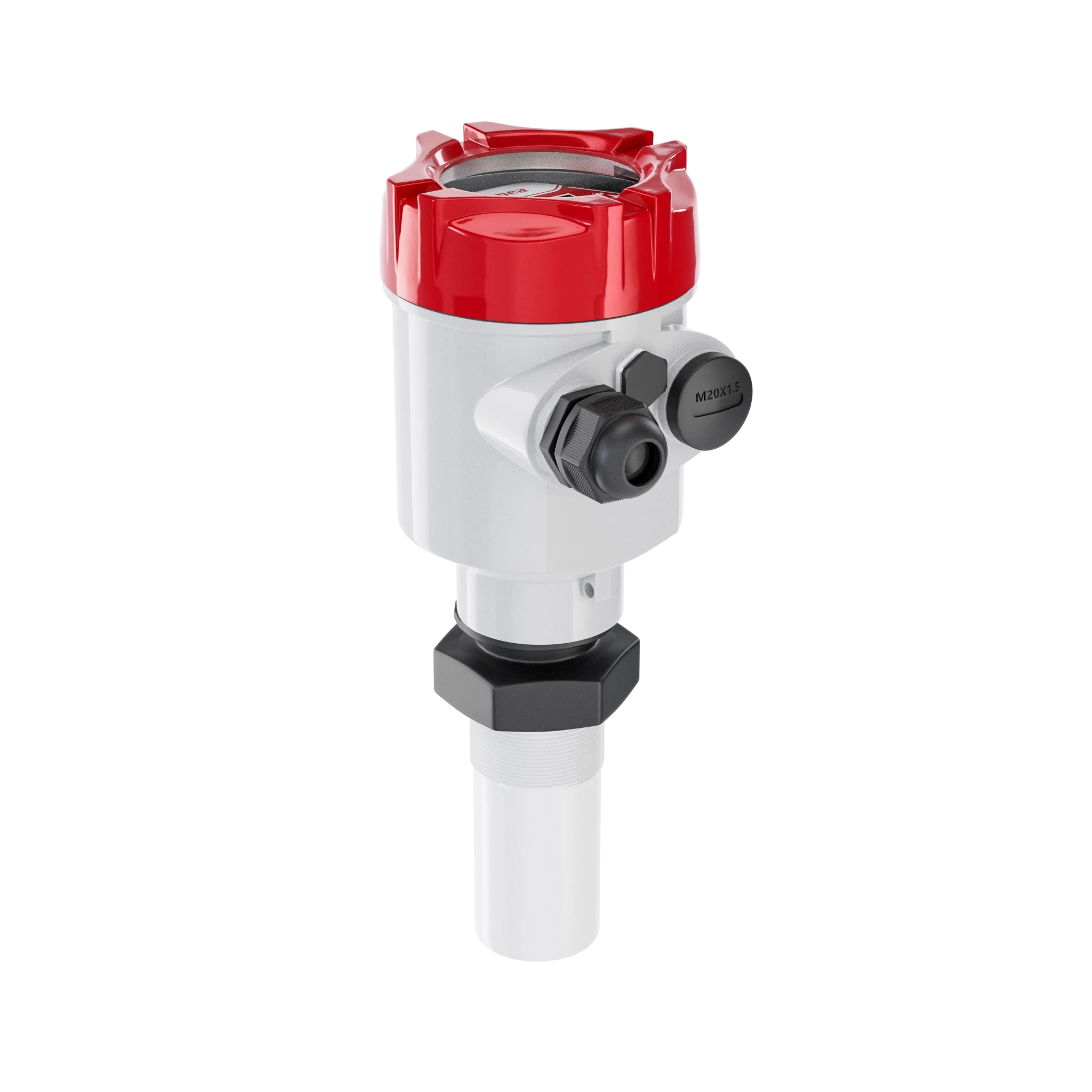

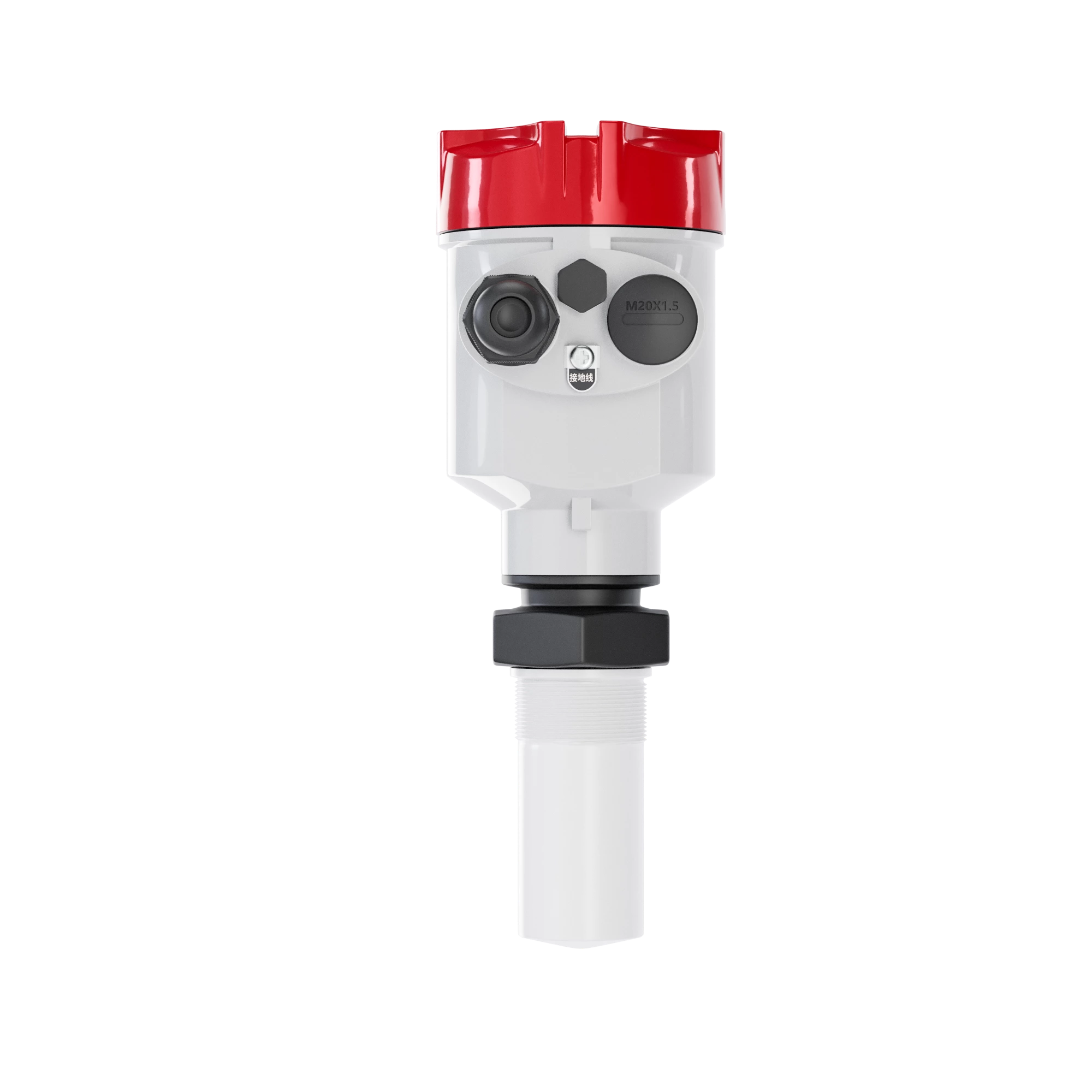

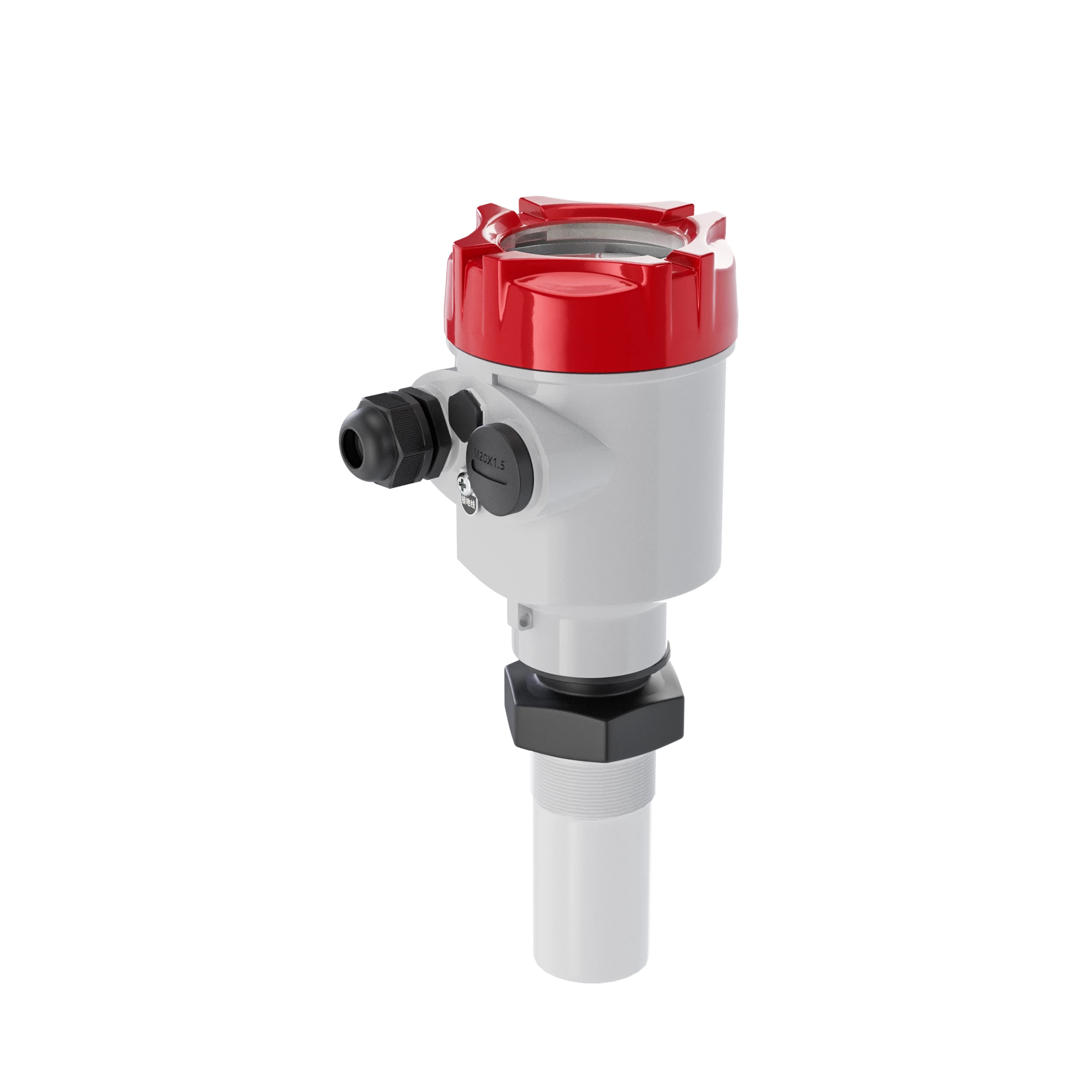

SUP-RD901 Radar level meter for corrosive liquid
-
NG # 00344-HW-SUPMEA-044
Manufactured by:
Specification
Product Radar level meter Model SUP-RD901 Accuracy ±5mm(range 5m)
±10mm(range 10m) Application Corrosive liquid Process Connection Thread, Flange Medium Temperature -40℃~130℃ Process Pressure -0.1~0.3MPa Protection Grade IP67 Frequency Range 26GHz Signal Output 4-20mA /HART（2-wire / 4-wire） RS485/Modbus Power supply DC(6~24V)/ Four-wire
DC 24V / Two-wire
Description
SUP-RD901 Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
