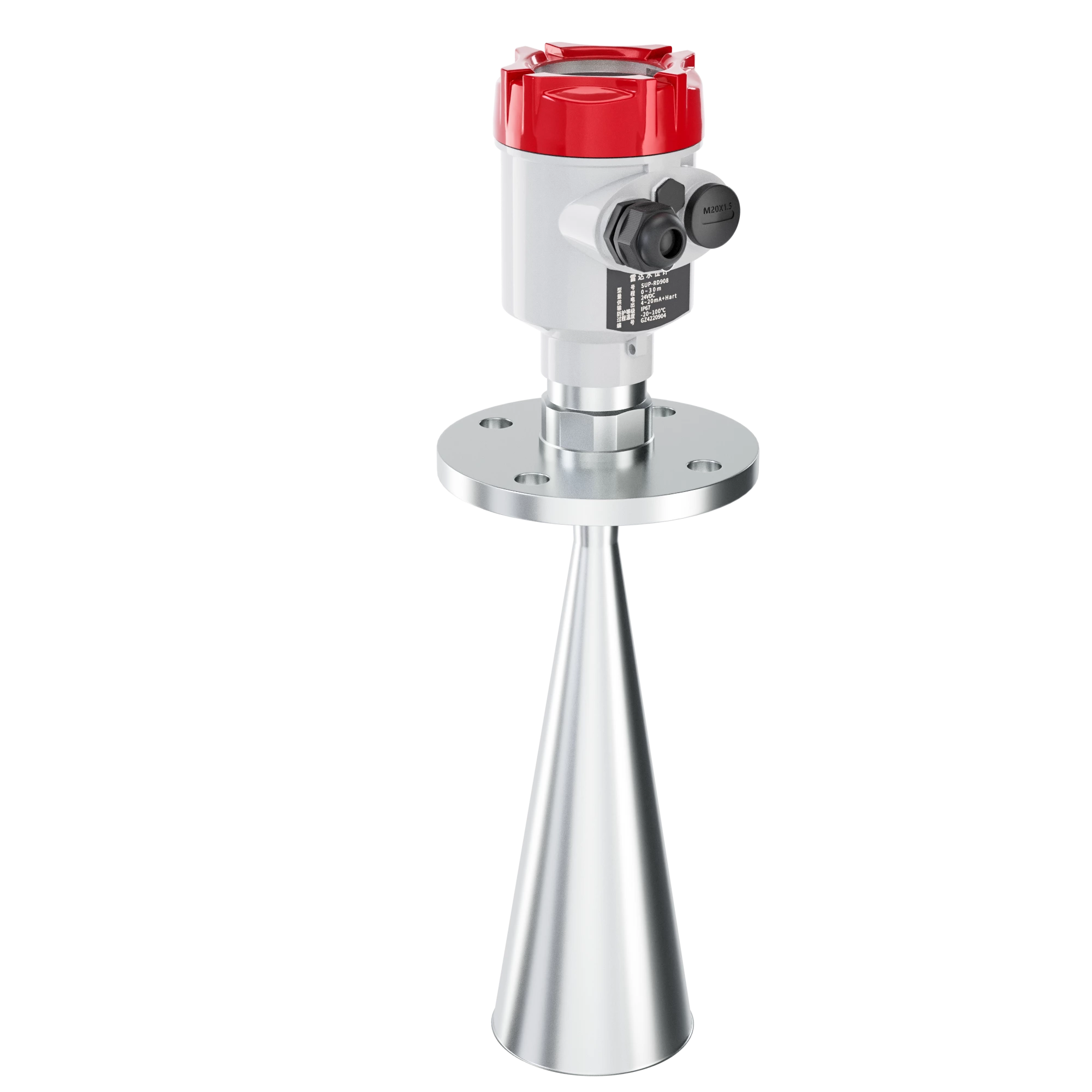

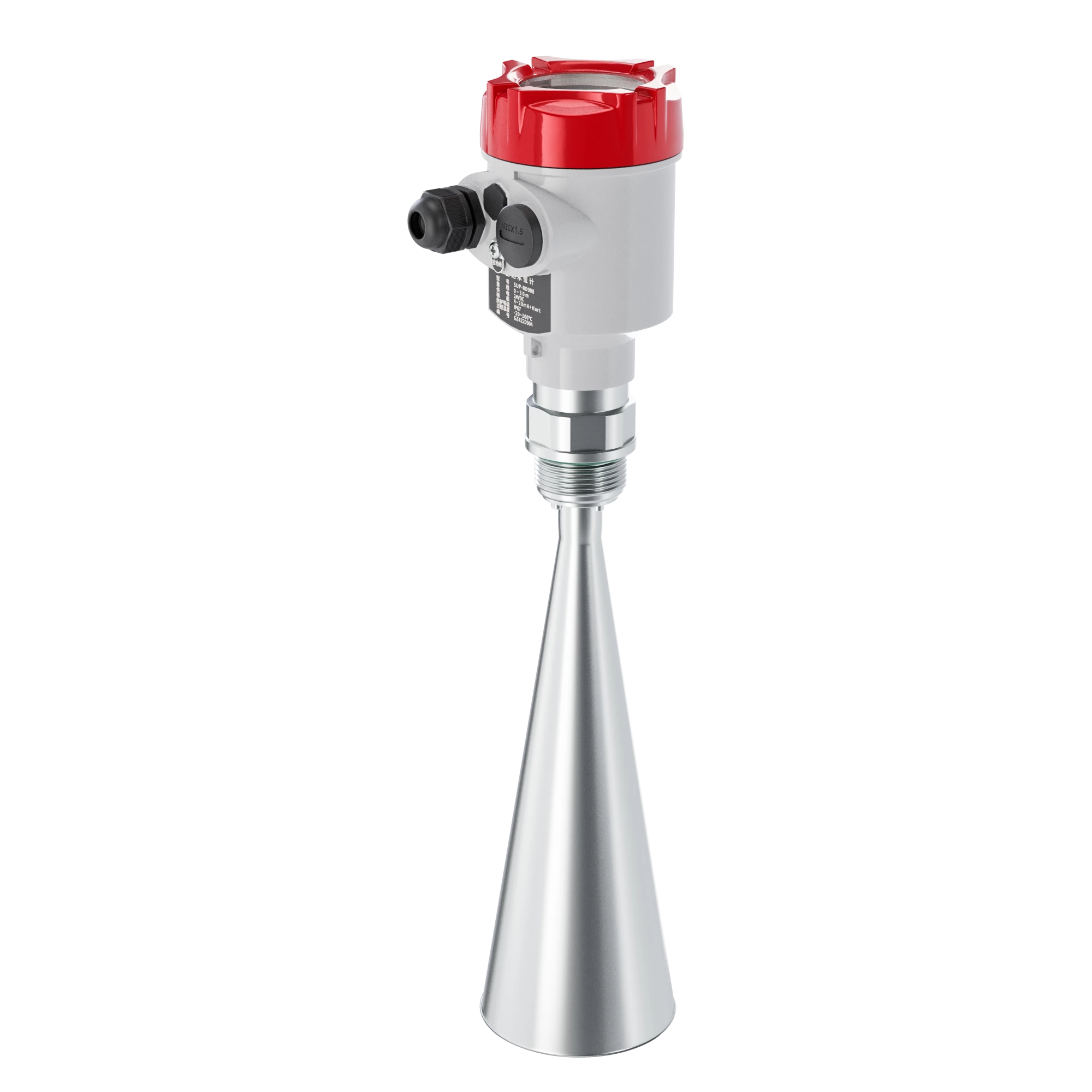

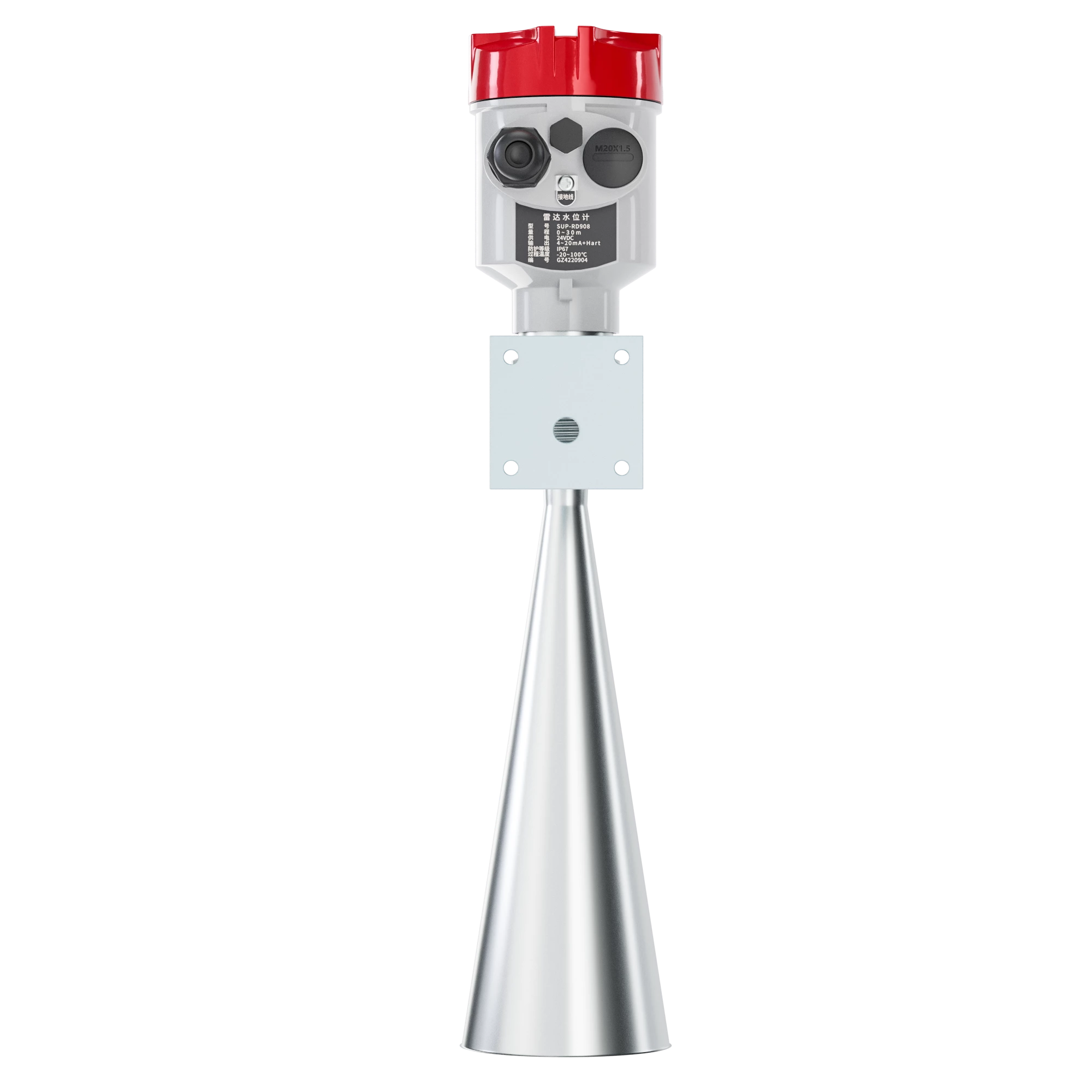

SUP-RD902 26GHz Radar level meter
-
NG # 00346-HW-SUPMEA-046
Manufactured by:
Specification
Product Radar level meter Model SUP-RD902 Accuracy ± 3mm Application Slightly corrosive liquid Process Connection Thread, Flange Medium Temperature -40℃~130℃ (Standard type), -40℃~250℃ (High temp type) Process Pressure -0.1~4.0MPa Protection Grade IP67 Frequency Range 26GHz Signal Output 4-20mA/HART (Two-wire/Four) RS485/Modbus Power supply DC(6~24V)/ Four-wire
DC 24V / Two-wire
Description
SUP-RD902 Non-contact radar level meter with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
