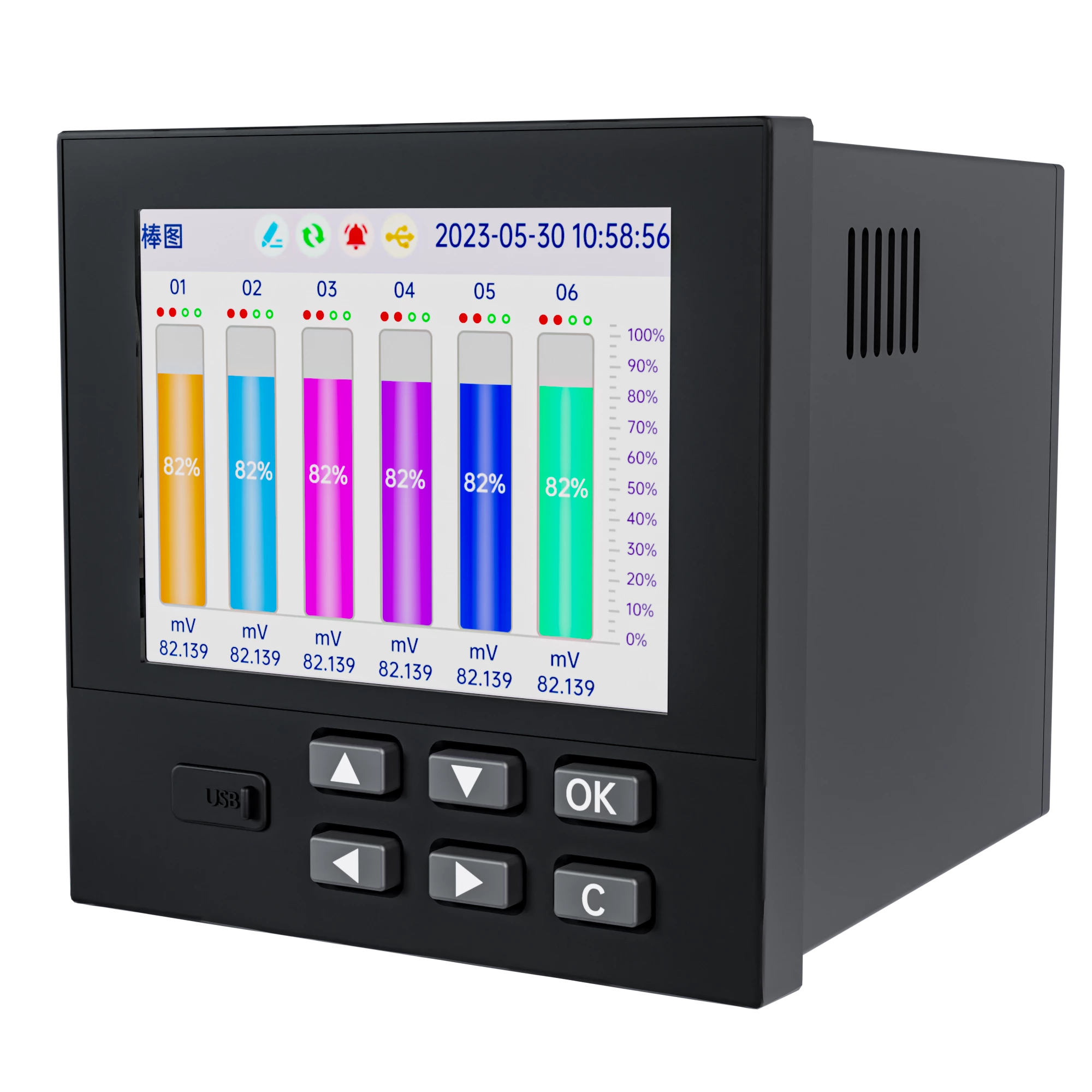

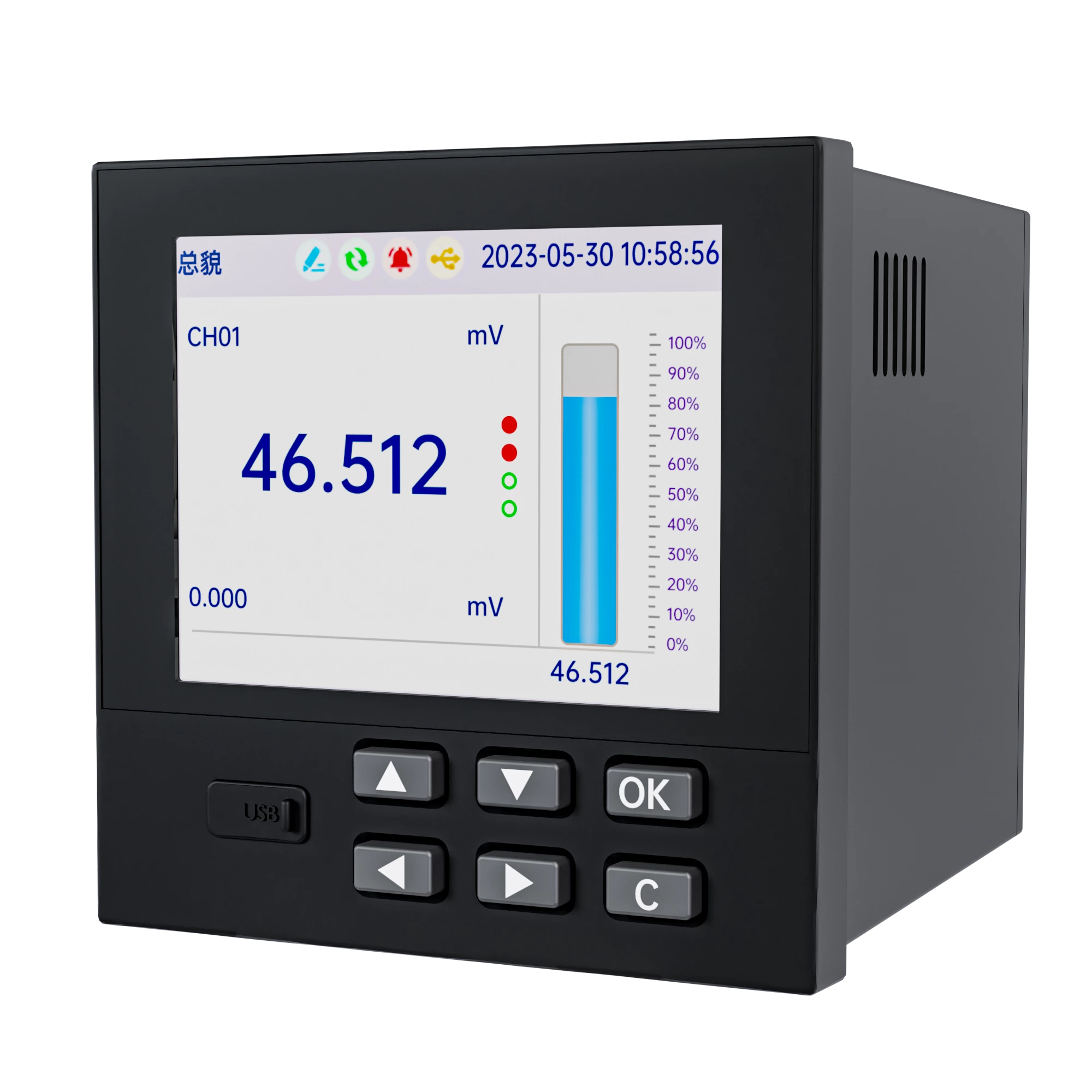

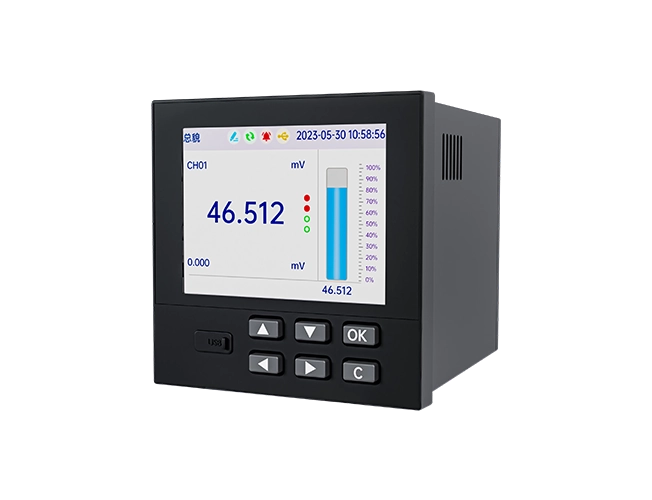

SUP-RN3000 18-channel analog signal input paperless recorder
-
NG # 00362-HW-SUPMEA-062
Manufactured by:
Specification
Product Paperless recorder Model RN3000 Screen size 3.5-inch TFT true color LCD screen.
Resolution is 320 * 240
High definition LED backlight.Dimension Dimension：96mm×96mm×100mm
Cutout dimension：92mm×92mmPanel thickness 1.5mm~6.0mm Weight 0.37kg Power supply (85~264)VAC，(47~63)Hz (24VDC can be customized) Internal storage 64M Bytes Flash (96M,128M can be customized) External storage U disk support (standard USB2.0 communication interface) Maximum power consumption 10W Relative humidity (10~85)%(No condensation) Operating temperature (0~50)℃ Storage conditions Temperature: (-20~60)℃
Relative humidity: (5~95)%RH(No condensation)
Description
This product has a 18-channel analog signal input channel, 4-channel relay alarm output channel, 1-channel150mA distribution output channel,1-channel RS-485 communication interface ,and a USB data dump interface.This product has online firmware upgrade function, which can be done through a USB flash drive or 485 interface. It supports customized writing of the startup interface and screenshot display function.
