SUP-ST500 Temperature transmitter programmable

  • NG # 00367-HW-SUPMEA-067

Manufactured by:

This seller generally responds in under 48 hours

Add to favorites | Compare this product

Specification

Input
Input signal Resistance temperature detector (RTD),  thermocouple (TC), and linear resistance.
Cold-junction compensation temperature scope -20~60℃
Output
Output signal 4-20mA
Load resistance RL≤(U-10)/0.021
Output current of upper and lower limit overflow alarm IH=21 mA, IL=3.8 mA
Power supply
Power supply (12-40)VDC
Other parameters
Response time Reach to 90% of the final value for 1s
Used environmental temperature -40~80℃
Storage temperature -40~100℃
Vibration resistance4g/2~150Hz
Electromagnetic compatibility Conform to GB/T18268 industrial equipment  application requirements(IEC 61326-1)

Description

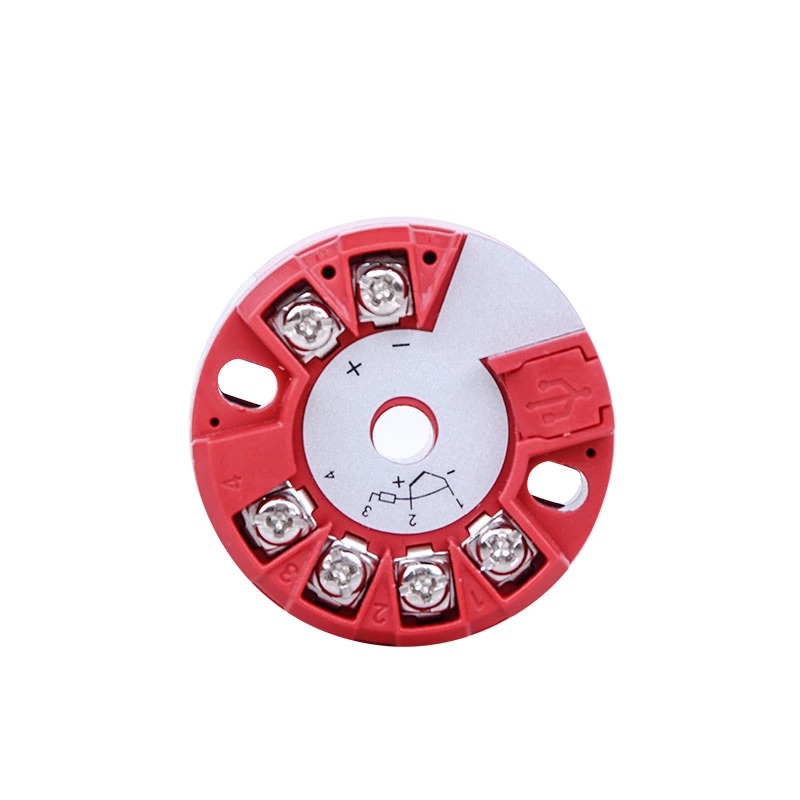

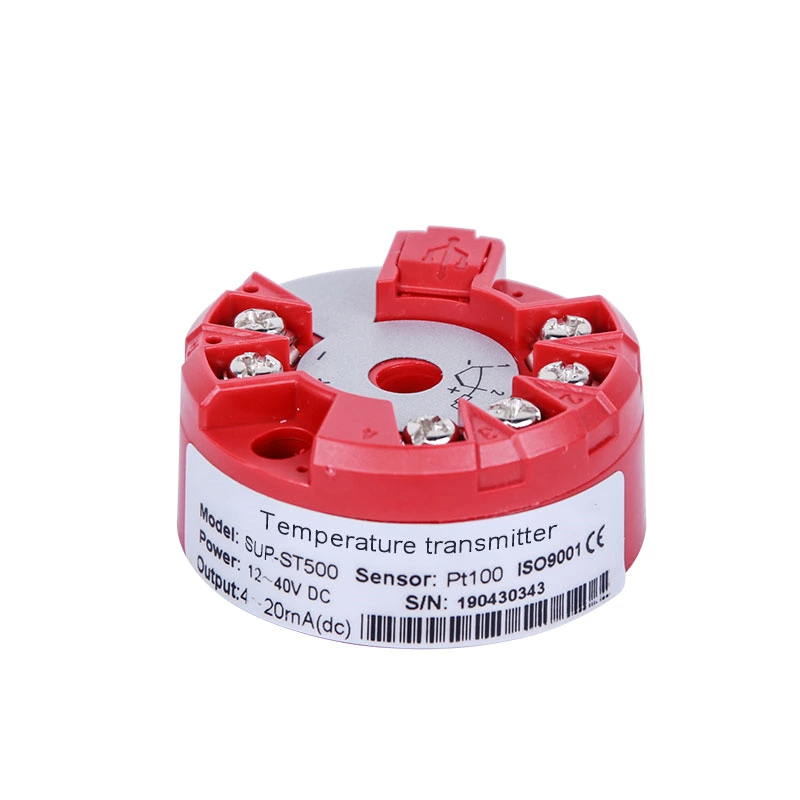

SUP-ST500 Head Mounted Smart Temperature transmitter can be used with multiple sensor type [Resistance Thermometer(RTD),Thermocouple (TC)] inputs, is simple to install with improved measurement accuracy over wire-direct solutions.
