Supmea FCC-300 Coriolis Mass Flowmeter
-
NG # 00328-HW-SUPMEA-028
Manufactured by:
Specification

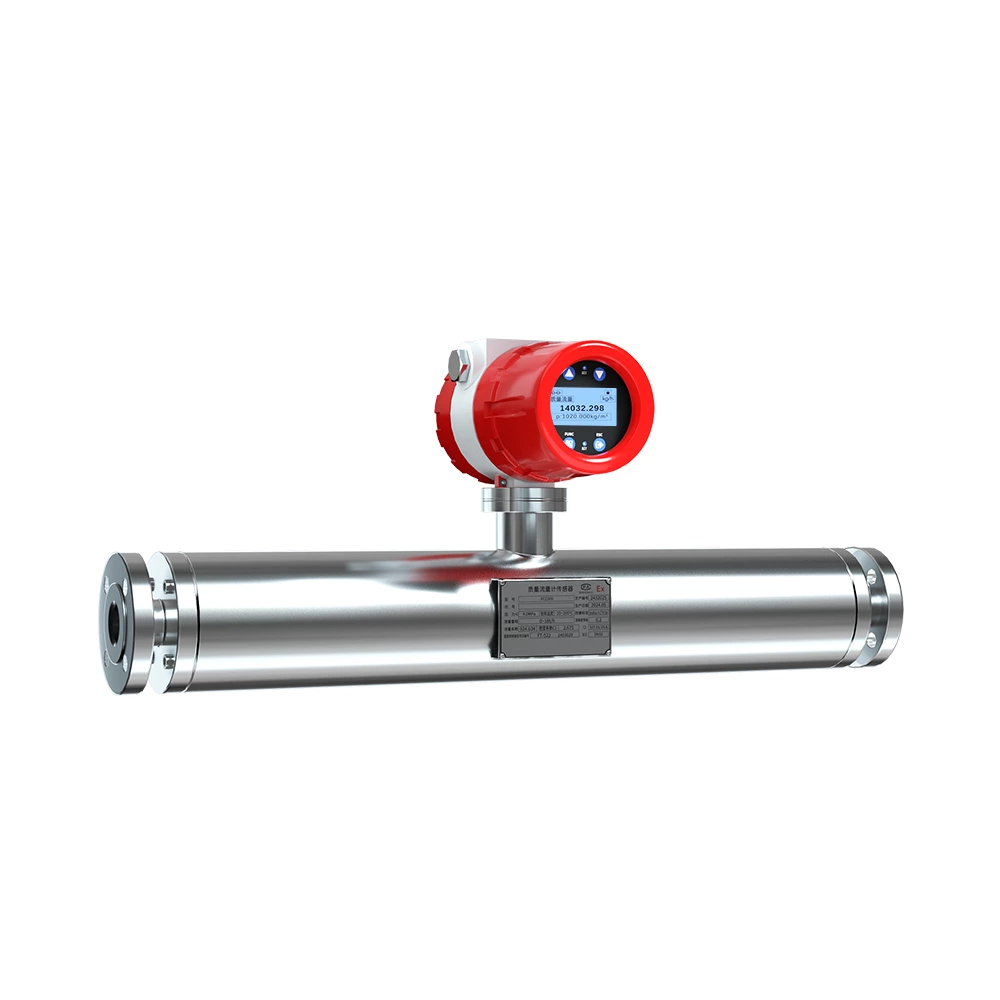

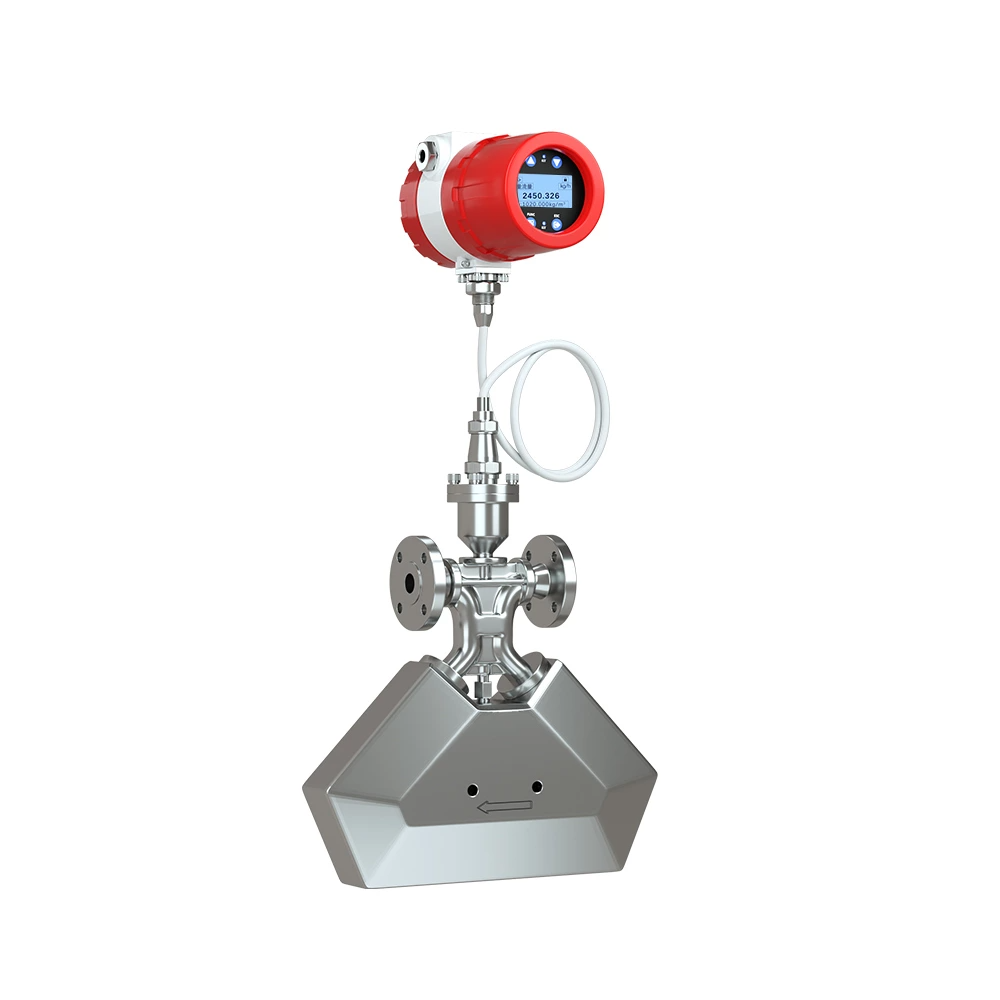

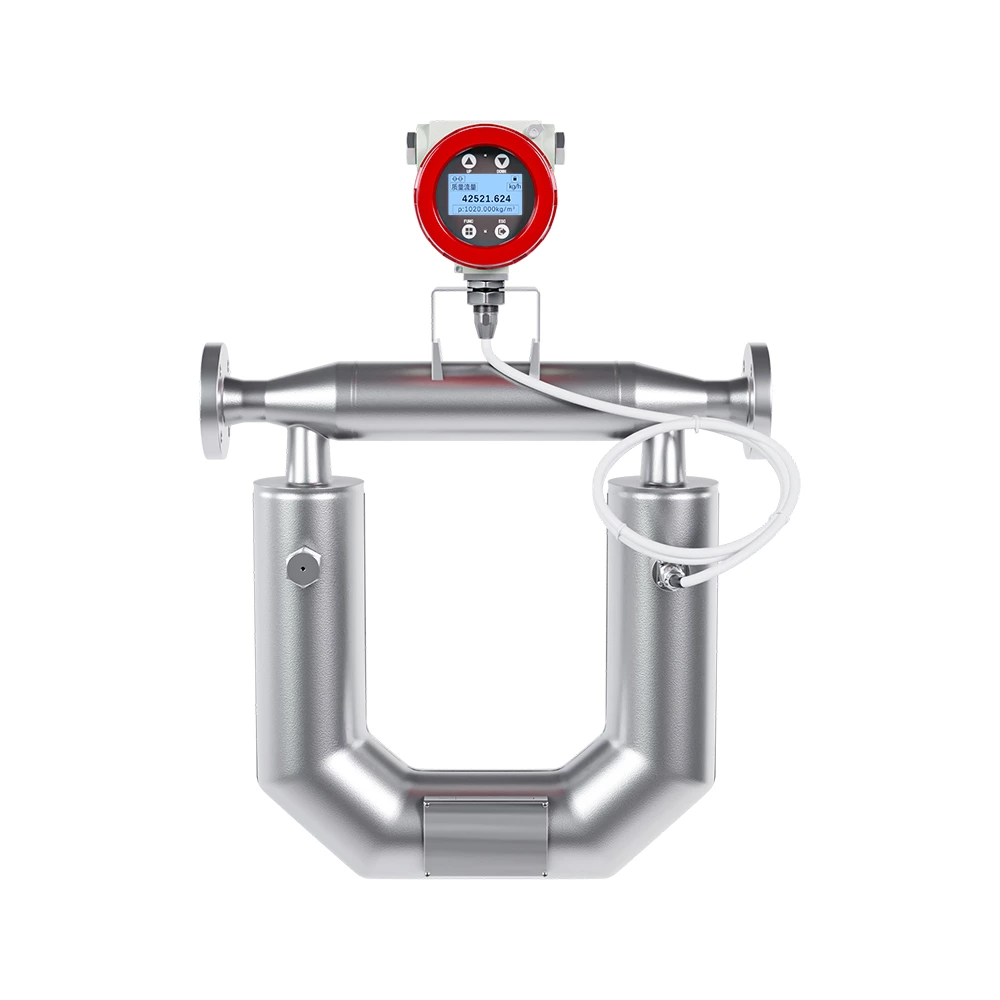

Diameter U-type:DN20~DN150; Triangular:DN3~DN15; Straight Tube:DN8~DN80 Measurand Mass flow,density,temperature Density accuracy earth 0.002g/cm³ Accuracy 0.1%,0.15%,0.2% Temperature -40~+60℃ Power consumption <15W Power supply 220VAC ; 24VDC Signal output 4~20mA, RS485, HART Ingress protection IP67 Density range (0.3~3.000)g/cm³ Repeatability 1/2 of the measurement error Medium temperature Standard type: (-50～200)℃, (-20～200)℃; High temperature type: (-50～350)°C; Low-temperature type: (-200～200)°C Process pressure (0~4.0)MPa Humidity 35%~95% Transmission output (4～20) mA, output load (250～600) Ω
Description
Coriolis mass Flow Meter is a new type of flow measurement instrument developed according to the principle of Coriolis force. It can directly measure the mass flow rate of fluid in closed tubeline, medium density and temperature. It can be widely used in chemical industry, petroleum, food, pharmaceutical, paper making and other industries.
