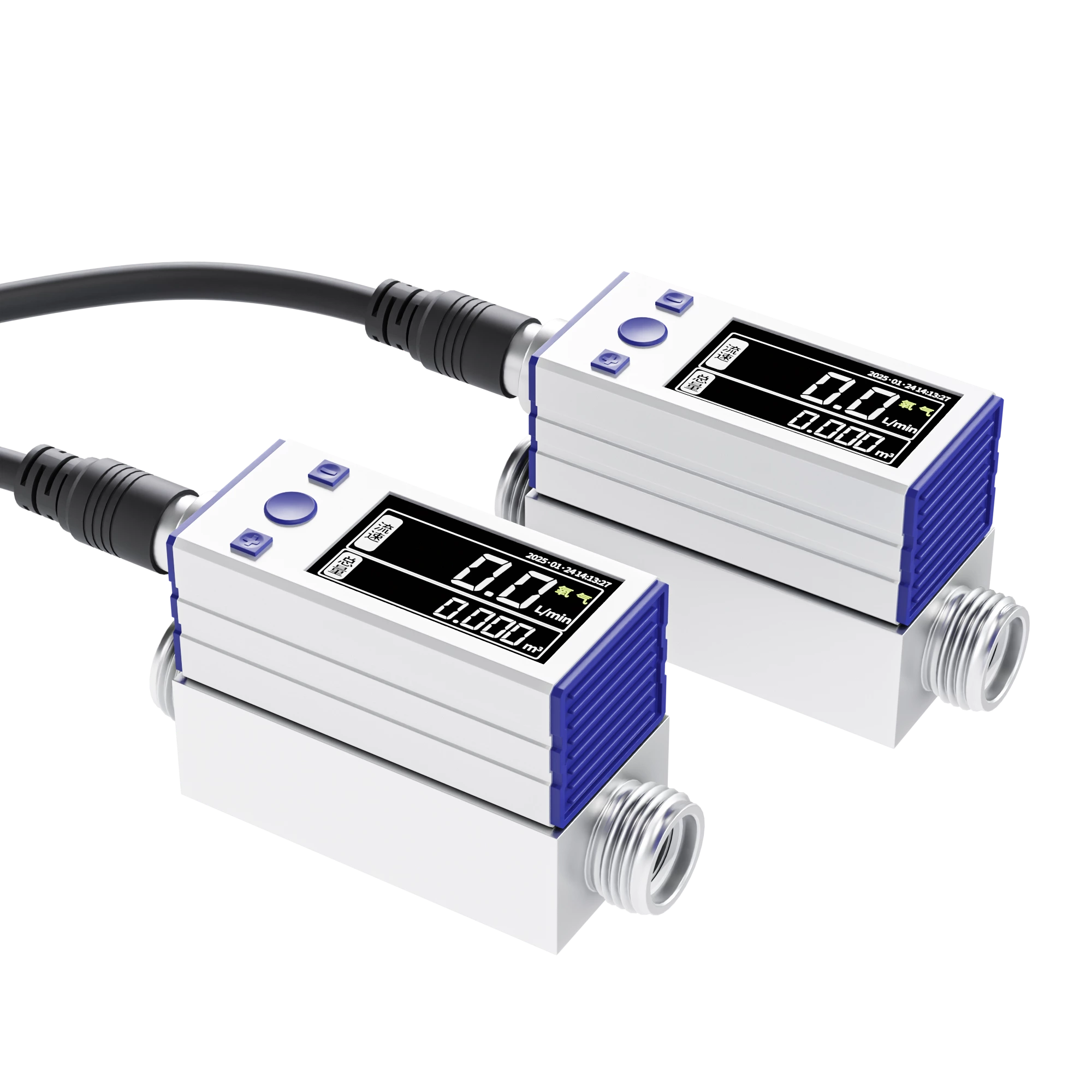

Supmea FTM200 micro gas mass flowmeter
-
NG # 00324-HW-SUPMEA-024
Manufactured by:
Specification
Series Number FTM200 (Micro gas mass flowmeter) Measurement Range 0.2-20L/min to 3-300L/min (Various process connections available based on flow range) Accuracy 1.5 grade Display Type LCD display with 180° rotatable screen Output & Power Supply 4-20mA + pulse + RS485 + flow limit alarm, 24VDC (9-24V; if using 4-20mA, must be powered by 24V) Process Connection Quick connect options from Φ6mm to Φ12mm and M22*1.5/G1/2, materials include copper-nickel and 304SS Housing Material & Protection Class Aluminum alloy housing, IP52 protection (Base 304SS)
Description
The FTM200 Micro Gas Mass Flow Meter offers precise gas flow measurement with a compact design, supporting multiple outputs and real-time zero adjustment. Ideal for medical, oil, chemical, and energy sectors, it features a rotatable LCD display, broad rangeability, and robust connectivity options for easy integration and networked management.
