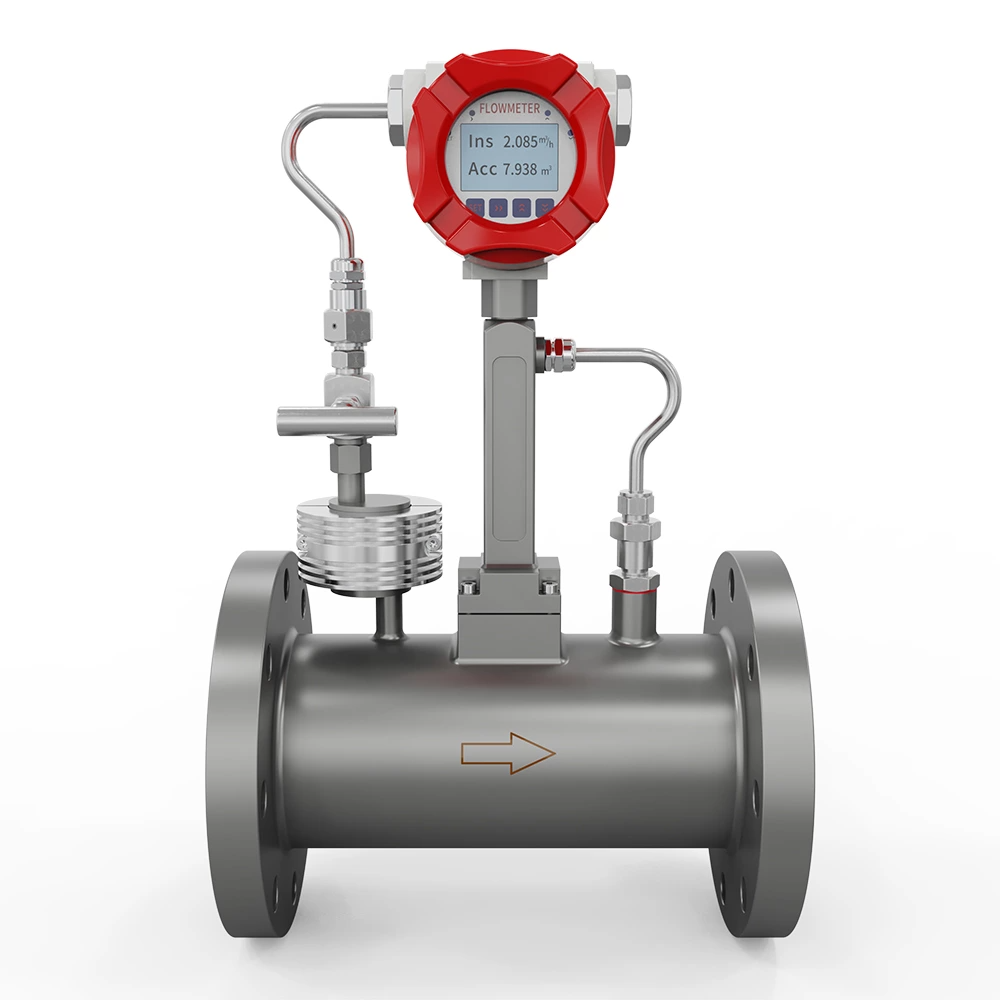

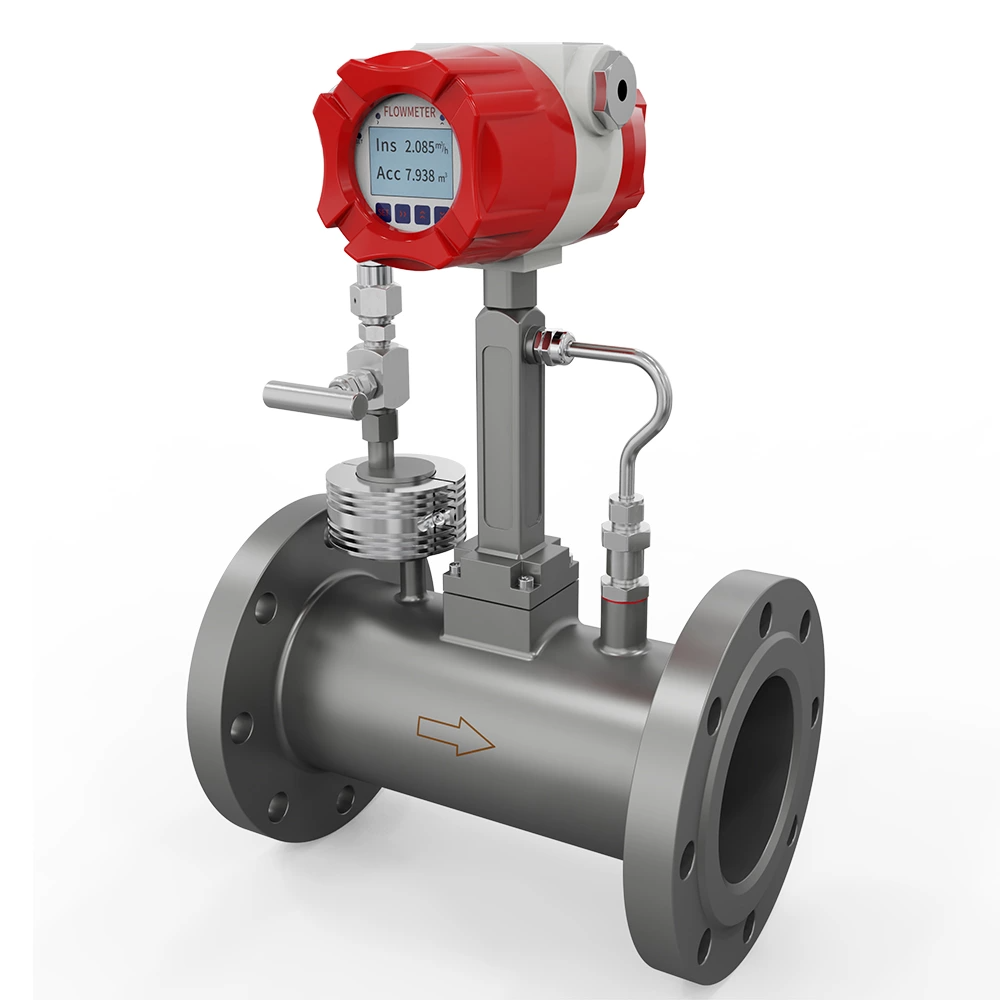

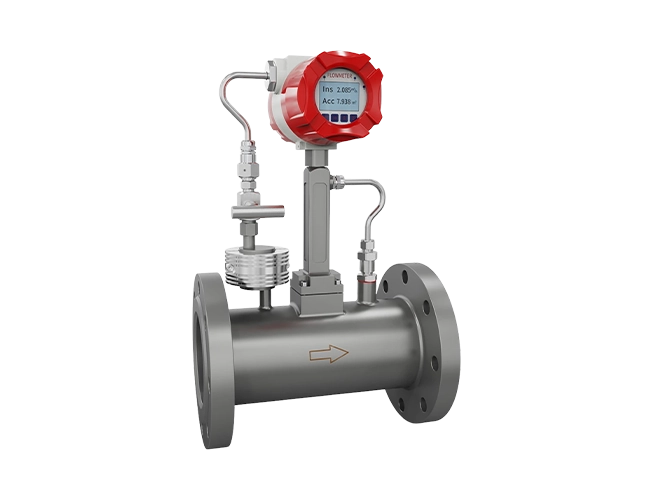

Supmea SUP-LUGB Vortex flowmeter with temperature & pressure compensation

  • NG # 00309-HW-SUPMEA-009

Manufactured by:

This seller generally responds in under 48 hours

Add to favorites | Compare this product

Specification

ProductVortex flowmeter with temperature & pressure compensation
 Model SUP-LUGB
 Diameter nominal DN10~DN500
 Installation Wafer connection: DN10-DN500(priority PN2.5MPa)  Flange connection: DN10-DN80(priority PN2.5MPa);DN100-DN200(priority PN1.6MPa);DN250-DN500(priority PN1.0MPa)
 Accuracy 1.5%, 1.0%
 Range Ratio 8:1
 Medium Temperature -20°C ~ +150°C, -20°C ~ +260°C, -20°C ~ +320°C, -20°C ~ +420°C
 Output signal 4-20mA
 Frequency RS485 communication (Modbus RTU)
 Power supply 24VDC±5%  Li battery(3.6VDC)
 Ingress protection IP65
 Body Materials Stainless shell
 Display 128*64 dot matrix LCD

Description

SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity.
