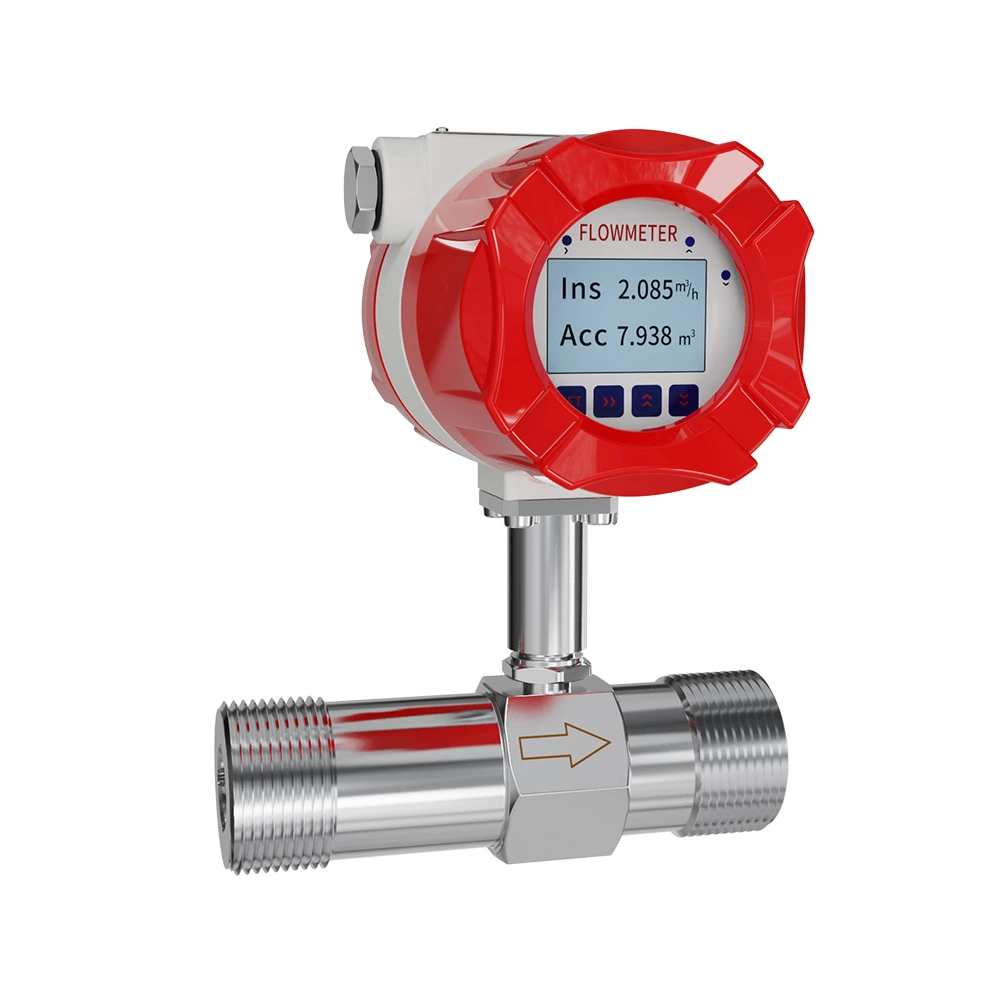

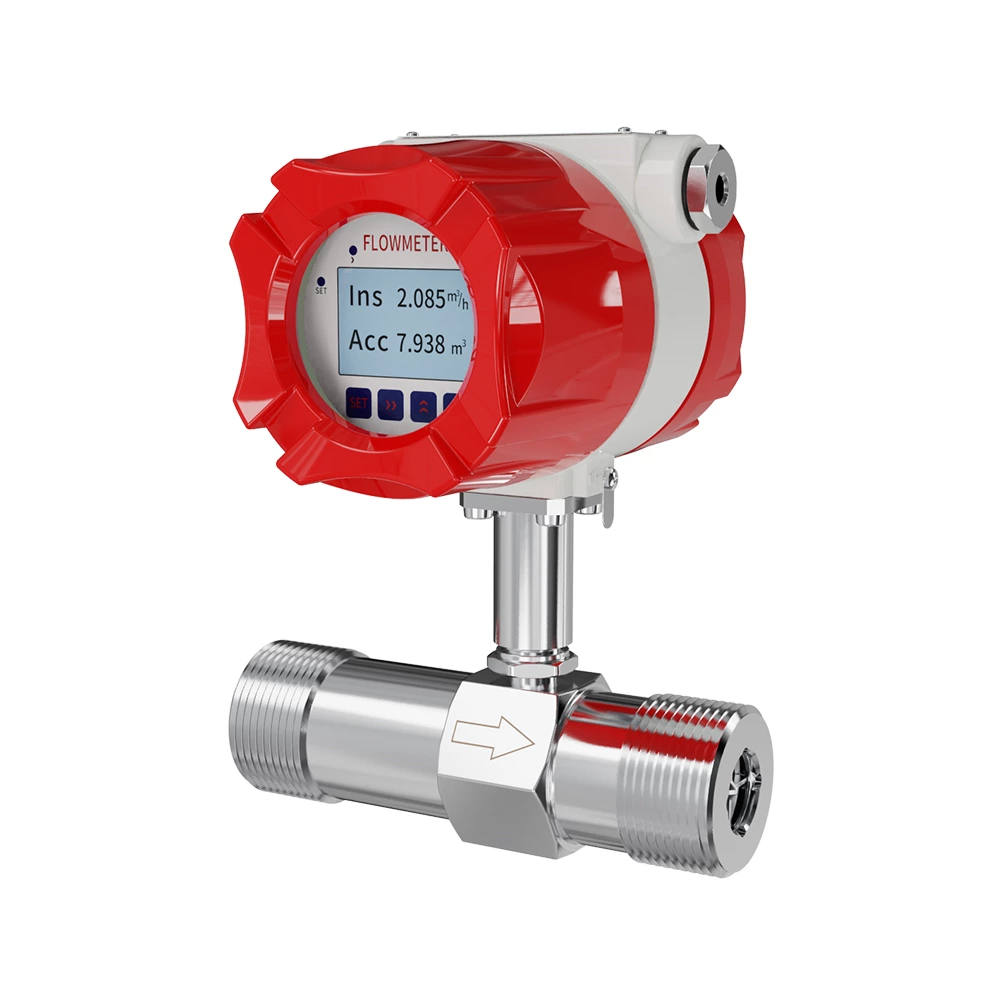

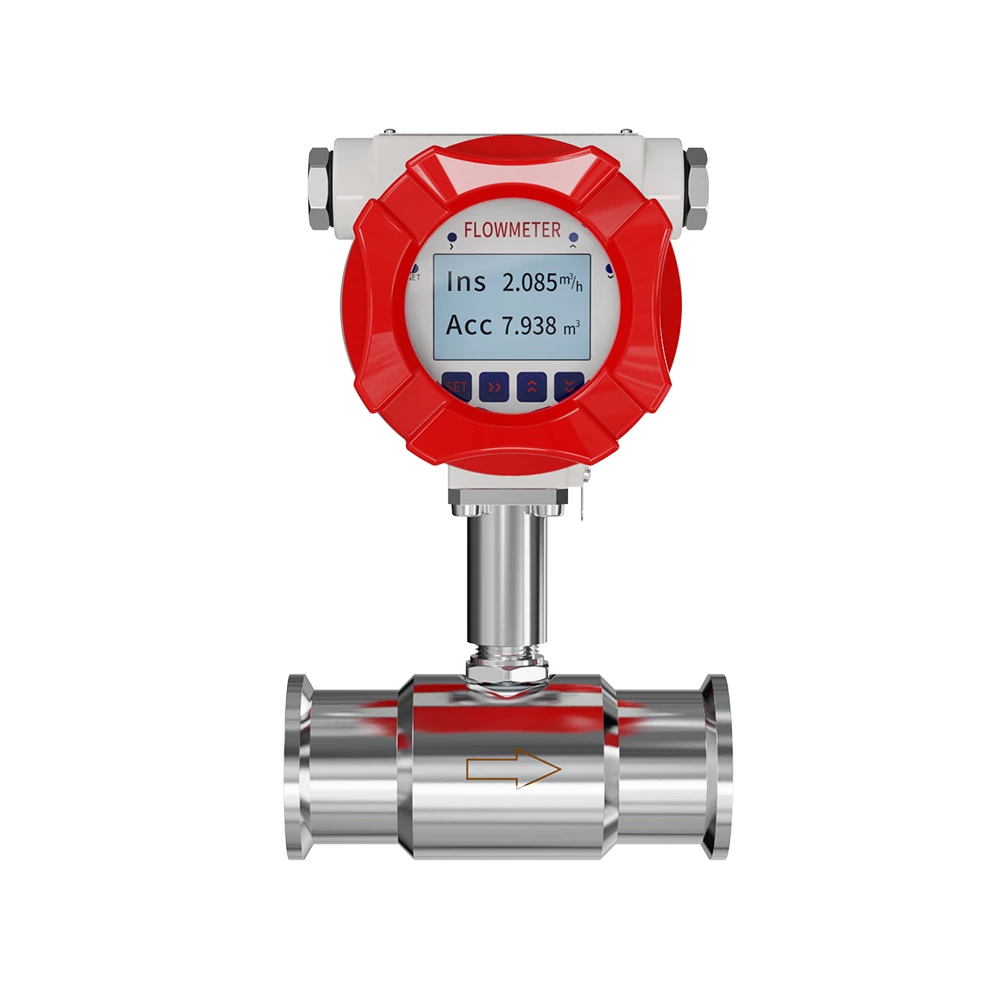

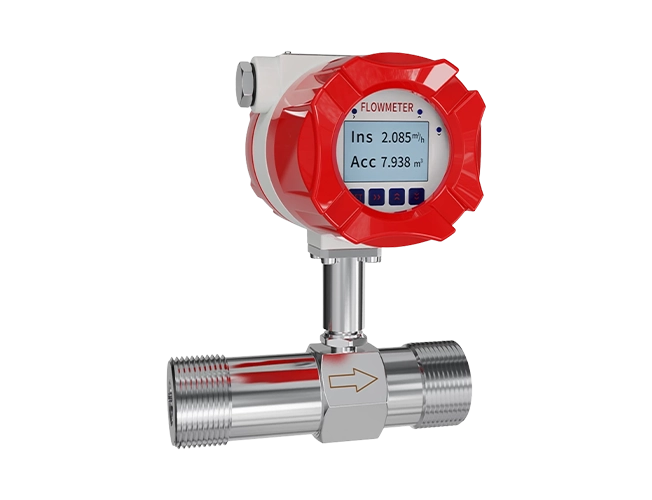

Supmea SUP-LWGY Turbine flowmeter thread connection
-
NG # 00312-HW-SUPMEA-012
Manufactured by:
Specification
Product Turbine flowmeter Model SUP-LWGY Diameter Nominal DN4~DN100 Nominal Pressure 86kPa～106kPa Accuracy 0.5%R, 1.0%R Medium viscosity Less than 5×10-6m2/s for the liquid with >5×10-6m2/s, the flowermeter needs to be calibrated before using Medium Temperature -20℃～＋120℃ Power Supply 3.6V lithium battery; 220VAC; 24VDC Output Signal Pulse, 4-20mA, Modbus, Hart Ingress protection IP65 (IP67, IP68 protocol supply, pulse converter probe IP00)
Description
SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. Threaded type, simple to install and maintain, usually used for small diameter flow measurements: Male:DN4~DN100; female:DN15~DN50
