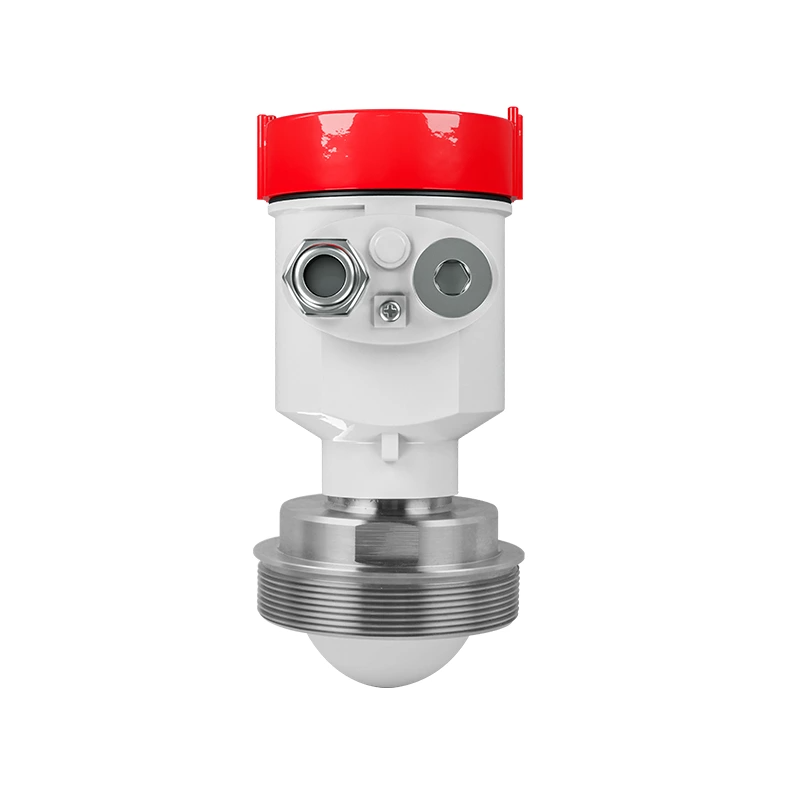

WSR550 76-81GHz Radar level transmitter
-
NG # 00342-HW-SUPMEA-042
Manufactured by:
Specification
Product Radar level meter Model WSR550 Measure range 0.08m~10m / 0.08m~20m / 0.08m~30m / 0.3 m ~ 60m Beam angle 3°/8° Installation Thread, Flange Medium Temperature (-40~80)℃/(-40~150)℃(high temperature customized） Process Pressure -0.1-2MPa Accuracy ±1mm Ingress protection IP67 Frequency Range 76GHz~81GHz，5GHz FMCW bandwidth Signal Output 4-20mA RS485 Power supply (15~28)VDC or 220VAC Communication Modbus/HART Humidity ≤95%RH Enclosure Aluminum alloy, stainless steel Fault output 3.8mA, 4mA, 20mA, 21mA, hold Size Ø100*270mm Weight 2.480Kg/2.995Kg Cable entry M20*1.5 Antenna type Lens antenna/anti-corrosive antenna / flange isolated by quartz Recommended cables AWG18 or 0.75mm² Minimum measured dielectric constant ≥2
Description
WSR550 radar level transmitter supports four-wire and two-wire applications, the product has multiple models, the range can reach 60m. Equipped with a 76-81GHz frequency band, the WSR550 provides superior performance in challenging environments where other level measurement technologies may fail. Its high-frequency signal allows for better penetration through dust, vapor, and foam, ensuring accurate readings even in harsh conditions.
