Testo 300 Smoke Edition Combustion Analyzer Kit with Bluetooth, 4000 ppm
-
NG # 00847-HW-TESTO-047
Manufactured by:

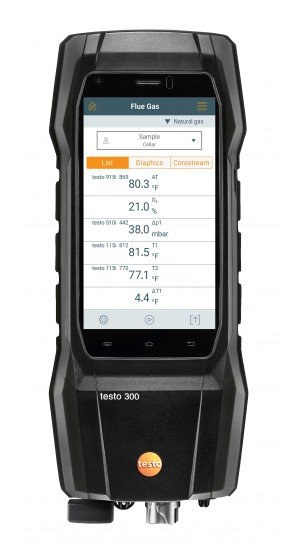

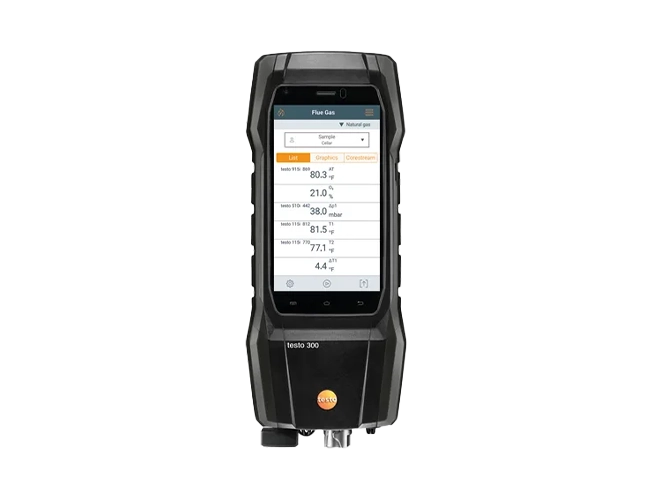

Compact and scratch-resistant, this combustion analyzer works via the large 5" (12.7 cm) touch display embedded in a robust plastic housing that reliably stands up to the rigors of daily use. In addition, it has a measuring range of 0 to 21 volume % for O2 and 0 to 4000 ppm for CO.
Specification
Temperature - Type K TC
| Measuring range | -40° to 2192 °F / -40 to +1200 °C |
| Accuracy | ±0.5 % of mv (Remaining Range) ±0.9 °F (32.0° to 212.0 °F) / ±0.5 °C (0.0 to +100.0 °C) |
| Resolution | ±1 °F (Remaining Range) / 1 °C (Remaining Range) 0.1 °F (-40° to 1831.8 °F) / 0.1 °C (-40 to +999.9 °C) |
Differential Pressure
| Measuring range | -40 to +80 InH₂O / -100 to +200 hPa |
| Accuracy | ±1.5 % of mv (+40.0 to +80 InH₂O) / ±1.5 % of mv (+100.1 to +200 hPa) ±1 % of mv (+20.0 to +40.0 InH₂O) / ±1 % of mv (+50.1 to +100.0 hPa) ±0.2 InH₂O (0 to +20.0 InH₂O) / ±0.5 hPa (0 to +50.0 hPa) |
| Resolution | 0.00 InH₂O / 0.01 hPa |
Flue gas O₂
| Resolution | 0.1 Vol.% |
Flue gas COlow
| Measuring range | 0 to 500 ppm |
| Accuracy | ±2 ppm (40 to +500 ppm) ±5 % of mv Remaining Range |
| Resolution | 0.1 ppm |
Flue Gas NO
| Measuring range | 0 to 3000 ppm |
| Accuracy | ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm) 5 to 0 ppm |
| Resolution | 1 ppm |
Flue gas NOlow
| Measuring range | 0 to 300 ppm |
| Accuracy | ±5 % of mv (40 to 300 ppm) ±2 ppm (0 to +39.9 ppm) |
| Resolution | 0.1 ppm |
Flue Gas Draft
| Measuring range | -4.00 to +16 InH₂O / -9.99 to +40 hPa |
| Accuracy | ±0.002 InH₂O (+0 to +0.0 InH₂O) / ±0.005 hPa (+0 to +0.1 hPa) ±0.01 InH₂O (0.0 to +1.20 InH₂O) / ±0.02 hPa (0.1 to +3.00 hPa) ±1.5 % of mv (1.20 to +16 InH₂O) / ±1.5 % of mv (3.01 to +40 hPa) |
| Resolution | 0.000 InH₂O (0 to 0.0 InH₂O) / 0.001 hPa (0 to 0.1 hPa) 0.00 InH₂O (Remaining Range) / 0.01 hPa (Remaining Range) |
Efficiency (calculated)
| Measuring range | 0 to 120 % |
| Resolution | 0.1 % |
Flue Gas loss (calculated)
| Measuring range | 0 to 99.9 % |
| Resolution | 0.1 % |
Flue Gas CO₂ calculation (calculated from O₂)
| Measuring range | Display range 0 to CO₂ max |
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
Flue gas CO (without H₂-compensation)
| Measuring range | 0 to 4000 ppm |
| Accuracy | ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) ±20 ppm (0 to 400 ppm) |
| Resolution | 1 ppm |
Ambient CO
| Measuring range | 0 to 2000 ppm |
| Accuracy | ±10 % of mv (101 to 2000 ppm) ±10 ppm (0 to 100 ppm) |
| Resolution | 1 ppm |
General technical data
| Operating humidity | 15 to 90 %rH non-condensing |
| Weight | approximately 28.2 oz. / approximately 800 g |
| Dimensions | 9.6 (including probe connection) x 3.9 x 2.3 in. (LxWxH) / 244 (including probe connection) x 98 x 59 mm (LxWxH) |
| Operating temperature | 23° to 113 °F / -5 to +45 °C |
| Protection class | IP40 |
| Product colour | black/orange |
| Display type | 5.0" touch display, HD 1280*720 pixels, IPS (160 k) |
| Power supply | Rechargeable battery, USB mains unit |
| Warranty conditions | https://www.testo.com/guarantee |
| Authorizations | TÜV-tested according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3 |
| Guarantee | Gas sensors (O₂, CO) 48 months; NO, NOlow, COlow sensor 24 months; rechargeable battery: 12 months; Thermocouple 12 months |
| Memory | 1,000,000 measuring values |
| Battery life | 10 h |
| Storage battery type | Lithium ion battery |
| Storage temperature | -4° to 122 °F / -20 to +50 °C |
| Charging temperature | 32° to 113 °F / 0 to +45 °C |
Differential Pressure 4 Pa measurement - Piezoresistive
| Measuring Range | -0 to +0 InH₂O / -50 to +50 Pa |
|---|---|
| Accuracy | ±3 % of mv (Remaining Range) ±0.0 InH₂O (< 0 InH₂O) / ±0.3 Pa (< 10 Pa) |
| Resolution | 0.0 InH₂O / 0.1 Pa |
Description
Impressive measuring technology and quality
- O2 sensor and CO sensor up to 4,000 ppm
- testo Bluetooth® Connector (0554 3004)
- Longer sensor service life thanks to automatic sensor protection
- Integrated fine pressure
- Versatile probes and fast probe changes: take advantage of quick-change probes and the multi-functional handle for attaching a variety of probe shafts (each available to order separately). You can for instance use longer probe shafts for flue gas pipes with larger diameters or flexible probes for difficult-to-access measuring points
- Optionally available probes and accessories for further measuring tasks, such as gas flow pressure measurement, gas pipe testing, differential temperature measurement and ambient CO measurement
