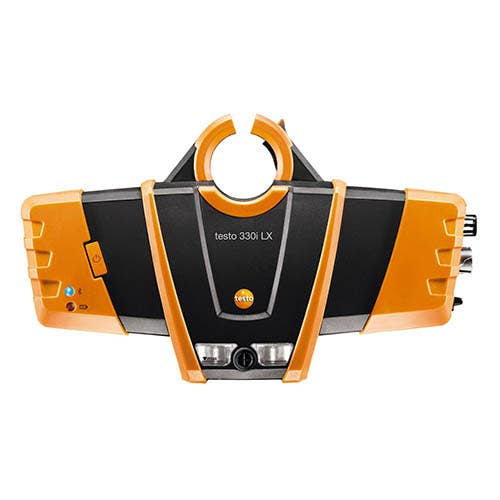

testo 330i advanced set - flue gas analyzer set
-
NG # 00803-HW-TESTO-003
Manufactured by:

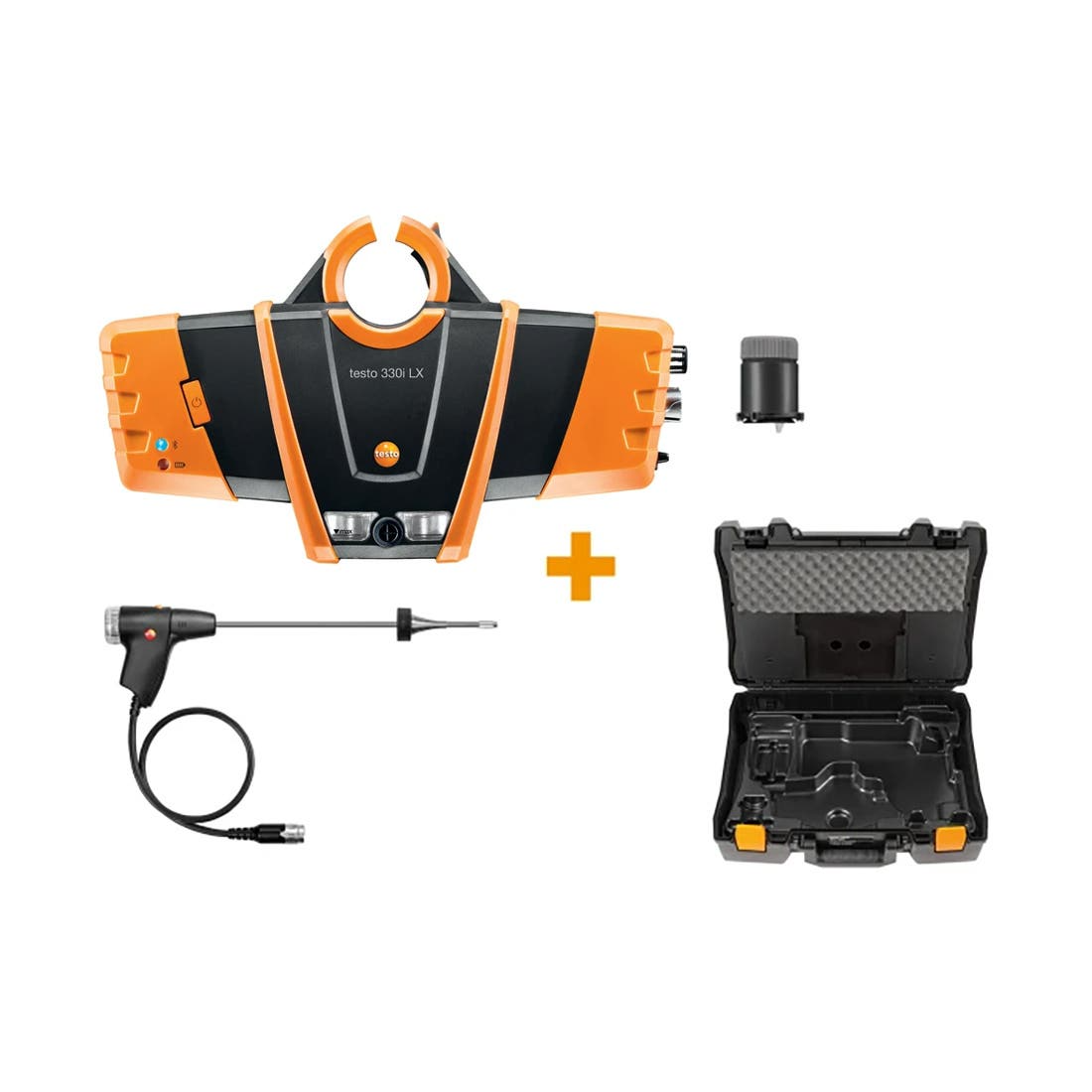

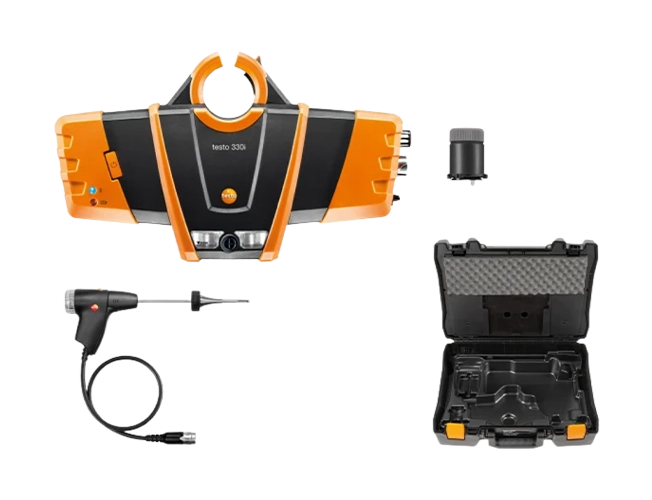

The testo 330i flue gas analyzer advanced set will enable you to overcome all the challenges that crop up when commissioning and servicing heating systems. The testo 330i advanced set contains the flue gas analyzer, a flue gas probe and a temperature probe, along with practical accessories.
Specification
±0.5 hPa (0.0 to +50.0 hPa) ±1 % of mv (+50.1 to +100.0 hPa) ±1.5 % of mv (Remaining Range) ±10 ppm or ±10 % of mv (0 to 200 ppm) ±20 ppm or ±5 % of mv (201 to 2000 ppm) ±10 % of mv (2001 to 8000 ppm) ±5 ppm (0 to 100 ppm) ±5 % of mv (101 to 2000 ppm) ±10 % of mv (2001 to 3000 ppm)Weight 720 g (excluding battery) Dimensions 270 x 160 x 57 mm Operating temperature -5 to +45 °C Power supply Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional) System requirements requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0 Maximum memory 500000 readings Storage temperature -20 to +50 °C Measuring range 0 to 300 hPa Accuracy Resolution 0.1 hPa Measuring range 0 to 21 Vol.% Accuracy ±0.2 Vol.% Resolution 0.1 Vol.% Measuring range 0 to 8000 ppm Accuracy Resolution 1 ppm Measuring range 0 to 30000 ppm Accuracy ±200 ppm or ±20 % of mv (0 to 30000 ppm) Resolution 1 ppm Measuring range 0 to 3000 ppm Accuracy Resolution 1 ppm
Option
| Measuring range | -9.99 to +40 hPa |
| Accuracy | ±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa) ±0.03 hPa (+0.61 to +3.00 hPa) ±1.5 % of mv (3.01 to +40.00 hPa) (the greater value applies) |
| Resolution | 0.01 hPa |
| Measuring range | -40 to +1200 °C |
| Accuracy | ±0.5 °C (0.0 to +100.0 °C) ±0.5 % of mv (Remaining Range) |
| Resolution | 0.1 °C (-40 to +999.9 °C) 1 °C (Remaining Range) |
dependent on the thermocouple
| Measuring range | 0 to 120 % |
| Resolution | 0.1 % |
| Measuring range | 0 to 99.9 % |
| Resolution | 0.1 % |
| Measuring range | Display range 0 to CO₂ max |
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
Description
At the core of the innovative testo 330i flue gas analyzer is the measuring technology of the preceding model testo 330 LL, which has been proven in practice a thousand times over. The outstanding technical features of this flue gas analyzer, such as its user-replaceable long-life sensors, integrated draught and gas zeroing or CO/fresh air dilution have been combined with a revolutionary new method of operation.
