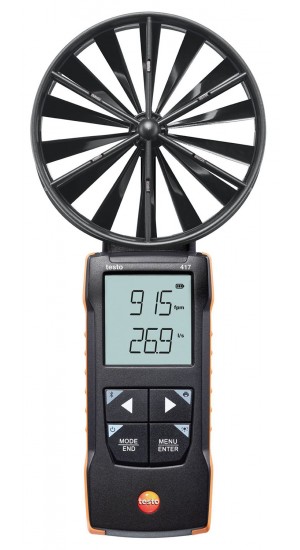

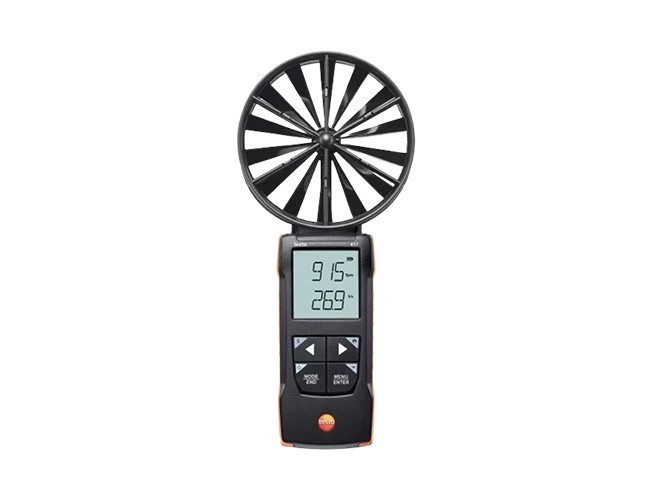

Testo 417 Digital Vane Anemometer, 59.1 to 3937 fpm, 0 to 58,857 CFM
-
NG # 00849-HW-TESTO-049
Manufactured by:
Quick, precise, and easy to use, this vane anemometer provides measurements for flow, volume flow, and temperature in air inlets and outlets of air conditioning and ventilation systems. In addition, the Smart App helps you to adjust balanced commercial and residential ventilation systems efficiently.
Specification
Vane Measuring range:
59.1 to 3937 fpm
0.3 to 20 m/s
Accuracy (±1 digit):
±(19.7 fpm + 1.5% of mv)
±(0.1 m/s + 1.5% of mv)
Resolution:
0.01 fpm
0.01 m/sVolume Flow Calculation Measuring range:
0 to 58,857 CFM
0 to 99,999 m3/h
Resolution:
0.1 CFM (0 to 58.8 CFM); 1 CFM (remaining measuring range)
0.1 m3/h (0 to 100 m3/h); 1 m3/h (remaining measuring range)NTC Measuring range: 32 to 122°F/0 to 50°C
Accuracy (±1 digit): ±0.9°F/±0.5°C
Resolution: 0.1°F/0.1°CMeasurement Parameters m/s, fpm, °F, °C, m3/h, cfm, l/s Operating/Storage Temperature -4 to 122°F (-20 to 50°C) Protection Class Measuring instrument: IP40
Probe: IP20Housing Material ABS + PC/TPE Battery Type: 3 x AA
Life: 50 hoursDimensions 9.3 x 4.3 x 1.8" (236.2 x 109.2 x 45.7 mm) Weight 0.54 lbs (245 g)
Description
Made to make it easy, this compact measuring instrument delivers precise readings whenever you need them. In addition, it is fast, flexible, user-friendly, and connects to your smartphone with the Smart App, which supports you in configuring the measuring instrument, takes over display, storage and documentation of the measured values, and turns your smartphone into a second display. Measuring couldn't be any easier than this!
Features
- Easy, fast, and precise measurement of flow, volume flow, and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the Smart App
- Fast in-app configuration, graph history, second screen and measurement data memory in the Smart App
- Timed and point mean value calculation
- Durability through compact design with robust housing
