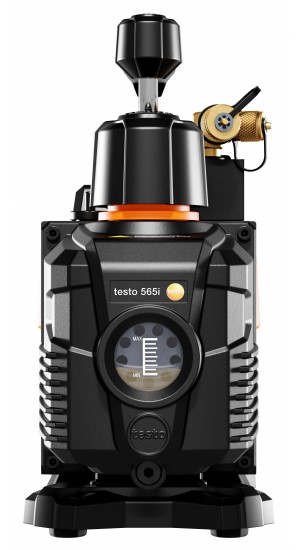

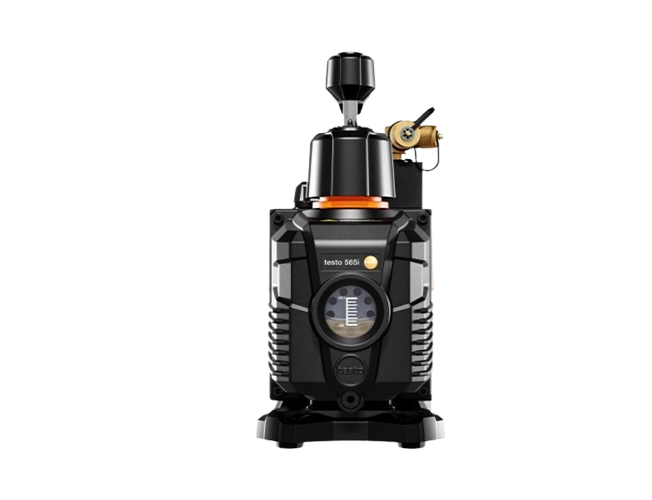

Testo 565i Smart Vacuum Pump with integrated decay test, 7 CFM

  • NG # 00848-HW-TESTO-048

Manufactured by:

This seller generally responds in under 48 hours

Designed for automated evacuations on refrigeration systems and heat pumps, this vacuum pump efficiently performs decay tests with a 7 CFM 198 l/min flow rate. Link to the Smart App to configure measurements, live monitoring, and manage data. Moreover, this pump is safely compatible with class A2L and A3 flammable refrigerants.

Specification

Flow Rate7 CFM/198 l/min
Ultimate Vacuum15 micrometers
RefrigerantA2L/A2/A3 certified
Connection Sizes1/4, 3/8, 1/2" SAE
Pump TypeRotary vane pump
Number Of StagesTwo-stage pump
OilCompabiIity: ISO VG 46
Maximum capacity: 20.6 fl oz (610 ml)
Voltage230 V 50 Hz
CurrentRated: 1.9 A
Maximum: 4.8 A
SoundPressure level at working station: 67.13 Db(A), K = 3 Db(A)
Power level: 76.29 Db(A), K = 3 Db(A)
BluetoothBle 5.0: 98' (30 m) distance
App System RequirementsAndroid 8.0
RohsYes
Operating TemperatureOperating temperature: 41 to 104°F (5 to 40°C)
Storage and transport temperature: 14 to 122°F (-10 to 50°C)
Power800 W
Plug: 110 V/50 Hz
Dimension14.8 x 5.9 x 12.4" (375 x 150 x 314 mm)
Shipping: 17.7 x 8.9 x 10.5" (44.9 x 22.6 x 26.6 cm)
Weight24.9 lbs (11.3 kg)

Description

Introducing the innovative smart vacuum pump, when paired with the smart vacuum probe (sold separately), it can automatically perform evacuations and integrated decay tests. Set your desired vacuum target, and once the target is complete, the smart pump will automatically stop to begin the vacuum decay test. Moreover, this feature ensures no leaks in the refrigeration circuit and can be seen live through the Smart App.

Thanks to Bluetooth wireless connection, automatically pair this pump to vacuum probes, manifolds, and the Smart App for easy configuration, control, and evacuation monitoring. Control everything from a distance with the included smart app with/or an optional manifold (sold separately) that doubles as an additional display. In addition, this smart pump reduces workload by automating the entire process, from evacuation to holding tests, allowing users to save time.

Maximum safety guaranteed, oil changes are made easy by the clear glass indicator at the pump's front, ensuring the oil level is maintained and clean. In case of power failure, this smart pump has an auto shutoff built-in and will automatically close the valve to prevent vacuum loss. In addition, once the power comes back on, the pump can pick up where it left off and keep going.
